BATTERY

GS750EC 1979 (N) USA (E03)

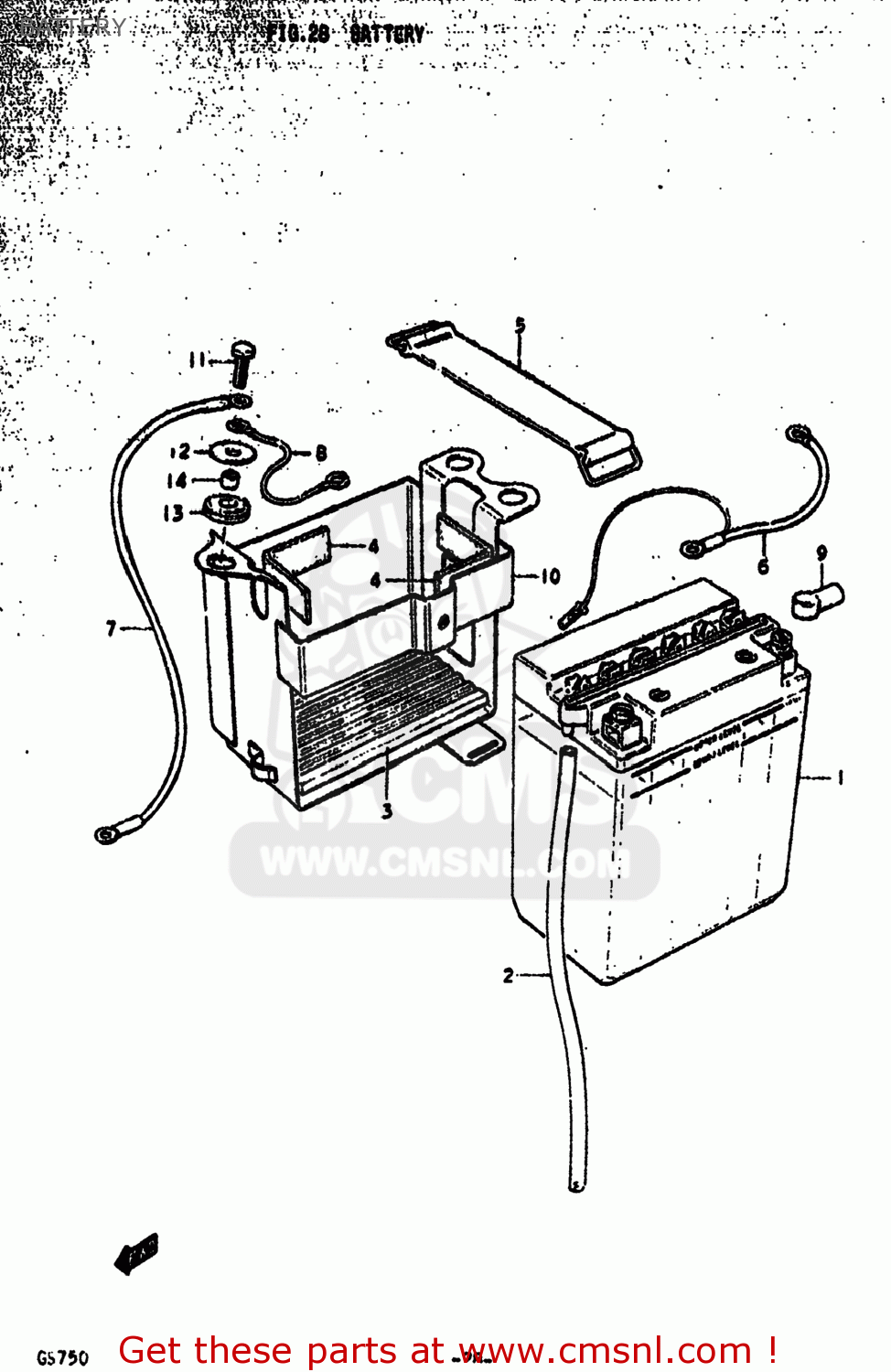

Battery diagram GS750EC 1979 (N) USA (E03)

BATTERY GS750EC 1979 (N) USA (E03)
BATTERY GS750EC 1979 (N) USA (E03)
BATTERY GS750EC 1979 (N) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3361031010
ref: 1
33610-49210
BATTERY ASSEMBLY
€ 110.00
2
3368031003
ref: 2
33680-16A10
HOSE,BATTERY EXHAUST
€ 4.50
3
3365131000
ref: 3
PROTECTOR,BATTERY
3365131000
€ 29.00
4
3365229100
ref: 4
33651-37000
PROTECTOR,20X9
€ 5.00
5
0946200007
ref: 5
BAND
0946200007
€ 5.00
6-1
3382045000
ref: 6-1
33820-44B01
WIRE,BATTERY PLUS
€ 19.50
6-2
3382045001
ref: 6-2
33820-44B01
WIRE,BATTERY PLUS
3382045001
€ 19.50
7
3385006200
ref: 7
33850-03201
WIRE,STARTER MOTOR LEAD
€ 8.50
8
3685226600
ref: 8
36851-02331
WIRE
3685226600
€ 6.00
9
3362445000
ref: 9
CAP,TERMINAL
3362445000
€ 5.50
10-1
4154045000
ref: 10-1
41540-45001
HOLDER,BATTERY
€ 27.00
10-2
4154045001
ref: 10-2
HOLDER,BATTERY
€ 27.00
10-3
4154045020
ref: 10-3
HOLDER,BATTERY
€ 28.00
11
0110706168
ref: 11
01500-06167
BOLT, UPPER
€ 3.00
12
0916006012
ref: 12
09160-06054
WASHER(6,5X22X1.6)
€ 2.00
13
0932008013
ref: 13
CUSHION
0932008013
€ 4.00
14
0918006001
ref: 14
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
