REAR MASTER CYLINDER (GS750C
GS750EC 1979 (N) USA (E03)

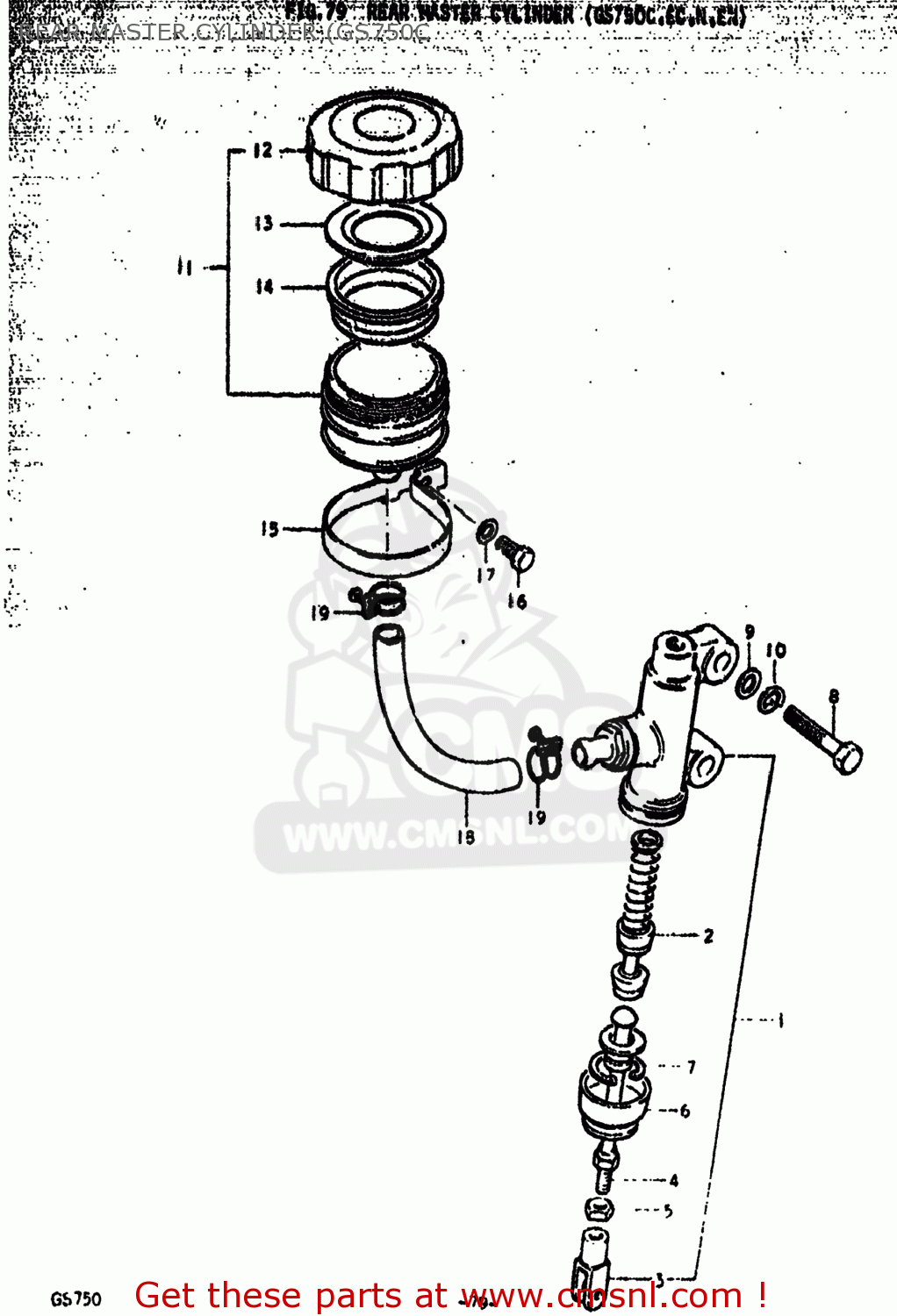

Rear master cylinder (gs750c diagram GS750EC 1979 (N) USA (E03)
REAR MASTER CYLINDER (GS750C GS750EC 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960047000
ref: 1
69600-47011
CYLINDER ASSEMBLY,REAR MASTER
€ 182.00
2
6960045810
ref: 2
69600-45820
PISTON/CUP SET
€ 53.00
3
6969245001
ref: 3
69692-34300
YOKE
€ 11.00
4
6967045000
ref: 4
69670-45001
ROD,PUSH
€ 18.50
5
0831012088
ref: 5
08310-00087
NUT
€ 2.00
6
6969145000
ref: 6
69691-45001
BOOT
€ 6.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
0110708308
ref: 8
01500-08307
BOLT (8X30)
€ 2.50
9
0832211088
ref: 9
08322-01087
WASHER
€ 2.00
10
0832121088
ref: 10
08321-01087
LOCK WASHER
€ 2.00
11-1
6974047010
ref: 11-1
69740-470V0
TANK ASSEMBLY,RESERVOIR
€ 41.00
11-2
6974047011
ref: 11-2
69740-470V0
TANK ASSEMBLY,RESERVOIR
€ 41.00
12-1
5966933602
ref: 12-1
59669-07D00
CAP
€ 16.50
12-2
5966933603
ref: 12-2
59669-07D00
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
€ 8.50
15
0940251601
ref: 15
09402-51602
CLAMP
€ 6.50
16
0110706168
ref: 16
01500-06167
BOLT, UPPER
€ 3.00
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
6973145000
ref: 18
51241-85X50
HOSE,RESERVOIR TANK
€ 34.00
19
0940016301
ref: 19
09400-16304
CLAMP
€ 4.50
