HEADLAMP
GS750EN 1979 (N) USA (E03)

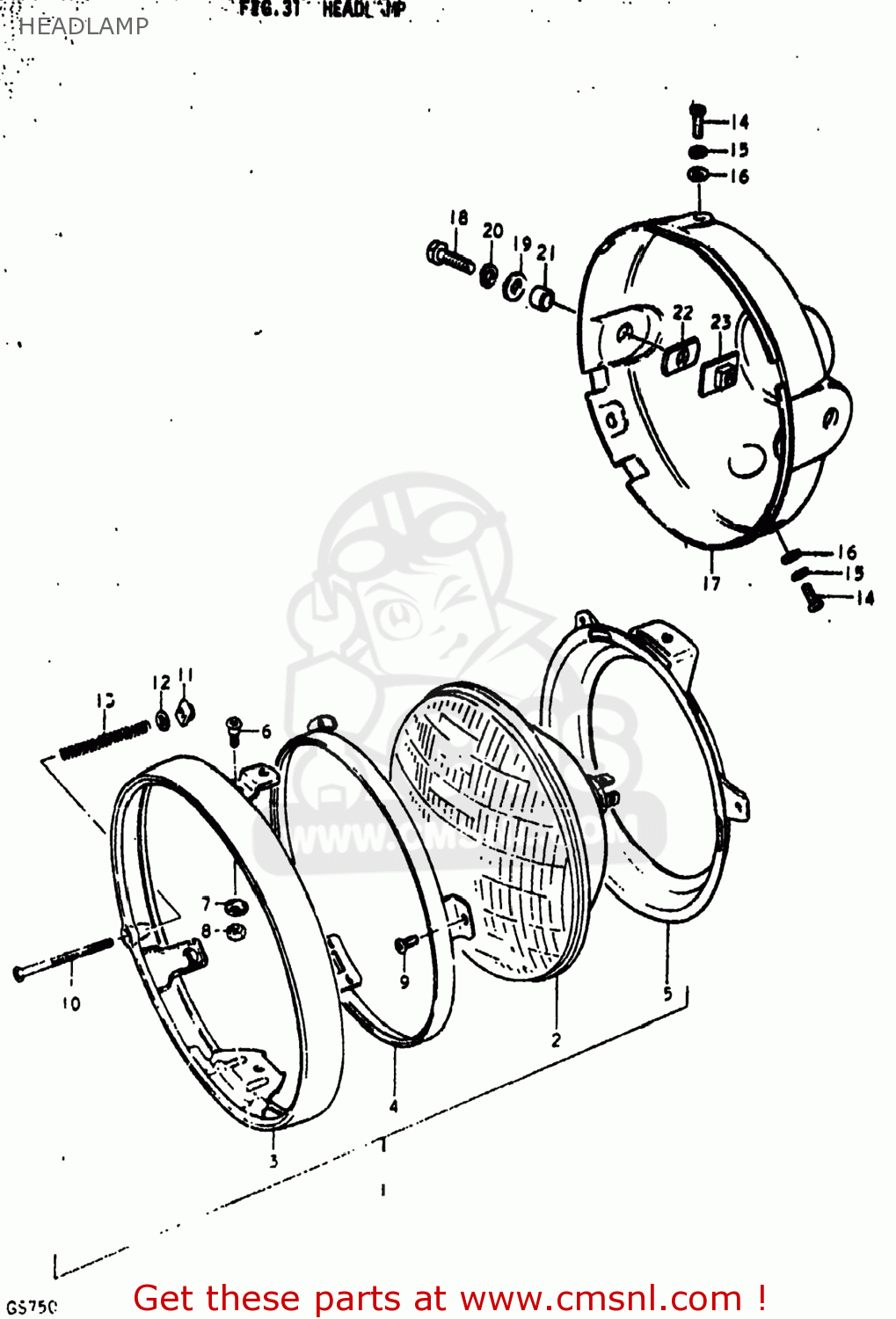

Headlamp diagram GS750EN 1979 (N) USA (E03)
HEADLAMP GS750EN 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510045600
ref: 1-1
35100-45601
HEADLAMP ASSEMBLY
€ 150.00
1-2
3510045601
ref: 1-2
LAMP ASSEMBLY,HEAD
€ 150.00
2-1
3512145600
ref: 2-1
35121-45601
LAMP UNIT
€ 61.00
2-2
3512145601
ref: 2-2
LAMP UNIT
€ 61.00
3
3511145600
ref: 3
RIM
€ 57.50
4
3512745600
ref: 4
RETAINER
€ 39.00
5
3513045600
ref: 5
RING,HEADLAMP UNIT
€ 35.00
6
3513625611
ref: 6
35136-35400
SCREW
€ 4.00
7
3513345600
ref: 7
SPACER
€ 3.50
8
3513525611
ref: 8
08316-1005A
NUT,ADJUSTING
€ 2.50
9
0211203088
ref: 9
02112-03087
SCREW
€ 1.50
10
3515127630
ref: 10
35151-45230
SCREW,HEADLAMP ADJUST
€ 3.50
11
3513545600
ref: 11
NUT
€ 3.00
12
3515727630
ref: 12
WASHER
€ 2.50
13
3515445600
ref: 13
SPRING,HEADLAMP ADJUST
€ 3.50
14
0912505022
ref: 14
09125-05115
SCREW
€ 3.50
15
0916205003
ref: 15
09162-05002
WASHER,LOCK
€ 2.00
16
0916906021
ref: 16
WASHER
€ 2.50
17
5181145002291
ref: 17
HOUSING,HEADLAMP(BLACK)
€ 69.50
18
0120408257
ref: 18
BOLT
€ 2.00
19
0832211086
ref: 19
08322-0108A
WASHER 8MM
€ 1.50
20
0832121088
ref: 20
08321-01087
LOCK WASHER
€ 2.00
21
0918008030
ref: 21
09180-08187
SPACER (8.8X12X7)
€ 3.50
22
0932912002
ref: 22
CUSHION
€ 3.00
23
5186045000
ref: 23
PLATE,HEADLAMP HOUSING
€ 2.00
