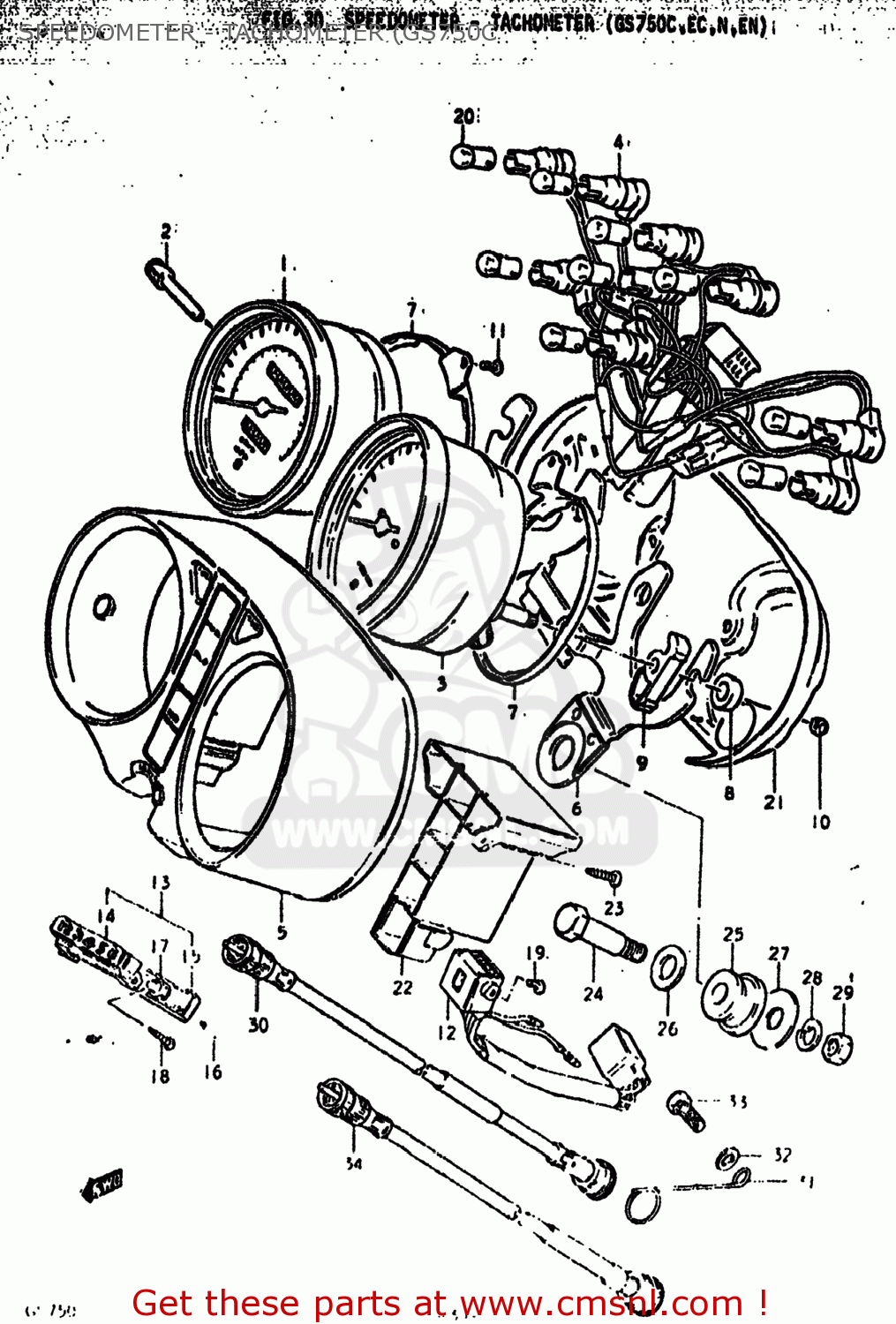

SPEEDOMETER - TACHOMETER (GS750C - GS750EN 1979 (N) USA (E03)

ref

part #

description

quantity

0-1

3410045030
ref: 0-1
34100-45034

SPEEDOMETER ASSEMBLY

€ 375.00

0-2

3410045031
ref: 0-2
34100-45034

SPEEDOMETER ASSEMBLY

€ 375.00

1-1

3411045030
ref: 1-1
34110-47130

SPEEDOMETER ASSEMBLY

€ 89.50

1-2

3411045031
ref: 1-2
34110-45132

SPEEDOMETER ASSEMBLY

€ 85.50

2

3498045020
ref: 2

KNOB

€ 4.50

3-1

3421045602
ref: 3-1
34210-45604

TACHOMETER

€ 262.00

3-2

3421045603
ref: 3-2
34210-45604

TACHOMETER

€ 262.00

4-1

3417345620
ref: 4-1

SOCKET,METER

€ 38.50

4-2

3417345621
ref: 4-2

SOCKET,METER

€ 48.50

5-1

3410047820
ref: 5-1
34150-47820

CASE SET,METER

€ 86.50

5-2

3415045100
ref: 5-2

CASE

€ 99.50

6

3495147020
ref: 6

BRACKET,COMBINATION METER

€ 23.50

7

3495345020
ref: 7

PLATE,METER,UNDER

€ 20.00

8

3495645020
ref: 8

CUSHION,METER (A)

€ 3.00

9

3495545020
ref: 9

CUSHION,METER (B)

€ 2.50

10

0831311057
ref: 10
08313-1005A

NUT

€ 1.50

11

0211104087
ref: 11
02112-04087

SCREW

€ 1.50

12

3645045620
ref: 12

INDICATOR ASSEMBLY,GEAR POSITION

€ 145.00

13

3645045100
ref: 13
36450-49401

INDICATOR ASSEMBLY,GEAR POSITION

€ 117.00

14

3645245100
ref: 14

CASE,GEAR INDICATOR

€ 14.50

15

3645445100
ref: 15

COVER,LWR

€ 7.00

16

3645645100
ref: 16
03511-03146

SCREW,GEAR INDICATOR

€ 2.00

17

0947112071
ref: 17

BULB(14V1.12W)

€ 5.00

18

3645745100
ref: 18

SCREW

€ 2.00

19

3649147020
ref: 19

NO PRODUCT DESCRIPTION AVAILABLE

€ 1.00

20

0947112001
ref: 20

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

21-1

3496145020
ref: 21-1

PLATE,UNDER

€ 99.00

21-2

3496145021
ref: 21-2

COVER,UNDER

€ 99.00

22-1

3638247020
ref: 22-1

CASE,PILOT BOX,INNER

€ 31.00

22-2

3638245100
ref: 22-2

CASE,PILOT BULB

€ 10.00

23

3649247020
ref: 23
03211-0412A

SCREW

€ 1.50

24

0911108031
ref: 24

BOLT(8X31)

€ 4.00

25

3495631000
ref: 25
34956-31001

CUSHION,METER

€ 4.50

26

0832221108
ref: 26
08322-01107

WASHER

€ 2.50

27

0916008007
ref: 27
09160-08127

WASHER (8.7X22X2)

€ 2.00

28

0832121088
ref: 28
08321-01087

LOCK WASHER

€ 2.00

29

0831012088
ref: 29
08310-00087

NUT

€ 2.00

30

3491016432
ref: 30
34910-44400

CABLE ASSEMBLY,SPEEDOMETER

€ 27.50

31

3493837000
ref: 31

GUIDE,SPEEDOMETER CABLE

€ 14.50

32

0832211068
ref: 32
08322-0106B

WASHER 6MM

€ 2.00

33

0110706168
ref: 33
01500-06167

BOLT, UPPER

€ 3.00

34-1

3494045031
ref: 34-1
34940-45212

CABLE ASSEMBLY,TACHOMETER

€ 18.50

34-2

3494045032
ref: 34-2
34940-45212

CABLE ASSEMBLY,TACHOMETER

€ 18.50

SPEEDOMETER - TACHOMETER (GS750C

all assemblies
