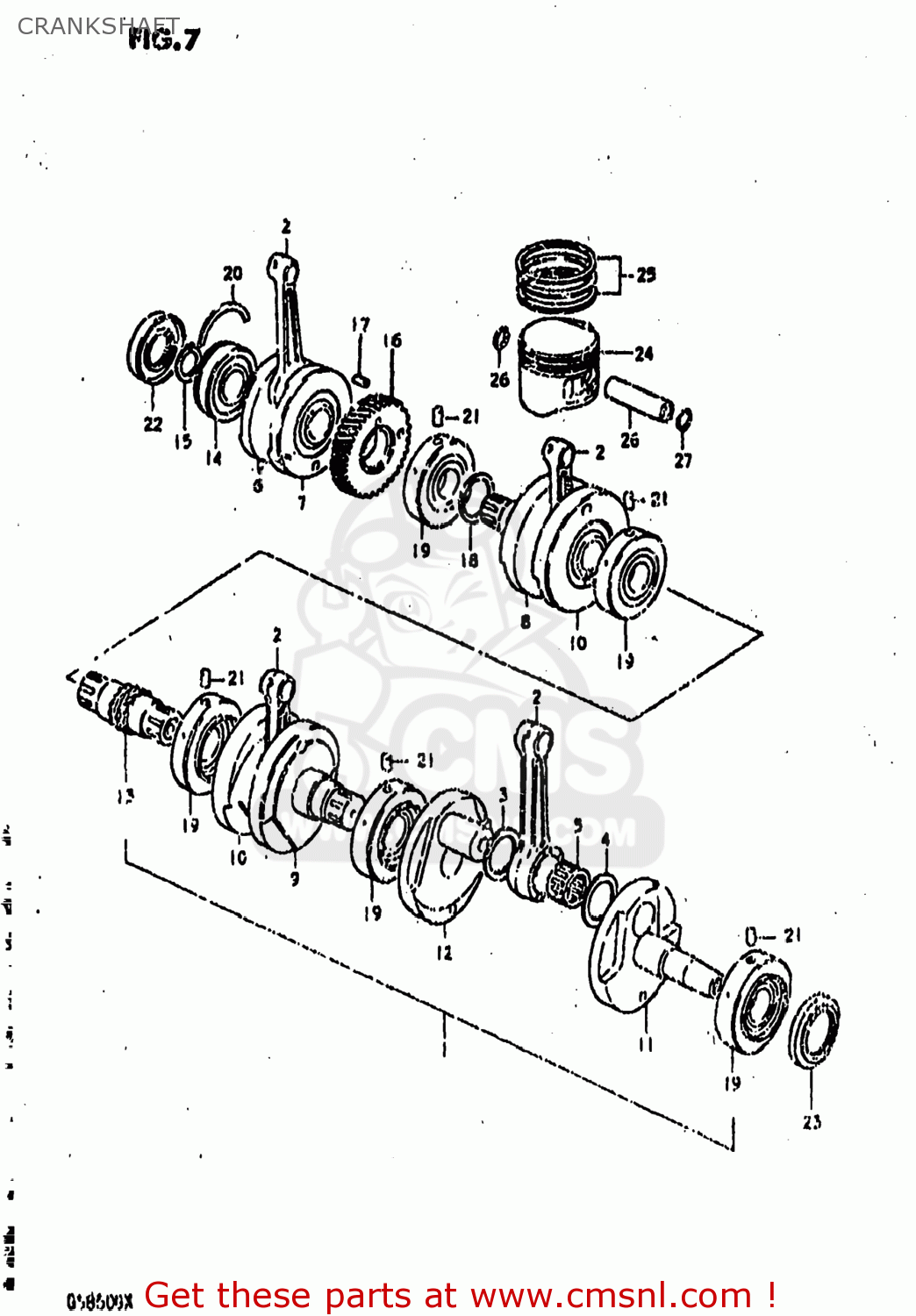

CRANKSHAFT

ref

part #

description

quantity

1-1

1220045100
ref: 1-1
12200-45104

CRANKSHAFT ASSEMBLY

€ 1,895.00

1-2

1220045101
ref: 1-2
12200-45104

CRANKSHAFT ASSEMBLY

€ 1,895.00

2-1

1216145100
ref: 2-1
12161-45101

CONNECTING ROD

€ 94.50

2-2

1216145101
ref: 2-2

ROD,CONNECTING

€ 94.50

3

0916029008
ref: 3

WASHER (29X48X2)

€ 6.00

4

0916029009
ref: 4

WASHER (29X48X1)

€ 5.50

5

0926329002
ref: 5

BEARING(29X39X20)

€ 28.50

6

1222045100
ref: 6

CRANKSHAFT

€ 0.00

7

1223145100
ref: 7

WEB,CRANK,RIGHT

€ 135.50

8

1224145100
ref: 8

CRANKSHAFT

€ 0.00

9

1227145100
ref: 9

CRANKSHAFT, MIDDLE LH

€ 0.00

10

1225045100
ref: 10

WEB,CRANK,MIDDLE

€ 149.00

11-1

1226145100
ref: 11-1
12261-45101

CRANKSHAFT,LEFT

€ 132.50

11-2

1226145101
ref: 11-2

CRANKSHAFT,LEFT

€ 132.50

12

1229045100
ref: 12

WEB,CRANK,LEFT

€ 114.50

13

1228145100
ref: 13

SHAFT,TIMING CHAIN DRIVE

€ 81.00

14

0926230033
ref: 14

BEARING(30X72X19)

€ 47.00

15

0833111308
ref: 15
08331-3130A

CIRCLIP,30MM

€ 3.00

16

2111145100
ref: 16

GEAR,PRIMARY DRIVE

€ 47.00

17

0422108129
ref: 17

PIN

€ 2.00

18

0821128403
ref: 18

WASHER

€ 0.00

19-1

0926432002
ref: 19-1
09264-32009

BEARING

€ 138.00

19-2

0926432005
ref: 19-2
09264-32009

BEARING

€ 138.00

20

0939072004
ref: 20

C RING

€ 3.00

21

0422107129
ref: 21

PIN

€ 1.50

22

0928330021
ref: 22

SEAL,OIL(30X72X11)

€ 22.00

23

0928948001
ref: 23
09289-48002

OIL SEAL

€ 12.00

24-1

1211145110
ref: 24-1

PISTON

€ 77.00

24-2

1211145110050
ref: 24-2
12103-45830-050

PISTON

€ 111.50

24-3

1211145110100
ref: 24-3

PISTON (70.00MM)

€ 111.50

25-1

1214045120
ref: 25-1
12140-45121

RING SET,PISTON

€ 61.50

25-2

1214045120050
ref: 25-2
12140-45121-050

RING SET,PISTON (OS:0.5)

€ 37.50

25-3

1214049001
ref: 25-3

RING SET,PISTON

€ 73.50

26

1215129001
ref: 26

PIN,PISTON

€ 9.00

27

0938116002
ref: 27
09381-16001

CIRCLIP

€ 1.50
