CYLINDER

GS850G 1980 (T) USA (E03)

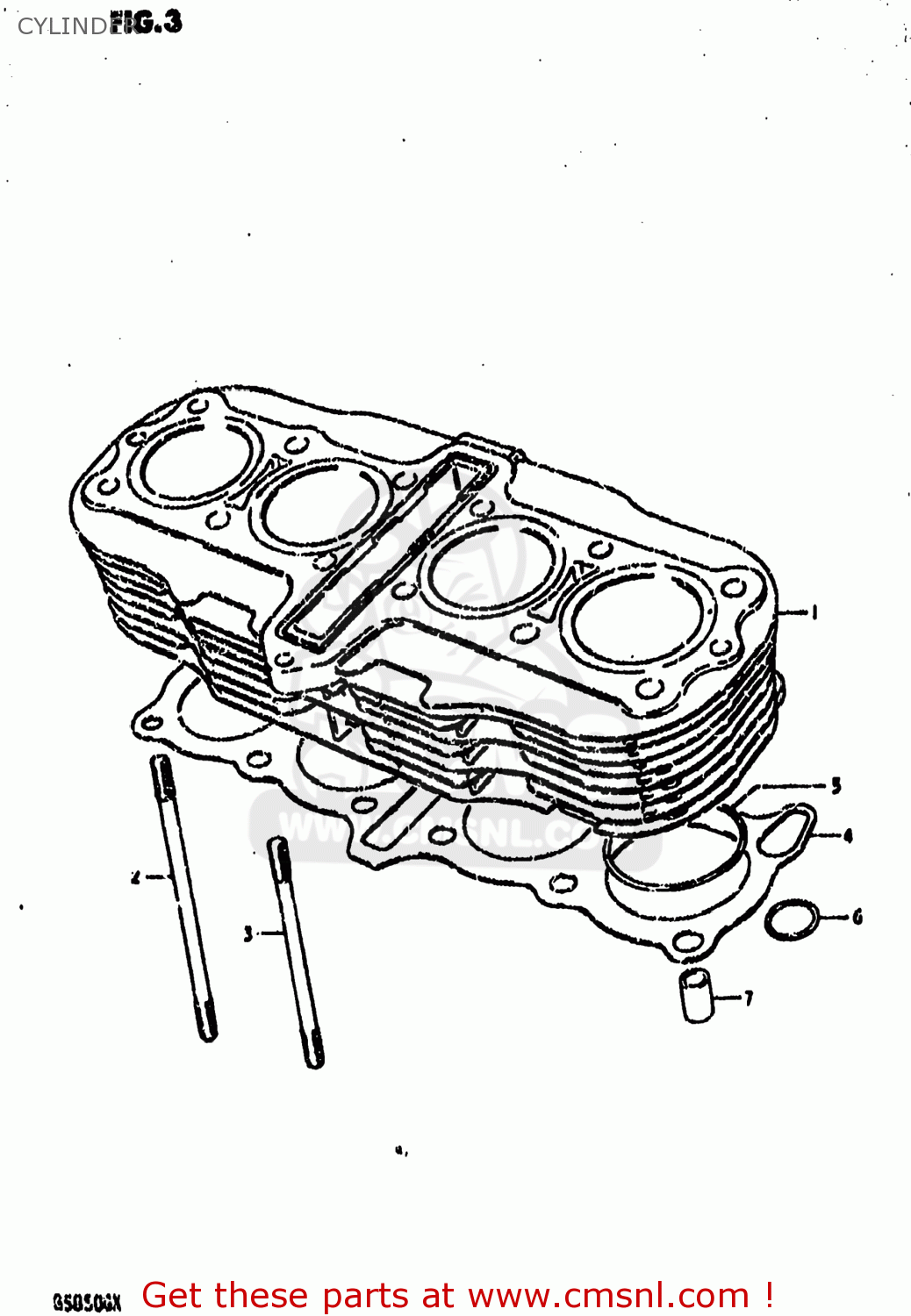

Cylinder diagram GS850G 1980 (T) USA (E03)

CYLINDER GS850G 1980 (T) USA (E03)

CYLINDER GS850G 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121045100
ref: 1

CYLINDER

€ 0.00

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910610028
ref: 3
07130-10357

BOLT

€ 3.50

4

1124145040
ref: 4
11241-45110-H17

GASKET,CYLINDER (MCA)

€ 12.50

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

7

0920613001
ref: 7
04211-13189

PIN

€ 2.50
