CARBURETOR

GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)

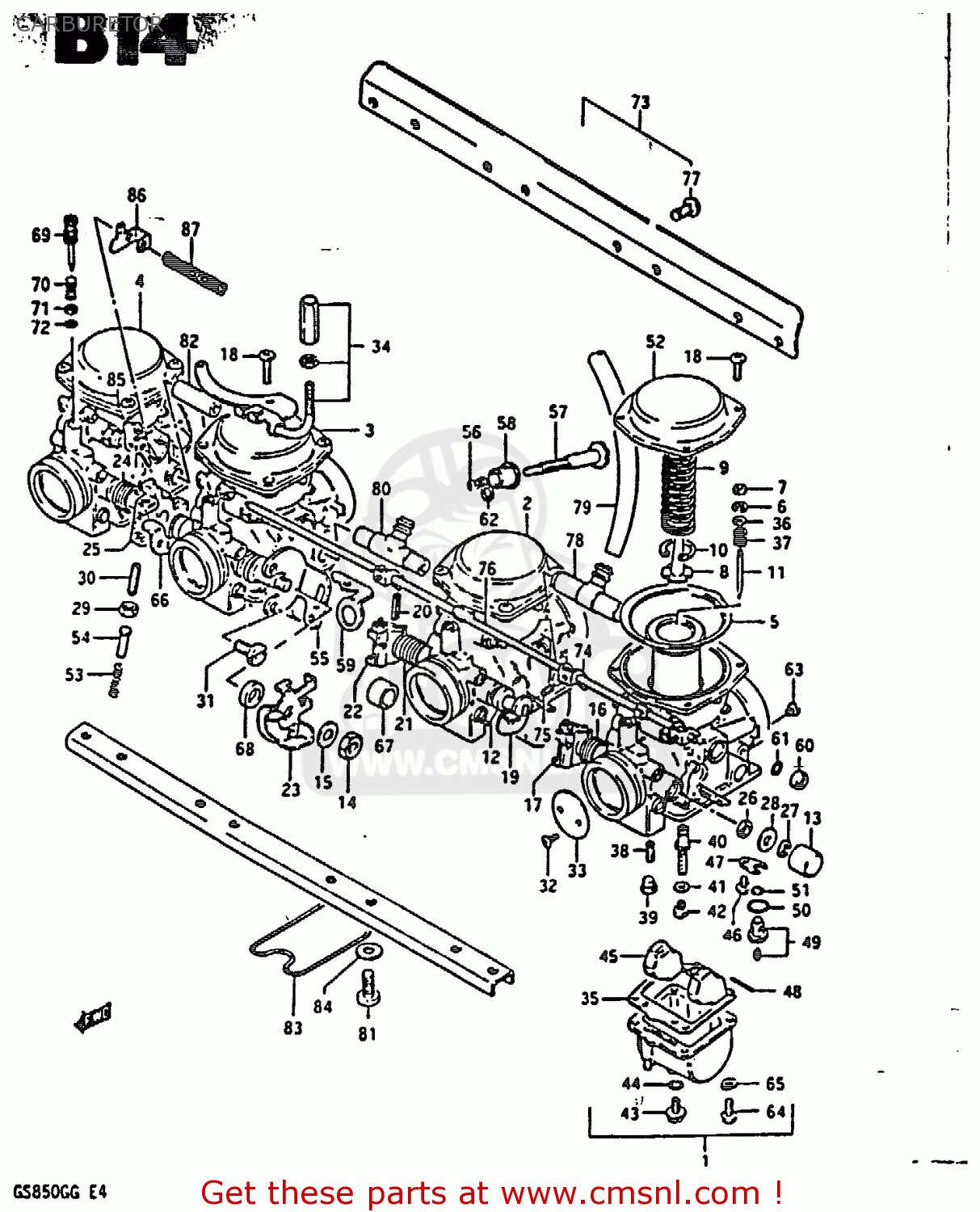

Carburetor diagram GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)

CARBURETOR GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)
CARBURETOR GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)
CARBURETOR GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
1320145170
ref: 1
LH
CARBURETOR, NO.1
€ 0.00
2
1320245170
ref: 2
ML
CARBURETOR, NO.2
€ 0.00
3
1320345170
ref: 3
MR
CARBURETOR, NO.3
€ 0.00
4
1320445170
ref: 4
RH
CARBURETOR, NO.4
€ 0.00
5
1350045110
ref: 5
DIAPHRAGM
1350045110
€ 170.50
6
1339431210
ref: 6
CLIP,NEEDLE
1339431210
€ 3.50
7
1338744030
ref: 7
RING
1338744030
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
1338944030
€ 10.50
9
1350344080
ref: 9
SPRING
1350344080
€ 11.50
10
1358144030
ref: 10
E RING
1358144030
€ 6.50
11
1338345120
ref: 11
NEEDLE, JET (5057-2)
1338345120
€ 14.00
12
1355747070
ref: 12
ML, MR
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
13
1357847070
ref: 13
RH, LH
CAP
1357847070
€ 5.50
14
0831022086
ref: 14
MR
NUT
€ 1.50
15
1360647070
ref: 15
MR
WASHER
1360647070
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
1357347070
€ 6.00
17
1355047070
ref: 17
LH
SHAFT,THROTTLE
1355047070
€ 44.50
18
0211205166
ref: 18
SCREW
€ 2.00
19
1355045110
ref: 19
ML
SHAFT ASSEMBLY
€ 0.00
20
1356347070
ref: 20
LH, ML, RH
PIN,THROTTLE SHAFT
€ 0.00
21
1357345110
ref: 21
ML
SPRING,THROTTLE SHAFT
€ 0.00
22
1355347070
ref: 22
ML
LEVER,THROTTLE SHAFT
€ 0.00
23
1355547070
ref: 23
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
24
1357347080
ref: 24
MR, RH
SPRING,THROTTLE SHAFT
€ 0.00
25
1355047090
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1365151010
ref: 26
FROM 13556-31210
SEAL
1365151010
€ 4.00
27
1361744080
ref: 27
LH, RH
E RING
1361744080
€ 3.50
28
1355747070
ref: 28
LH, RH
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
29
1360747070
ref: 29
LH, ML, RH
NUT
1360747070
€ 4.00
30
1360547080
ref: 30
LH, ML, RH
SCREW
1360547080
€ 7.00
31
1360545420
ref: 31
MR
SCREW
€ 2.00
32
1360444080
ref: 32
SCREW
1360444080
€ 3.50
33
1355145110
ref: 33
VALVE,THROTTLE
€ 0.00
34
1362145160
ref: 34
MR
BRACKET,THROTTLE CABLE
€ 28.00
35
1325144080
ref: 35
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
36
1338244030
ref: 36
WASHER
1338244030
€ 3.50
37
1338844030
ref: 37
SPRING
1338844030
€ 6.00
38
0949242007
ref: 38
JET,PILOT(42.5)
0949242007
€ 8.50
39
1335744080
ref: 39
PLUG,NEEDLE JET
1335744080
€ 4.50
40
0949400270
ref: 40
JET, NEEDLE (X-6)
€ 0.00
41
1333244080
ref: 41
WASHER,NEEDLE NOZZLE
€ 2.50
42
0949123011
ref: 42
JET,MAIN(115)
0949123011
€ 10.50
43
1324744080
ref: 43
PLUG,DRAIN
1324744080
€ 9.50
44
1324644080
ref: 44
GASKET (NAS)
1324644080
€ 3.50
45
1325044080
ref: 45
FLOAT
1325044080
€ 31.00
46
0211204066
ref: 46
SCREW
€ 2.00
47
1337311400
ref: 47
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
48
1325492311
ref: 48
PIN,FLOAT
1325492311
€ 2.00
49
1337044500
ref: 49
FROM 13370-11400
VALVE ASSY,NEEDLE
1337044500
€ 40.50
50
1337444080
ref: 50
O-RING,NEEDLE VALVE
1337444080
€ 6.00
51
1337665010
ref: 51
FILTER
€ 6.50
52
1350245110
ref: 52
COVER,DIAPHRAGM
1350245110
€ 42.00
53
1326844010
ref: 53
LH, ML, RH
SPRING,THROTTLE SCREW
1326844010
€ 3.00
54
1357547070
ref: 54
LH, ML, RH
PIN,THROTTLE LEVER
1357547070
€ 2.50
55
1362745110
ref: 55
MR
BRACKET,THROTTLE ADJUST
€ 0.00
56
1327193011
ref: 56
MR
SPRING
1327193011
€ 4.50
57
1326747070
ref: 57
MR
SCREW
1326747070
€ 21.00
58
1327631210
ref: 58
MR
BUSH
1327631210
€ 4.00
59
1362744090
ref: 59
MR
BRACKET,THROTTLE ADJUST
€ 0.00
60
1368231210
ref: 60
CAP,STARTER VALVE
1368231210
€ 5.00
61
1327847090
ref: 61
O RING
1327847090
€ 2.00
62
1343247090
ref: 62
WASHER
1343247090
€ 2.50
63
0949340001
ref: 63
JET,AIR
€ 11.50
64
0211205166
ref: 64
SCREW
€ 2.00
65
0832121056
ref: 65
LOCK WASHER
0832121056
€ 3.00
66
1355045120
ref: 66
MR
SHAFT ASSEMBLY
€ 0.00
67
1357445110
ref: 67
ML
RING
€ 3.50
68
1357445120
ref: 68
MR
RING
€ 2.50
69
1327947080
ref: 69
SCREW,PILOT AIR
1327947080
€ 11.50
70
1326847070
ref: 70
SPRING
1326847070
€ 5.00
71
1327744080
ref: 71
GASKET
€ 2.00
72
1327844080
ref: 72
O-RING
€ 4.00
73
1321045160
ref: 73
CARBURETOR ASSEMBLY
€ 0.00
74
1342244080
ref: 74
LEVER
1342244080
€ 10.00
75
1360547070
ref: 75
SCREW
1360547070
€ 5.50
76
1341045110
ref: 76
SHAFT,STARTER
€ 0.00
77
0215205126
ref: 77
SCREW
€ 1.50
78
1368547070
ref: 78
NIPPLE
1368547070
€ 25.00
79
1368349160
ref: 79
HOSE,CARBURETOR
€ 26.00
80
1368545110
ref: 80
NIPPLE
1368545110
€ 31.50
81
0211206126
ref: 81
SCREW
0211206126
€ 1.50
82
1368547090
ref: 82
NIPPLE
1368547090
€ 16.50
83
1361945110
ref: 83
CLAMP
€ 0.00
84
1361549200
ref: 84
WASHER
€ 0.00
85
1341349220
ref: 85
LEVER,CHOKE CABLE
€ 4.00
86
1342149220
ref: 86
PLATE,CHOKE CABLE
1342149220
€ 3.00
87
1343749220
ref: 87
SPRING,CHOKE CABLE
€ 0.00
