REAR COMBINATION LAMP

GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)

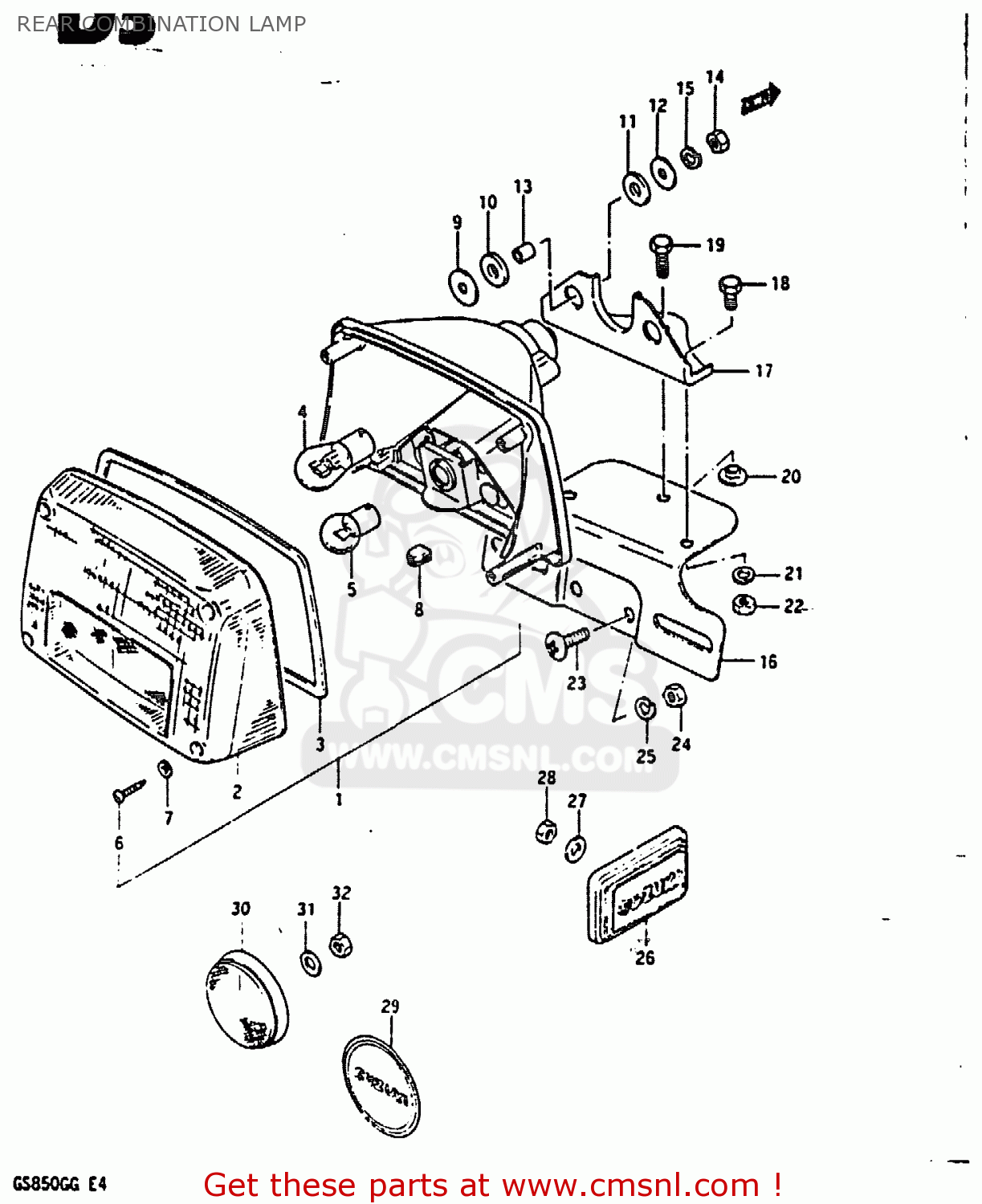

Rear combination lamp diagram GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)

REAR COMBINATION LAMP GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)
REAR COMBINATION LAMP GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)
REAR COMBINATION LAMP GS850G 1985 (F) (E01 E02 E04 E06 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1-1
3571049030
ref: 1-1
E1, E6, E24
LAMP ASSEMBLY,REAR COMBINATION
€ 245.00
1-2
3571049083
ref: 1-2
MODEL E/F E2, E4
LAMP ASSY, REAR COMBINATION
€ 178.00
1-3
3571049052
ref: 1-3
MODEL G E2
LAMP ASSY, REAR COMBINATION
€ 178.00
1-4
3571049024
ref: 1-4
MODEL G E4
LAMP ASSY, REAR COMBINATION
€ 178.00
1-5
3571049091999
ref: 1-5
E22, E25
LAMP ASSY, REAR COMBINATION
3571049091999
€ 178.00
2-1
3571249031
ref: 2-1
E1, E6, E24
LENS
3571249031
€ 43.50
2-2
3571249084
ref: 2-2
MODEL E/F E2, E4
LENS,RR COMBI
€ 43.50
2-3
3571231321
ref: 2-3
MODEL G E2, E4
LENS
€ 53.50
2-4
3571249091
ref: 2-4
E22, E25
LENS
3571249091
€ 37.50
3
3571349030
ref: 3
GASKET (NAS)
3571349030
€ 12.50
4-1
0947112035
ref: 4-1
E1, E6, E24
BULB(12V23W)
0947112035
€ 5.50
4-2
0947112046
ref: 4-2
E2, E4, E22, E25 EXE
BULB(12V21/5W)
0947112046
€ 1.50
5-1
0947112037
ref: 5-1
E1, E6, E24
BULB
€ 7.00
5-2
0947112059
ref: 5-2
E2, E4, E22, E25 EXE
BULB
€ 4.00
6
3562749030
ref: 6
SCREW,REAR COMBINATION LAMP
3562749030
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
3572846630
ref: 8
E22, E25
GROMMET
€ 0.00
9
0916006057
ref: 9
WASHER
€ 2.00
10
0932009004
ref: 10
CUSHION
0932009004
€ 2.50
11
0932009003
ref: 11
CUSHION
0932009003
€ 2.00
12
0916006012
ref: 12
WASHER(6,5X22X1.6)
€ 2.00
13
0918006038
ref: 13
SPACER(6.1X9X7.5)
0918006038
€ 2.00
14
0831011066
ref: 14
NUT
€ 2.00
15
0832121066
ref: 15
WASHER,LOCK
0832121066
€ 2.00
16
3592749091
ref: 16
BRACKET, LICENCE PLATE
3592749091
€ 13.00
17
3572645100
ref: 17
BRACKET,REAR COMBINATION LAMP
€ 0.00
18
0110706126
ref: 18
BOLT
€ 2.00
19
0110706166
ref: 19
BOLT
€ 2.00
20
0916906016
ref: 20
WASHER
0916906016
€ 1.50
21
0832121066
ref: 21
WASHER,LOCK
0832121066
€ 2.00
22
0831011066
ref: 22
NUT
€ 2.00
23
0214206165
ref: 23
SCREW
0214206165
€ 2.50
24
0831011066
ref: 24
NUT
€ 2.00
25
0832121066
ref: 25
WASHER,LOCK
0832121066
€ 2.00
26
3599245110
ref: 26
EMBLEM, REAR SIDE
€ 10.50
27
0832221056
ref: 27
WASHER
€ 2.50
28
0831011056
ref: 28
NUT
€ 2.50
29
3599545110
ref: 29
E24
EMBLEM, REAR
€ 0.00
30-1
3597030910
ref: 30-1
MODEL E E22, E25
REFLEX REFLECTOR,RR
3597030910
€ 47.50
30-2
3597014A10
ref: 30-2
MODEL F/G E22, E25
REFLEX REFLECTOR,RR
3597014A10
€ 12.00
31
0832221056
ref: 31
WASHER
€ 2.50
32
0831011056
ref: 32
NUT
€ 2.50
