AIR CLEANER (MODEL T)
GS850GL 1981 (X) USA (E03)

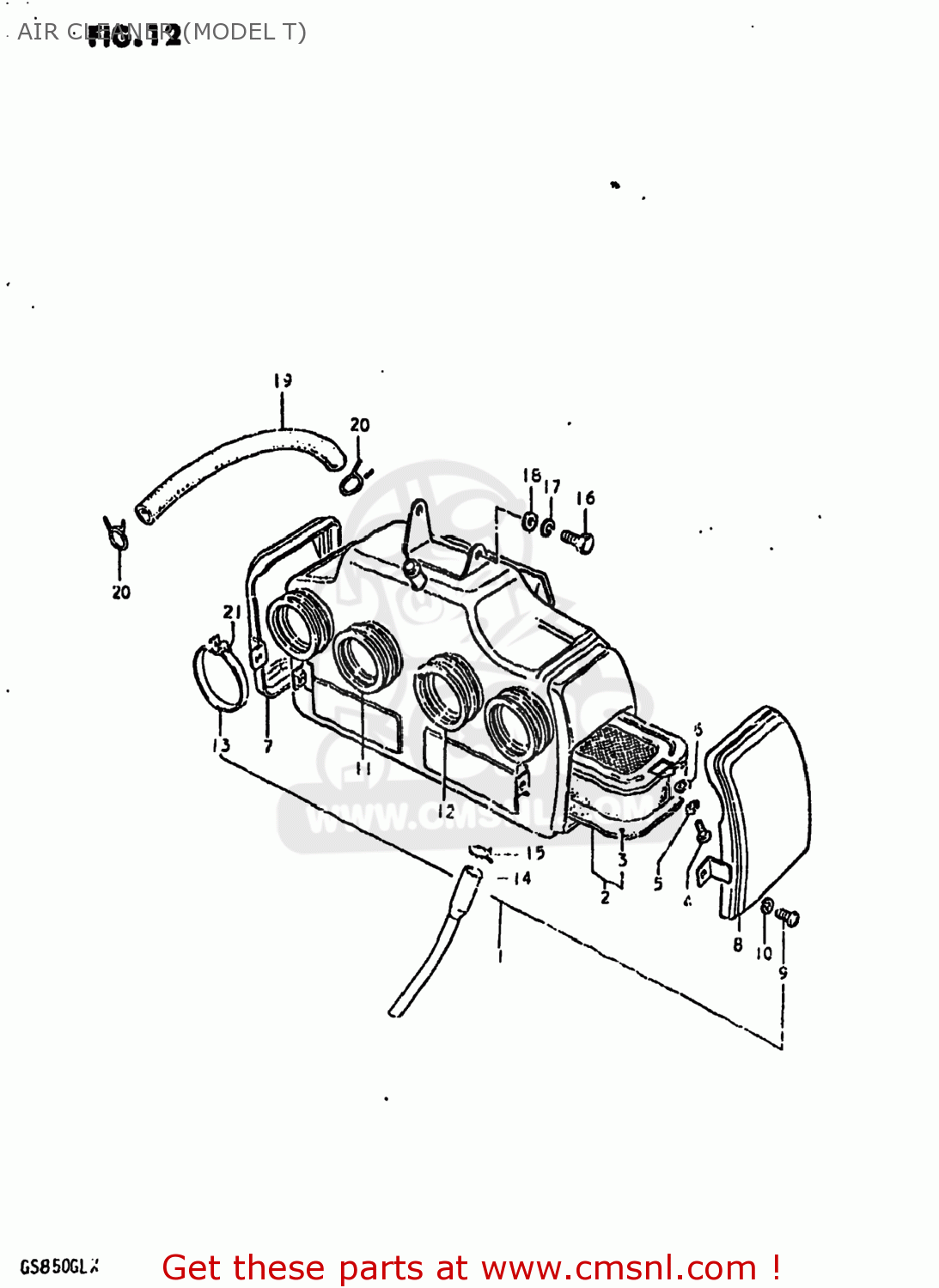

Air cleaner (model t) diagram GS850GL 1981 (X) USA (E03)
AIR CLEANER (MODEL T) GS850GL 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370045030
ref: 1
CLEANER ASSEMBLY,AIR
€ 255.50
2
1378045010
ref: 2
FILTER ASSY,AIR CLEANER
€ 67.50
3
1378145010
ref: 3
FILTER
€ 37.50
4
0211205108
ref: 4
02112-05107
SCREW
€ 2.00
5
0832121058
ref: 5
08321-0105A
LOCK WASHER
€ 2.00
6
0832221058
ref: 6
08322-01057
WASHER
€ 2.50
7
1374145030
ref: 7
13741-45020
CAP,AIR CLEANER
€ 54.00
8
1374245030
ref: 8
13742-45020
COVER, LH
€ 54.00
9
0211205108
ref: 9
02112-05107
SCREW
€ 2.00
10
0832221058
ref: 10
08322-01057
WASHER
€ 2.50
11
1388145030
ref: 11
HOSE,R
€ 24.00
12
1388245030
ref: 12
HOSE,L
€ 17.00
13
0940258205
ref: 13
09402-58306
CLAMP
€ 5.00
14
1372945010
ref: 14
13729-45011
1372945010
15
1372645010
ref: 15
13726-45011
1372645010
16
0110706128
ref: 16
01500-06127
BOLT
€ 2.00
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
18
0832211068
ref: 18
08322-0106B
WASHER 6MM
€ 2.00
19
0934311001
ref: 19
09352-11153-00B
HOSE
€ 30.00
20
0940115301
ref: 20
CLIP
€ 2.50
