FUEL TANK (MODEL X)
GS850GL 1981 (X) USA (E03)

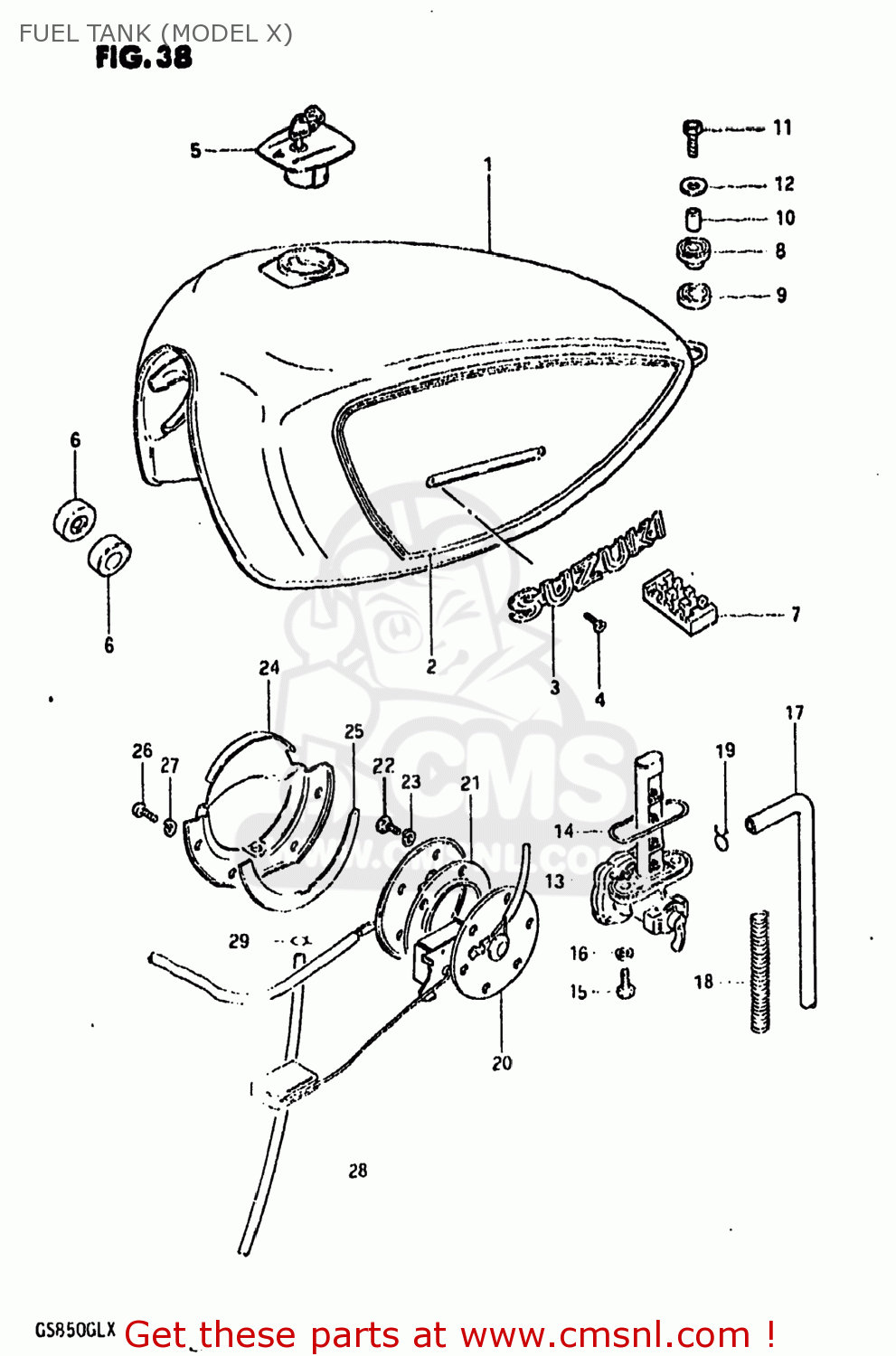

Fuel tank (model x) diagram GS850GL 1981 (X) USA (E03)
FUEL TANK (MODEL X) GS850GL 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
441004530008D
ref: 1-1
44110-45301-13L
TANK ASSEMBLY,FUEL
€ 227.00
1-2
441004530008E
ref: 1-2
44110-45301-13L
TANK ASSEMBLY,FUEL
€ 227.00
2
6811045300764
ref: 2
TAPE SET,FUEL TANK
€ 32.50
3
6811111400
ref: 3
EMBLEM,FUEL TANK
€ 24.50
4
0213203065
ref: 4
02122-0306B
SCREW 3X6
€ 2.00
5
4420049702
ref: 5
44200-49810
CAP SET,FUEL TANK
€ 121.00
6
0932910007
ref: 6
CUSHION
€ 3.00
7
4454134500
ref: 7
CUSHION,FUEL TANK CTR
€ 13.00
8
0932010020
ref: 8
CUSHION
€ 4.00
9
0932014013
ref: 9
CUSHION
€ 3.00
10
0918006072
ref: 10
09180-06271
SPACER
€ 2.00
11
0110706308
ref: 11
01500-06307
BOLT
€ 2.50
12
0916006004
ref: 12
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
13
4430045370
ref: 13
44300-45372
COCK ASSEMBLY,FUEL
€ 104.50
14
4434849170
ref: 14
O RING
€ 3.50
15
0912806006
ref: 15
09128-06057
BOLT(6X20)
€ 2.00
16
0916806010
ref: 16
09168-06023
GASKET
€ 2.00
17
0934307026
ref: 17
09352-70103-00B
HOSE
€ 17.50
18
0944013017
ref: 18
09440-13043
SPRING
€ 14.50
19
0940110403
ref: 19
CLIP
€ 7.00
20
3481045310
ref: 20
GAUGE ASSEMBLY,FUEL LEVEL
€ 43.00
21
3482545100
ref: 21
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
22
0110405108
ref: 22
01500-0510B
BOLT
€ 1.50
23
0832121058
ref: 23
08321-0105A
LOCK WASHER
€ 2.00
24
3488545301
ref: 24
34885-34500
PLATE,FUEL DRAIN
€ 20.50
25
3488849000
ref: 25
GASKET,FUEL DRAIN PLATE (NAS)
€ 15.00
26
0211205088
ref: 26
02112-05087
SCREW
€ 2.00
27
0832121058
ref: 27
08321-0105A
LOCK WASHER
€ 2.00
28
0934305151
ref: 28
09352-50823-00B
HOSE
€ 13.00
29
0940108402
ref: 29
CLIP
€ 1.50
