CLUTCH MASTER CYLINDER (GSF1200K1/K2/K3)

GSF1200 BANDIT 2005 (K5) USA (E03)

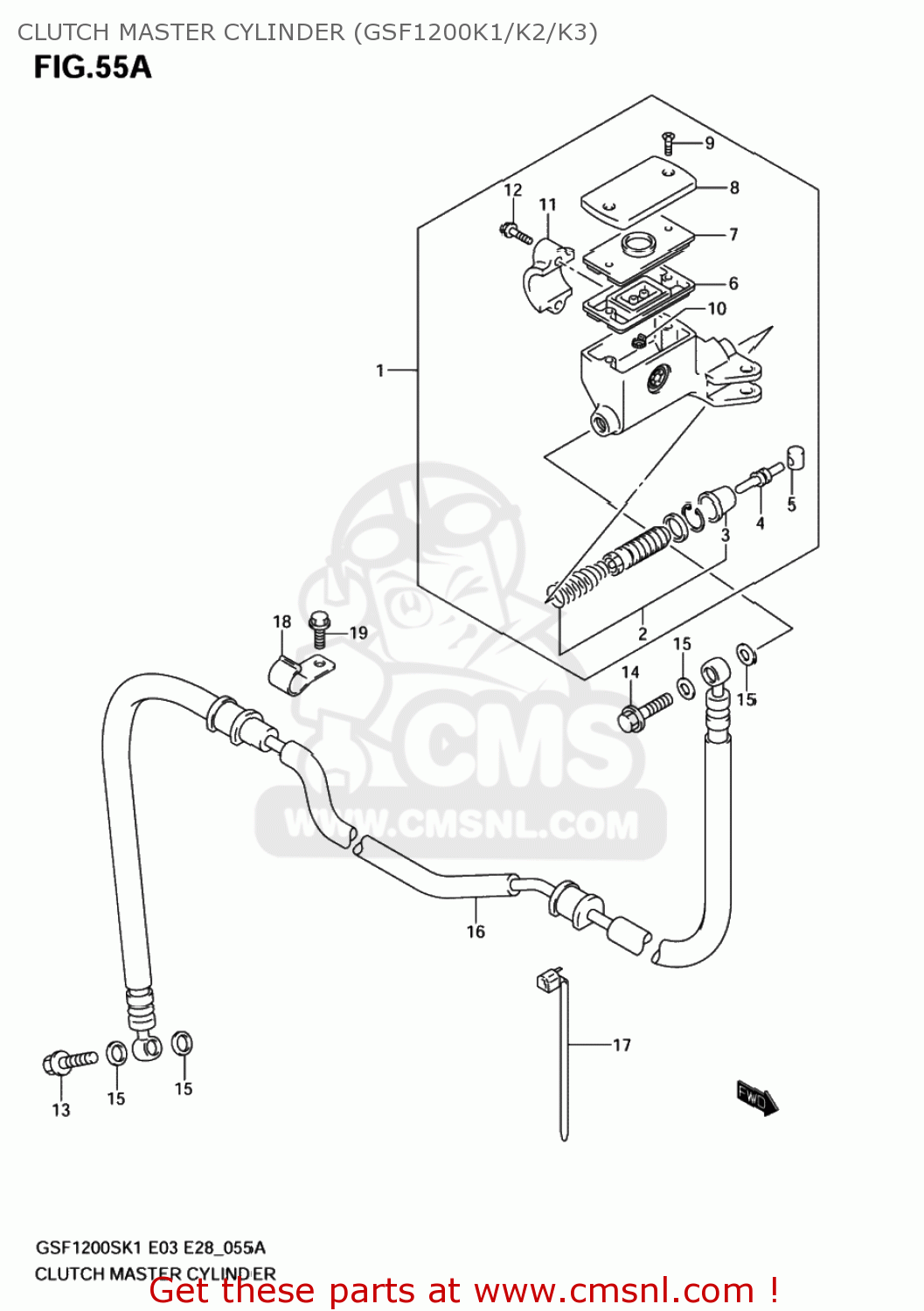

Clutch master cylinder (gsf1200k1/k2/k3) diagram GSF1200 BANDIT 2005 (K5) USA (E03)

CLUTCH MASTER CYLINDER (GSF1200K1/K2/K3) GSF1200 BANDIT 2005 (K5) USA (E03)

CLUTCH MASTER CYLINDER (GSF1200K1/K2/K3) GSF1200 BANDIT 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5980032F00
ref: 1

CYLINDER ASSY,

€ 292.50

2

5980008810
ref: 2

PISTON & CUP SET

€ 36.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5987138A00
ref: 4

PUSH ROD

€ 6.50

5

5989208A00
ref: 5

BUSH

€ 5.50

6

5966749460
ref: 6

5966749460

7

5966841C00
ref: 7

PLATE,DIAPHRAGM

€ 8.00

8

5966910G00
ref: 8

CAP

€ 19.00

9

6968949300
ref: 9

SCREW

€ 1.50

10

5966432F00
ref: 10

PROTECTOR

€ 7.50

11

5967132F00
ref: 11

HOLDER

€ 17.00

12

5967502FA0
ref: 12

BOLT(6X22)

€ 3.00

13

0936010041
ref: 13
09360-10061

BOLT UNION

€ 6.50

14

0936010042
ref: 14
09360-10062

BOLT UNION

€ 5.00

15

0916110009
ref: 15

WASHER(10X15X1.5)

€ 2.00

16

5991032F00
ref: 16
59910-32F11

HOSE, CLUTCH

€ 160.00

17

0940714403
ref: 17

CLAMP(L:125)

€ 2.50

18

5991532F00
ref: 18

CLAMP,CLUTCH HOSE NO.1

€ 5.00

19

0154706123
ref: 19
01547-0612B

BOLT

€ 2.00
