SPEEDOMETER (GSF1200K1)

GSF1200 BANDIT 2005 (K5) USA (E03)

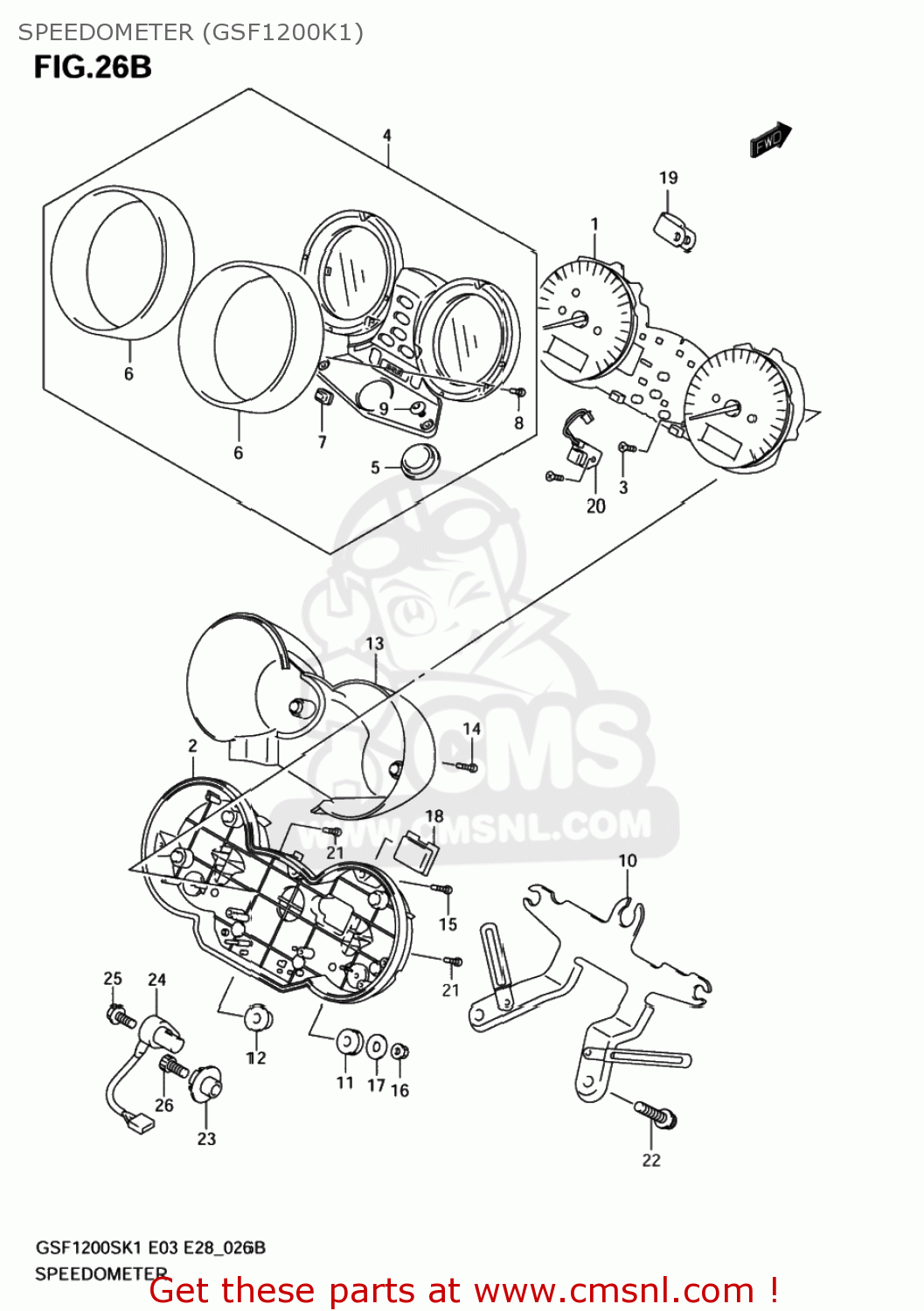

Speedometer (gsf1200k1) diagram GSF1200 BANDIT 2005 (K5) USA (E03)

SPEEDOMETER (GSF1200K1) GSF1200 BANDIT 2005 (K5) USA (E03)
SPEEDOMETER (GSF1200K1) GSF1200 BANDIT 2005 (K5) USA (E03)
SPEEDOMETER (GSF1200K1) GSF1200 BANDIT 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3412031F60
ref: 1
SPEEDOMETER
€ 374.50
2
3411131F10
ref: 2
CASE ASSY,LWR
3411131F10
€ 67.00
3
3414917E10
ref: 3
SCREW(4X14)
3414917E10
€ 4.00
4
3415031F10
ref: 4
UPR CASE ASSY
3415031F10
€ 183.00
5
3418831F10
ref: 5
DAMPER
3418831F10
€ 8.00
6
3419331F10
ref: 6
RING
3419331F10
€ 56.50
7
3412431F10
ref: 7
RUBBER,SWITCH
3412431F10
€ 5.50
8
3418331F10
ref: 8
SCREW(2.3X8)
3418331F10
€ 3.00
9
3419931F10
ref: 9
TAPPING CAP(5X10.2)
3419931F10
€ 7.50
10
3495031F10
ref: 10
BRACKET
3495031F10
€ 69.00
11
3418932B00
ref: 11
CUSHION
3418932B00
€ 5.00
12
3495513E00
ref: 12
CUSHION
3495513E00
€ 3.00
13
3415231F10
ref: 13
COVER
3415231F10
€ 187.50
14
3414931F10
ref: 14
SCREW,PAN HEAD(3X14)
3414931F10
€ 4.00
15
0913203008
ref: 15
SCREW(3X16)
0913203008
€ 1.50
16
0831000057
ref: 16
NUT
0831000057
€ 2.50
17
0916005013
ref: 17
WASHER(5.2X16X1)
0916005013
€ 1.50
18
3419819F20
ref: 18
GROMMET
3419819F20
€ 9.00
19
3417921F00
ref: 19
CLAMP
3417921F00
€ 4.00
20
3417731F10
ref: 20
SWITCH,PRINT CIRCUIT
3417731F10
€ 34.50
21
3438331F10
ref: 21
SCREW,PAN HEAD(3X16)
3438331F10
€ 3.50
22
0712006163
ref: 22
07120-0616B
BOLT MAGNETO S
0712006163
€ 2.50
23
3498135F00
ref: 23
34981-38G01
ROTOR,SPEED
3498135F00
€ 15.00
24
3499033E10
ref: 24
34990-35F00
SENSOR,SPEED
3499033E10
€ 112.50
25
0712005123
ref: 25
07120-0512B
BOLT
0712005123
€ 2.00
26
0713008253
ref: 26
07130-0825B
BOLT
0713008253
€ 3.50
