GSF1200S BANDIT 2001 (K1) USA (E03)

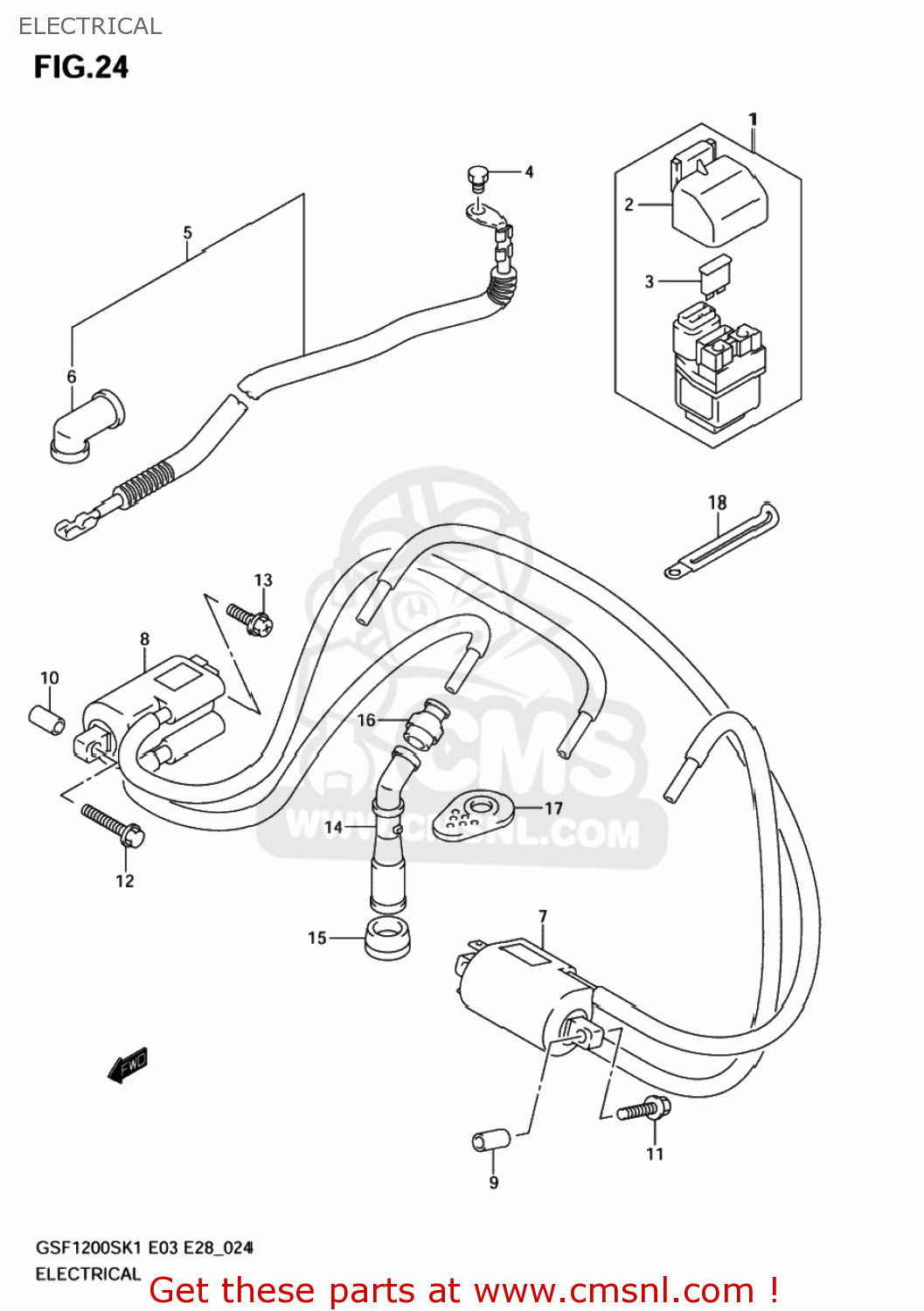

Electrical diagram GSF1200S BANDIT 2001 (K1) USA (E03)

ELECTRICAL GSF1200S BANDIT 2001 (K1) USA (E03)
ELECTRICAL GSF1200S BANDIT 2001 (K1) USA (E03)
ELECTRICAL GSF1200S BANDIT 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
3180026E00
€ 77.50
2
3186126E00
ref: 2
COVER,STARTER RELAY
3186126E00
€ 3.50
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3381032F00
ref: 5
WIRE, STARTER MOTOR LEAD
€ 16.50
6
3186148B10
ref: 6
CAP,STARTER MOTOR LEAD
3186148B10
€ 4.50
7
3341026E01
ref: 7
COIL ASSY,IGNITION
3341026E01
€ 163.50
8
3342031F00
ref: 8
COIL ASSY,IGNITION
3342031F00
€ 163.50
9
0918006095
ref: 9
SPACER(6X12X10)
0918006095
€ 4.50
10
0918006195
ref: 10
SPACER(6.4X10X18)
0918006195
€ 3.50
11
0155006253
ref: 11
01550-0625A
BOLT
0155006253
€ 2.50
12
0155006353
ref: 12
01550-0635A
BOLT
0155006353
€ 2.50
13
0216206203
ref: 13
02162-0620C
BOLT
0216206203
€ 2.00
14
3351048B10
ref: 14
CAP,SPARK PLUG
3351048B10
€ 29.50
15
3354123E01
ref: 15
SEAL,SPARK PLUG CAP
3354123E01
€ 7.00
16
3354238B00
ref: 16
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
17
3354332F00
ref: 17
COVER,SPARK PLUG CAP
3354332F00
€ 22.00
18
0940406431
ref: 18
09404-06432
CLAMP(L:65)
0940406431
€ 2.50
