REAR MASTER CYLINDER
GSF1200S BANDIT 2001 (K1) USA (E03)

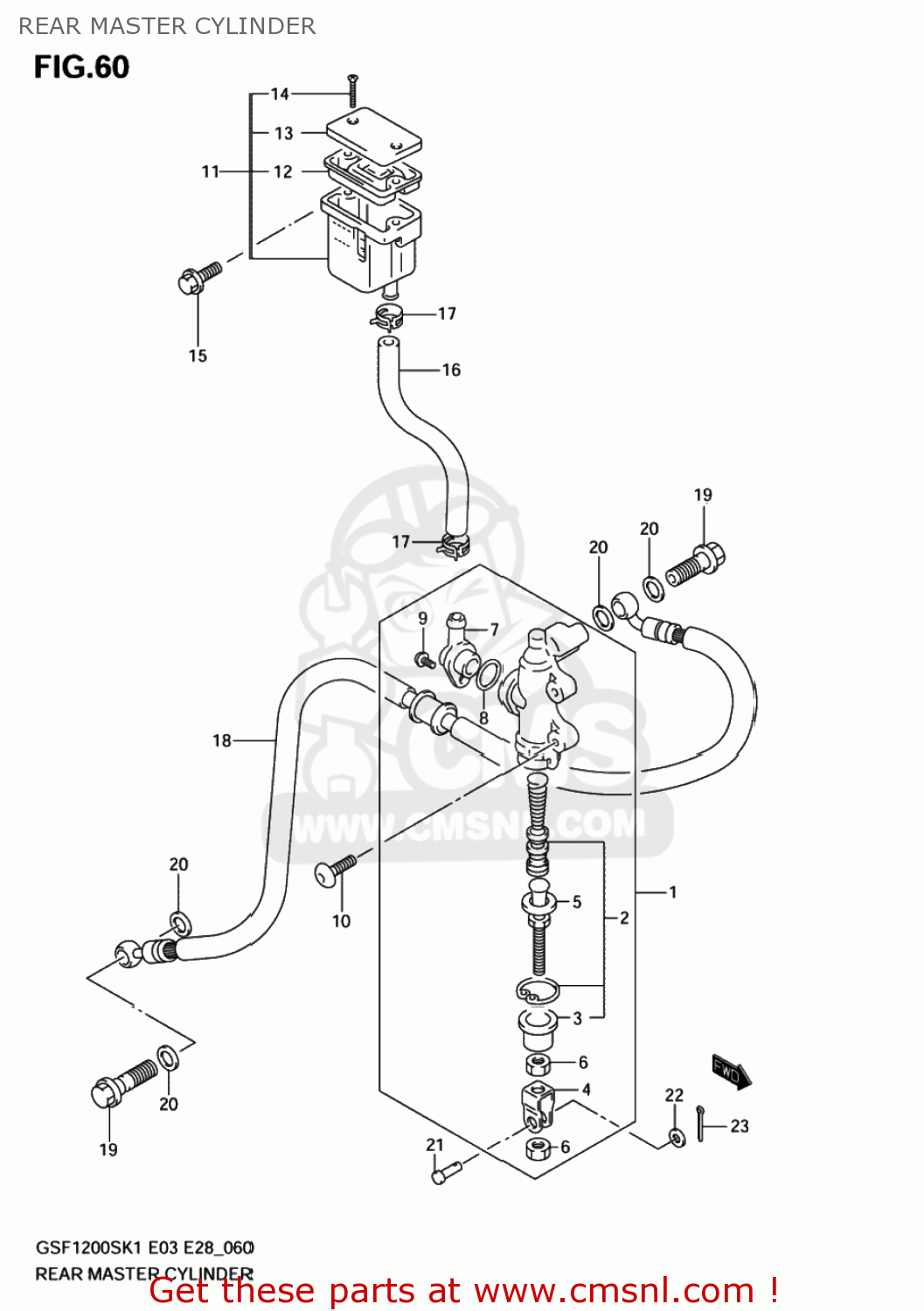

Rear master cylinder diagram GSF1200S BANDIT 2001 (K1) USA (E03)
REAR MASTER CYLINDER GSF1200S BANDIT 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960017C01
ref: 1
CYLINDER ASSY,RR MASTER
€ 194.50
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969227A30
ref: 4
YOKE
€ 12.50
5
6967048B00
ref: 5
ROD,PUSH
€ 20.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967205A00
ref: 7
CONNECTOR
€ 4.50
8
6968634200
ref: 8
O RING
€ 3.50
9
0211274123
ref: 9
02112-7412A
SCREW
€ 2.50
10-1
0910608118
ref: 10-1
09106-08161
BOLT 8X20
€ 4.00
10-2
0910608167
ref: 10-2
BOLT(8X20)
€ 3.50
11
6974038B21
ref: 11
TANK ASSY,RESERVOIR
€ 85.50
12
5966704700
ref: 12
DIAPHRAGM
€ 8.00
13
5966905D00
ref: 13
CAP
€ 13.50
14
6968904A00
ref: 14
SCREW
€ 2.00
15
0155006123
ref: 15
01550-0612A
BOLT
€ 2.50
16
6973131F00
ref: 16
HOSE,RR RESERVOIR TANK
€ 17.00
17
0940113417
ref: 17
CLIP
€ 2.50
18-1
6948031F00
ref: 18-1
69480-31F11
HOSE,REAR BRAKE
€ 95.00
18-2
6948031F10
ref: 18-2
69480-31F11
HOSE, REAR BRAKE
€ 95.00
19
0936010041
ref: 19
09360-10061
BOLT UNION
€ 6.50
20
0916110009
ref: 20
WASHER(10X15X1.5)
€ 2.00
21
0920006037
ref: 21
09200-06068
PIN
€ 5.00
22
0832201063
ref: 22
08322-0106B
WASHER
€ 2.00
23
0411120158
ref: 23
04111-2015A
PIN
€ 1.50
