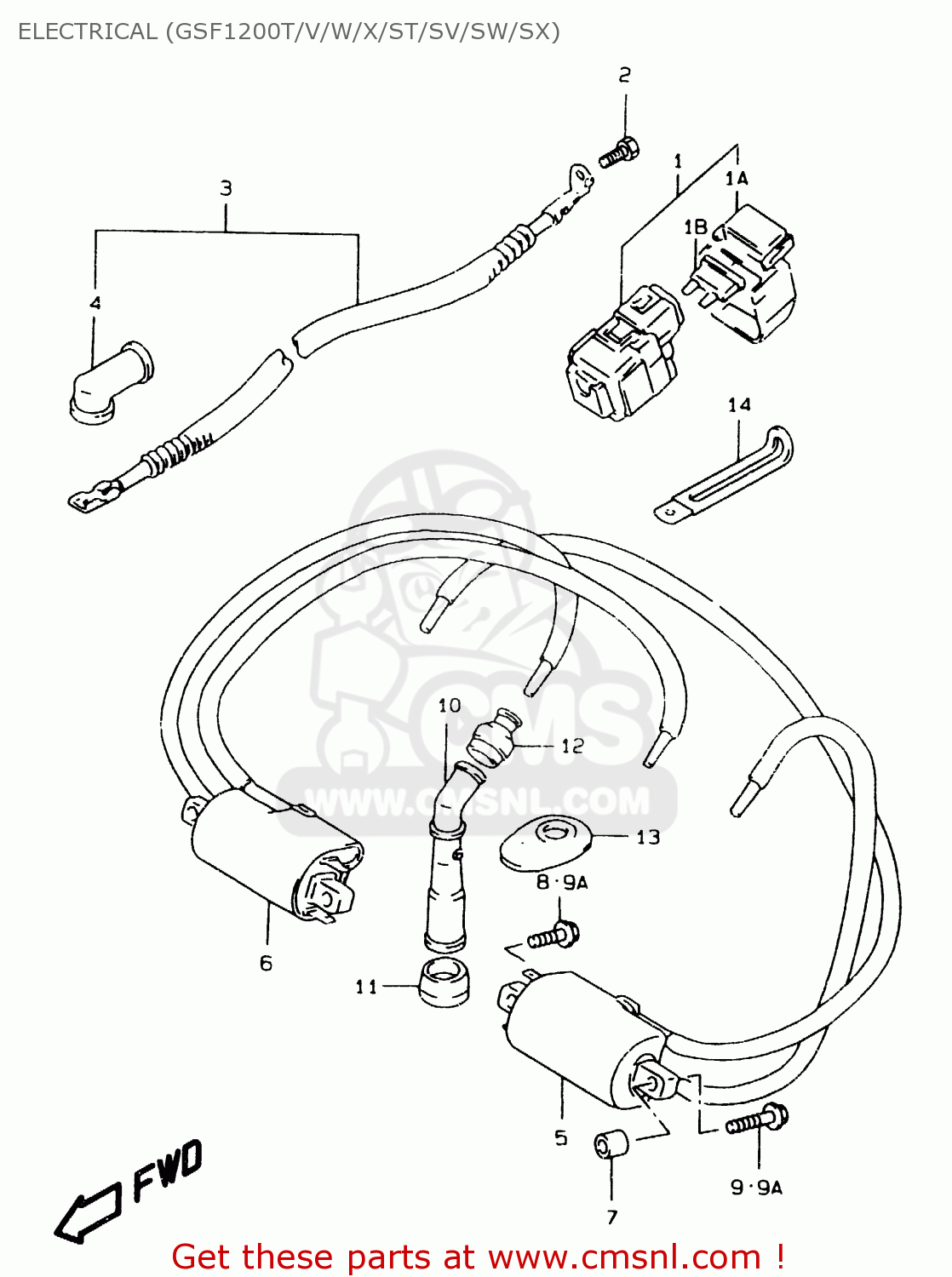

ELECTRICAL (GSF1200T/V/W/X/ST/SV/SW/SX)

GSF1200SA 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

Electrical (gsf1200t/v/w/x/st/sv/sw/sx) diagram GSF1200SA 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

ELECTRICAL (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200SA 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

ELECTRICAL (GSF1200T/V/W/X/ST/SV/SW/SX) GSF1200SA 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3180026E00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

1A

3186126E00
ref: 1A

COVER,STARTER RELAY

€ 3.50

1B

0948130101
ref: 1B

FUSE(30A)

€ 6.00

2

0912806013
ref: 2

SCREW(6X8)

€ 1.50

3

3381027E00
ref: 3

WIRE,STARTER MOTOR LEAD

€ 30.50

4

3186148B10
ref: 4

CAP,STARTER MOTOR LEAD

€ 4.50

5

3341026E01
ref: 5
<-33410-26E00

COIL ASSY,IGNITION

€ 163.50

6

3342026E01
ref: 6
<-33420-26E00

COIL ASSY,IGNITION

€ 152.50

7

0918006095
ref: 7

SPACER(6X12X10)

€ 4.50

8

0155006203
ref: 8
MODEL T/V/ST/SV

BOLT

€ 2.50

9

0155006253
ref: 9
MODEL T/V/ST/SV

BOLT

€ 2.50

9A

0155006253
ref: 9A
MODEL W/SW/X/SX

BOLT

€ 2.50

10

3351048B10
ref: 10

CAP,SPARK PLUG

€ 29.50

11

3354123E01
ref: 11

SEAL,SPARK PLUG CAP

€ 7.00

12

3354238B00
ref: 12

SEAL,HIGH TENSION CORD

€ 4.50

13

3354348B00
ref: 13

COVER,SPARK PLUG CAP

€ 12.50

14

0940406432
ref: 14
<-09404-06431

CLAMP(L:65)

€ 2.50
