SEAT

GSF1200SA 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

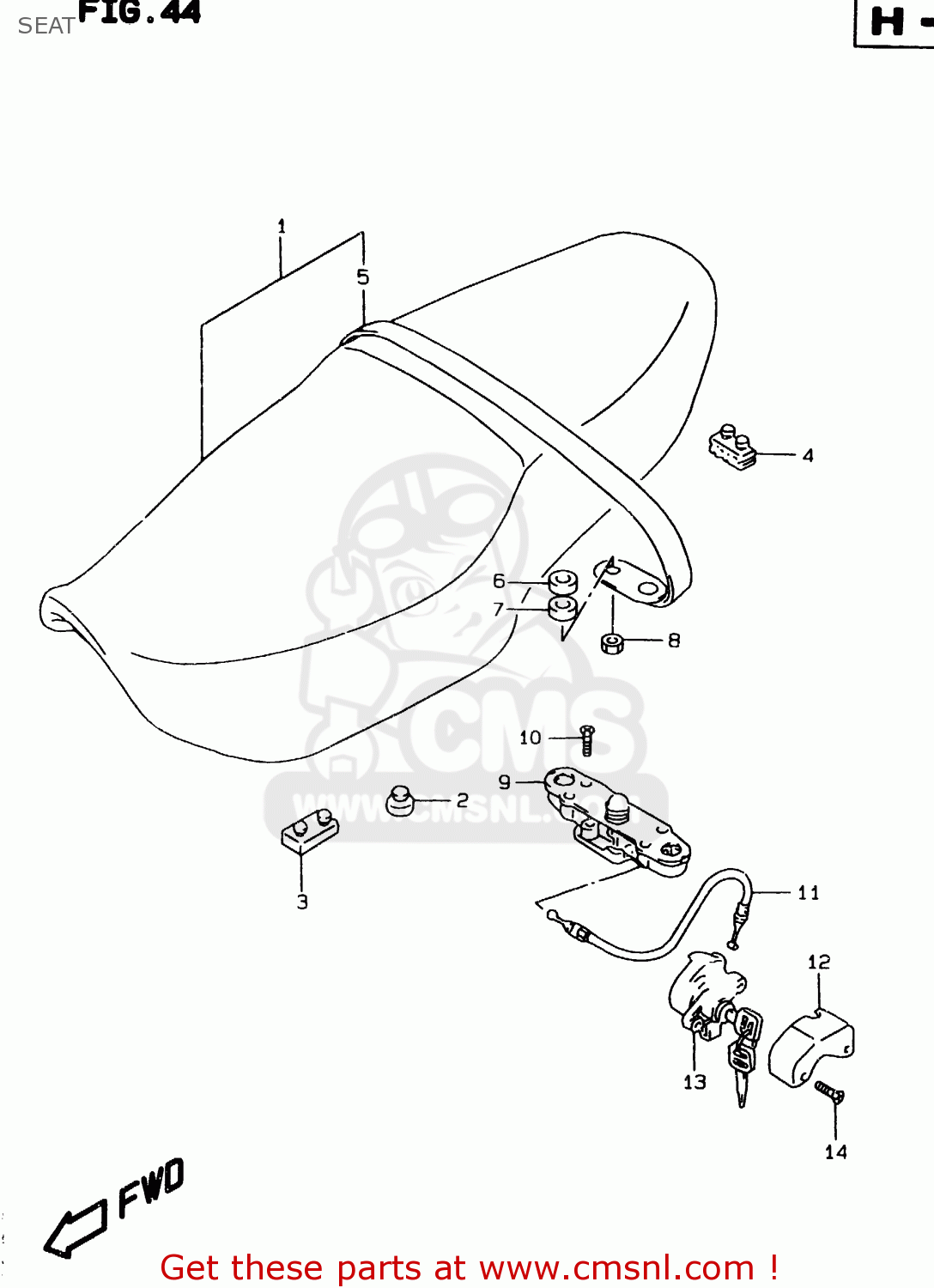

Seat diagram GSF1200SA 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

SEAT GSF1200SA 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

SEAT GSF1200SA 2000 (Y) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4510026E11P21
ref: 1
GSF1200T/V/W/X/ST/SV

SEAT ASSY

€ 820.00

1

4510026E60P21
ref: 1
GSF1200SAV/SAW/SAX

SEAT ASSY (BLACK)

€ 355.50

2

0932110012
ref: 2

CUSHION

€ 3.00

3

0932108006
ref: 3

CUSHION

€ 3.00

4

4514931300
ref: 4

CUSHION,SEAT(40X20X15)

€ 2.00

5

4518026E01P21
ref: 5

BAND ASSY,SEAT(BLACK)

€ 29.50

6

0932010038
ref: 6

CUSHION

€ 4.00

7

0932014017
ref: 7

CUSHION

€ 3.00

8

0831620063
ref: 8

NUT

€ 2.00

9

4522013601
ref: 9

LOCK ASSY,SEAT STRIKER

€ 47.00

10

0211206303
ref: 10

SCREW 6X30

€ 2.50

11

4528008A00
ref: 11

CABLE,SEAT LOCK

€ 13.00

12

4528926E00
ref: 12

GUARD,SEAT LOCK

€ 13.00

13

9570010833
ref: 13

LOCK SET,SEAT & HELMET

€ 99.50

14

0913906092
ref: 14
GSF1200T/V/W/X/ST/SV

SCREW(6X14)

€ 3.50

14

4579126E00
ref: 14
GSF1200SAV/SAW/SAX

SCREW,SEAT LOCK

€ 2.50

all assemblies
