OIL PAN

GSF1200Z BANDIT 2002 (K2) USA (E03)

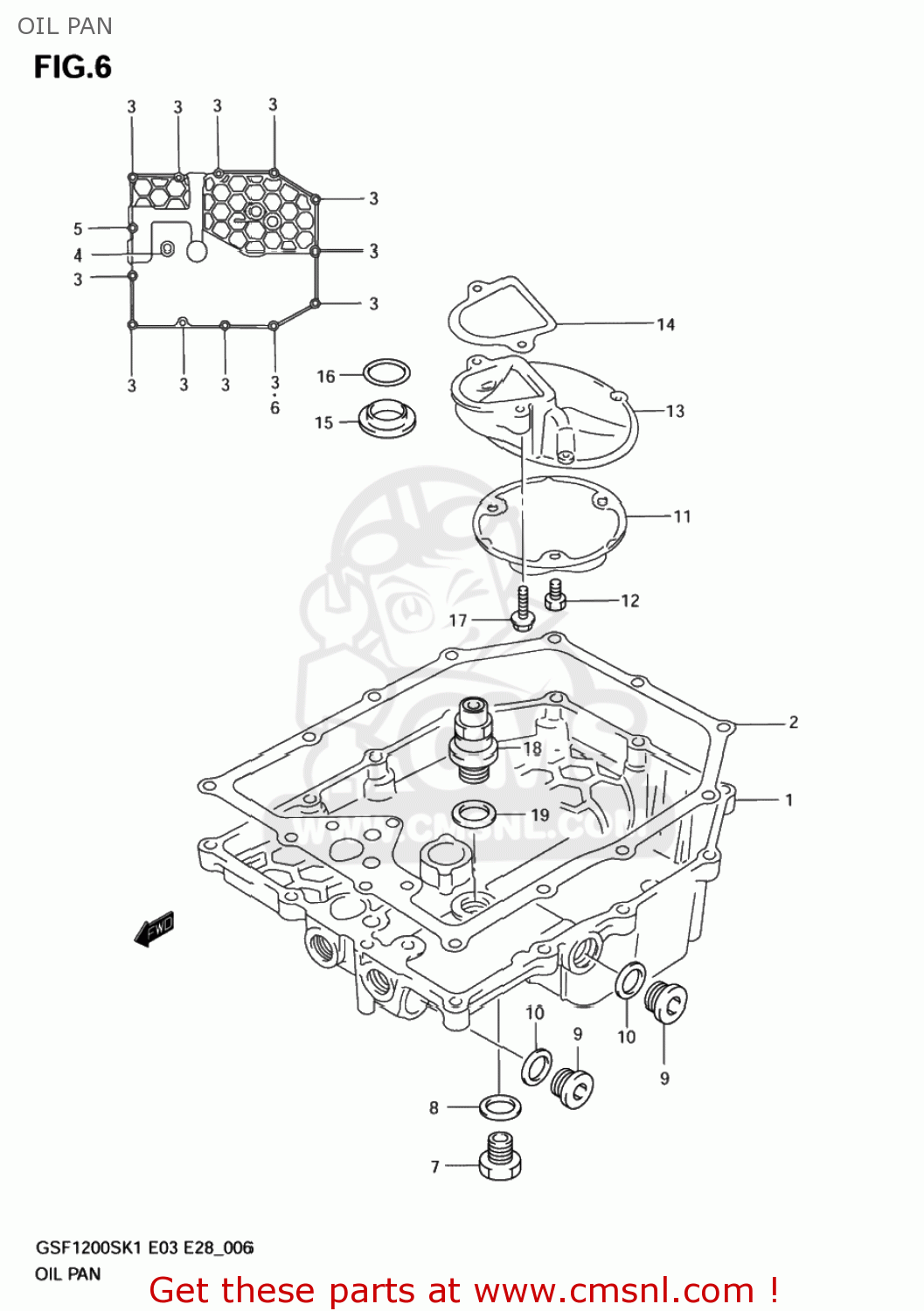

Oil pan diagram GSF1200Z BANDIT 2002 (K2) USA (E03)

OIL PAN GSF1200Z BANDIT 2002 (K2) USA (E03)
OIL PAN GSF1200Z BANDIT 2002 (K2) USA (E03)
OIL PAN GSF1200Z BANDIT 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1151126E00
ref: 1-1
11511-26E01
PAN,OIL
€ 260.50
1-2
1151126E01
ref: 1-2
PAN,OIL
1151126E01
€ 260.50
2
1148927A21
ref: 2
GASKET,OIL PAN(ASB) (NAS)
1148927A21
€ 23.00
3
0155006253
ref: 3
01550-0625A
BOLT
0155006253
€ 2.50
4
0155006303
ref: 4
01550-0630A
BOLT
0155006303
€ 2.50
5
0155006503
ref: 5
01550-0650A
BOLT
0155006503
€ 2.00
6
0916806023
ref: 6
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
7-1
0924714002
ref: 7-1
PLUG(MAGNETO)
0924714002
€ 5.00
7-2
0924714026
ref: 7-2
PLUG(14X12)
0924714026
€ 3.50
8
0916814002
ref: 8
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
9
0924816012
ref: 9
PLUG,16X8
0924816012
€ 4.50
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
11
1652009301
ref: 11
STRAINER,ENGINE OIL
1652009301
€ 14.00
12
0157006123
ref: 12
01570-0612A
BOLT
0157006123
€ 1.50
13
1652506B00
ref: 13
PROTECTOR,OIL STRAINER
1652506B00
€ 33.50
14-1
1652827A20
ref: 14-1
16528-27A21
GASKET,OIL STRAINER PROTECTOR (NAS)
1652827A20
€ 9.00
14-2
1652827A21
ref: 14-2
GASKET,OIL STR PROTECTOR (NAS)
1652827A21
€ 9.00
15
1652927A01
ref: 15
GASKET,OIL OUTLET (NAS)
1652927A01
€ 2.00
16
0928018009
ref: 16
O RING(D:3.2,ID:17.8)
0928018009
€ 8.00
17
0155006253
ref: 17
01550-0625A
BOLT
0155006253
€ 2.50
18
1644017C01
ref: 18
16440-17C10
VALVE ASSEMBLY,OIL RELIEF
1644017C01
€ 68.50
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
