Buy Suzuki GSF Parts Online


SEAT TAIL COVER (GSF1200SK3)

GSF1200Z BANDIT 2002 (K2) USA (E03)

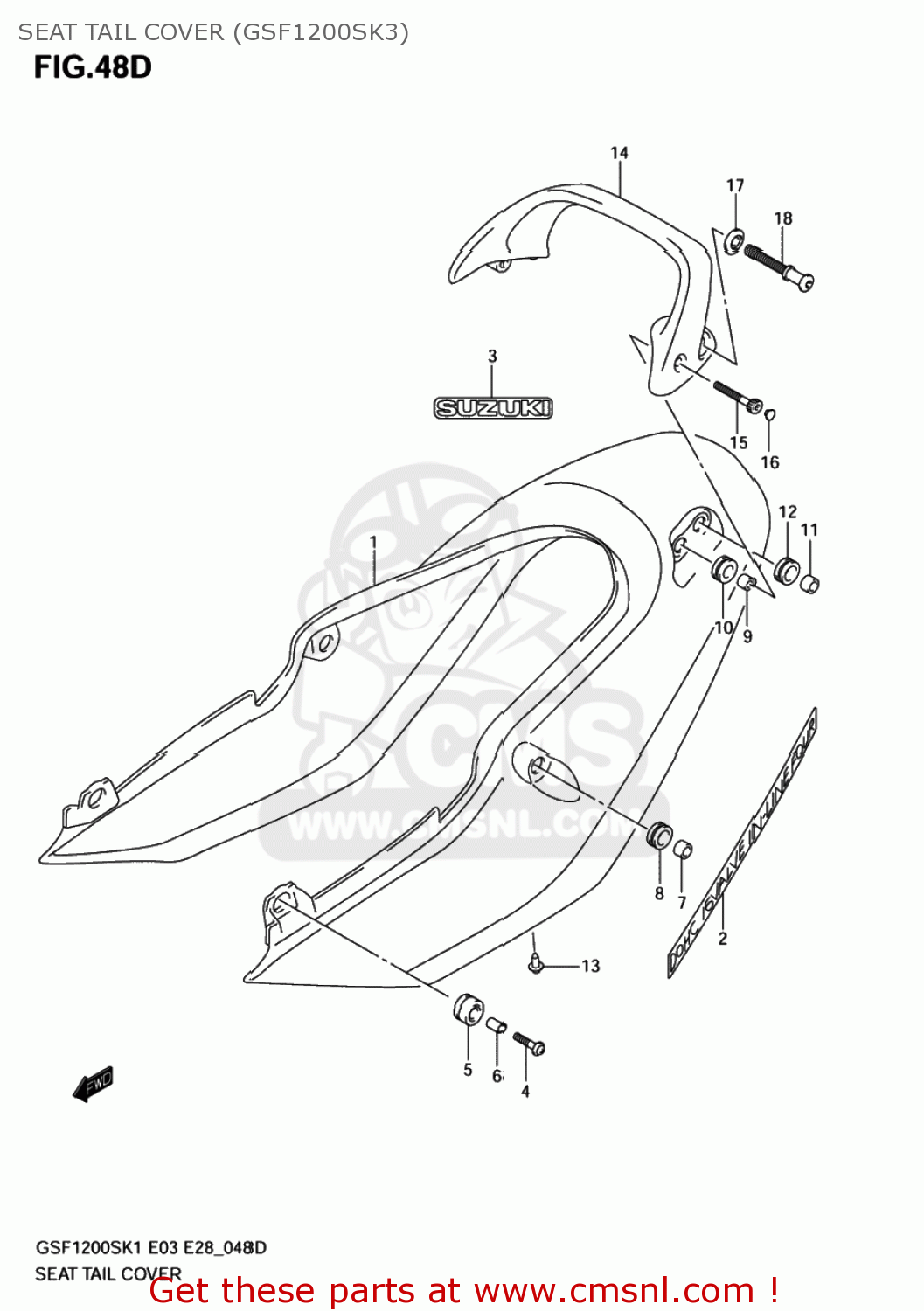

Seat tail cover (gsf1200sk3) diagram GSF1200Z BANDIT 2002 (K2) USA (E03)

SEAT TAIL COVER (GSF1200SK3) GSF1200Z BANDIT 2002 (K2) USA (E03)
SEAT TAIL COVER (GSF1200SK3) GSF1200Z BANDIT 2002 (K2) USA (E03)
SEAT TAIL COVER (GSF1200SK3) GSF1200Z BANDIT 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4551032F30YV4
ref: 1-1
COVER,SEAT TAIL
€ 298.50
1-2
4551032F30YD8
ref: 1-2
COVER,SEAT TAIL
€ 275.50
1-3
4551032F30YAR
ref: 1-3
COVER,SEAT TAIL(BLUE)
€ 275.50
2-1
6813132F10LU5
ref: 2-1
EMBLEM,SEAT TAIL COVER
6813132F10LU5
€ 9.50
2-2
6813132F10GW5
ref: 2-2
EMBLEM,SEAT TAIL COVER
6813132F10GW5
€ 9.50
2-3
6813132F10LU6
ref: 2-3
EMBLEM,SEAT TAIL COVER
€ 10.50
3-1
6816532F00LU5
ref: 3-1
EMBLEM,SUZUKI
6816532F00LU5
€ 7.50
3-2
6816532F00GW5
ref: 3-2
EMBLEM,SUZUKI
6816532F00GW5
€ 6.50
3-3
6816532F00LU6
ref: 3-3
EMBLEM,SUZUKI
6816532F00LU6
€ 6.00
4
0913606083
ref: 4
SCREW(6X30)
0913606083
€ 3.00
5
4711519F00
ref: 5
CUSHION,SEAT TAIL COVER FR
4711519F00
€ 14.50
6
0918006291
ref: 6
SPACER(6.5X10X13)
0918006291
€ 2.00
7
0918008199
ref: 7
SPACER,8.5X14X9
0918008199
€ 2.50
8
0932014023
ref: 8
CUSHION
0932014023
€ 5.00
9
0918006300
ref: 9
SPACER(6.5X12X9)
0918006300
€ 5.50
10
0932012068
ref: 10
CUSHION
0932012068
€ 3.50
11
0918008199
ref: 11
SPACER,8.5X14X9
0918008199
€ 2.50
12
0932014023
ref: 12
CUSHION
0932014023
€ 5.00
13
09409063145PK
ref: 13
CLIP(BLACK)
09409063145PK
€ 3.50
14-1
4621132F00YV4
ref: 14-1
HANDLE,PILLION RIDER
€ 102.00
14-2
4621132F00YD8
ref: 14-2
HANDLE,PILLION
€ 166.50
14-3
4621132F00YAR
ref: 14-3
HANDLE,PILLION RIDER
4621132F00YAR
€ 102.00
15
0712006453
ref: 15
07120-0645B
06453
€ 3.50
16
0925005009
ref: 16
CAP(OD:10)
0925005009
€ 2.50
17
4631731F00
ref: 17
WASHER,HOOK
4631731F00
€ 5.50
18
4631631F00
ref: 18
HOOK,PILLION RIDER HANDLE
4631631F00
€ 11.00
