CARBURETOR (MODEL V/W)

GSF600 1995 (S) (E02 E04 E18 E22 E25 E34)

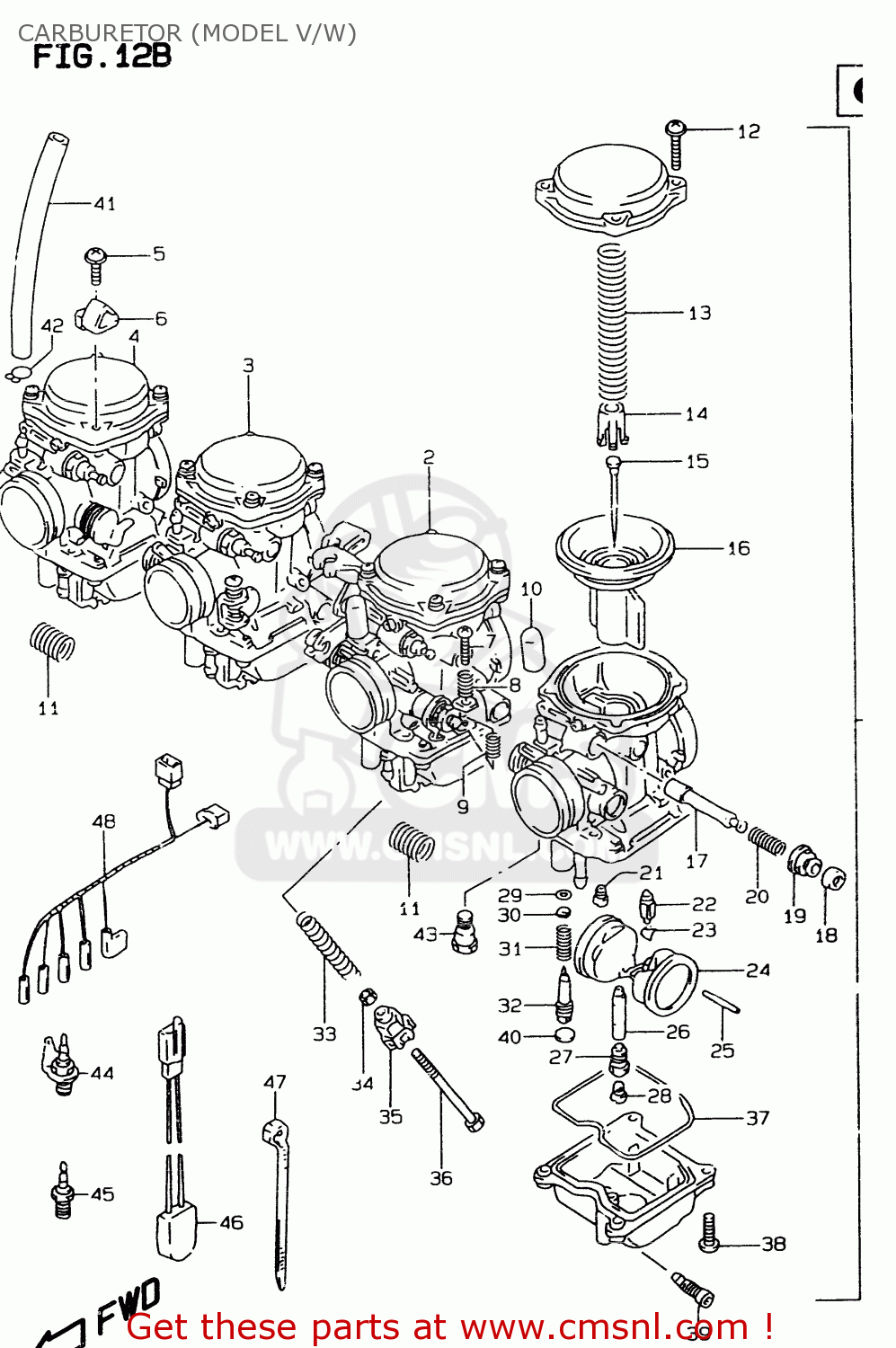

Carburetor (model v/w) diagram GSF600 1995 (S) (E02 E04 E18 E22 E25 E34)

CARBURETOR (MODEL V/W) GSF600 1995 (S) (E02 E04 E18 E22 E25 E34)
CARBURETOR (MODEL V/W) GSF600 1995 (S) (E02 E04 E18 E22 E25 E34)
CARBURETOR (MODEL V/W) GSF600 1995 (S) (E02 E04 E18 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1320126E70
ref: 1-1
E2
CARBURETOR ASSY, LH
€ 0.00
1-2
1320126E00
ref: 1-2
E4,E25,E34
CARBURETOR ASSY, LH
1320126E00
€ 411.50
1-3
1320126E20
ref: 1-3
E18
CARBURETOR ASSY, LH
€ 424.50
1-4
1320126E30
ref: 1-4
GSF600V/W/SV/SW E17,
CARBURETOR ASSY, LH
€ 0.00
1-5
1320126E40
ref: 1-5
GSF600UV/UW/SUV/SUW
CARBURETOR ASSY, LH
€ 0.00
1-6
1320126E60
ref: 1-6
E37
CARBURETOR ASSY, LH
€ 0.00
2-1
1320226E70
ref: 2-1
E2
CARBURETOR ASSY, ML
€ 0.00
2-2
1320226E00
ref: 2-2
E4,E25,E34
CARBURETOR ASSY, ML
1320226E00
€ 391.50
2-3
1320226E20
ref: 2-3
E18
CARBURETOR ASSY, ML
€ 0.00
2-4
1320226E30
ref: 2-4
GSF600V/W/SV/SW E17,
CARBURETOR ASSY, ML
€ 0.00
2-5
1320226E40
ref: 2-5
GSF600UV/UW/SUV/SUW
CARBURETOR ASSY, ML
€ 0.00
2-6
1320226E60
ref: 2-6
E37
CARBURETOR ASSY, ML
€ 0.00
3-1
1320326E70
ref: 3-1
E2
CARBURETOR ASSY, MR
€ 0.00
3-2
1320326E00
ref: 3-2
E4,E25,E34
CARBURETOR ASSY, MR
1320326E00
€ 505.50
3-3
1320326E20
ref: 3-3
E18
CARBURETOR ASSY, MR
€ 0.00
3-4
1320326E30
ref: 3-4
GSF600V/W/SV/SW E17,
CARBURETOR ASSY, MR
€ 0.00
3-5
1320326E40
ref: 3-5
GSF600UV/UW/SUV/SUW
CARBURETOR ASSY, MR
€ 0.00
3-6
1320326E60
ref: 3-6
E37
CARBURETOR ASSY, MR
€ 0.00
4-1
1320426E70
ref: 4-1
E2
CARBURETOR ASSY, RH
€ 0.00
4-2
1320426E00
ref: 4-2
E4,E25,E34
CARBURETOR ASSY, RH
1320426E00
€ 416.00
4-3
1320426E20
ref: 4-3
E18
CARBURETOR ASSY, RH
€ 0.00
4-4
1320426E30
ref: 4-4
GSF600V/W/SV/SW E17,
CARBURETOR ASSY, RH
€ 0.00
4-5
1320426E40
ref: 4-5
GSF600UV/UW/SUV/SUW
CARBURETOR ASSY, RH
€ 0.00
4-6
1320426E60
ref: 4-6
E37
CARBURETOR ASSY, RH
€ 0.00
5
1360226E30
ref: 5
SCREW
1360226E30
€ 3.00
6
1362426E00
ref: 6
STAY,PLATE
1362426E00
€ 16.00
7
1326726E10
ref: 7
SCREW
1326726E10
€ 3.50
8
1327126E10
ref: 8
SPRING
1327126E10
€ 4.50
9
1326826E10
ref: 9
SPRING
1326826E10
€ 5.00
10
1350826E00
ref: 10
CAP
1350826E00
€ 6.00
11
1327126E20
ref: 11
SPRING
€ 6.00
12
0211204163
ref: 12
<-13602-26E00
SCREW 4X16
0211204163
€ 1.00
13
1341726E00
ref: 13
SPRING
1341726E00
€ 11.50
14
1338226E00
ref: 14
SEAT,SPRING
1338226E00
€ 15.00
15-1
1338326E00
ref: 15-1
NEEDLE,JET
1338326E00
€ 16.50
15-2
1338326E10
ref: 15-2
E18
NEEDLE,JET
€ 12.50
16-1
1350026E00
ref: 16-1
PISTON
€ 117.50
16-2
1350026E10
ref: 16-2
GSF600UV/UW/SUV/SUW
PISTON
1350026E10
€ 148.00
16-3
1350026E20
ref: 16-3
E18
PISTON
1350026E20
€ 93.50
17
1341126E00
ref: 17
VALVE,STARTER
1341126E00
€ 52.50
18
1341926E00
ref: 18
CAP
1341926E00
€ 7.00
19
1341826E00
ref: 19
CAP
1341826E00
€ 7.00
20
1341726E10
ref: 20
SPRING
1341726E10
€ 7.00
21
0949235020
ref: 21
JET,SLOW(35)
0949235020
€ 13.50
22
1337026E00
ref: 22
VALVE ASSY,NEEDLE
1337026E00
€ 17.50
23
1337526E00
ref: 23
CLIP
1337526E00
€ 5.50
24
1325026E00
ref: 24
FLOAT ASSY
1325026E00
€ 64.00
25
1325426E00
ref: 25
PIN,FLOAT
1325426E00
€ 3.00
26-1
0949400863
ref: 26-1
JET,NEEDLE
0949400863
€ 26.50
26-2
0949400869
ref: 26-2
E18
JET,NEEDLE
0949400869
€ 36.50
27
1333126E00
ref: 27
HOLDER,NEEDLE JET
1333126E00
€ 23.50
28-1
0949198008
ref: 28-1
#1,#4
JET,MAIN(98)
0949198008
€ 16.50
28-2
0949120023
ref: 28-2
#2,#3
JET,MAIN(100)
0949120023
€ 14.50
28-3
0949120023
ref: 28-3
E18:#1,#4
JET,MAIN(100)
0949120023
€ 14.50
28-4
0949120024
ref: 28-4
E18:#2,#3
JET,MAIN(102)
0949120024
€ 16.00
29
1329526E00
ref: 29
O RING
1329526E00
€ 4.50
30
1329126E00
ref: 30
WASHER
1329126E00
€ 3.00
31
1326826E00
ref: 31
SPRING
1326826E00
€ 5.00
32-1
1327926E00
ref: 32-1
SCREW,ADJUST
1327926E00
€ 11.00
32-2
1327926E00
ref: 32-2
E18
SCREW,ADJUST
1327926E00
€ 11.00
33
1327126E00
ref: 33
SPRING
1327126E00
€ 5.50
34
1342726E00
ref: 34
WASHER
1342726E00
€ 2.50
35
1326926E00
ref: 35
HOLDER,ADJUST
1326926E00
€ 8.50
36
1326726E00
ref: 36
BOLT
1326726E00
€ 10.00
37
1325826E00
ref: 37
O RING
1325826E00
€ 8.50
38
1360226E10
ref: 38
SCREW
1360226E10
€ 6.00
39
1324726E00
ref: 39
PLUG,DRAIN
1324726E00
€ 15.50
40
1328126E00
ref: 40
E18
CAP
1328126E00
€ 6.00
41
0935250903600
ref: 41
L:600->250
HOSE(5X9X600)
0935250903600
€ 28.50
42
1367126E00
ref: 42
CLIP
1367126E00
€ 3.50
43
1361326E70
ref: 43
E2
ADAPTER,HEATER
1361326E70
€ 21.00
44
1365025E01
ref: 44
E2
HEATER ASSY,CARBURETOR(15W)
1365025E01
€ 35.00
45
1365125E01
ref: 45
E2
HEATER, CARB.
€ 35.00
46
1365525E00
ref: 46
E2
THERMO SWITCH,CARB HEATER
1365525E00
€ 36.00
47
0940718403
ref: 47
E2
CLAMP L:165
€ 2.50
48
3685621E00
ref: 48
E2
WIRE,CARB HEATER LEAD
3685621E00
€ 79.50
