FUEL TANK (MODEL S/T)

GSF600 1995 (S) (E02 E04 E18 E22 E25 E34)

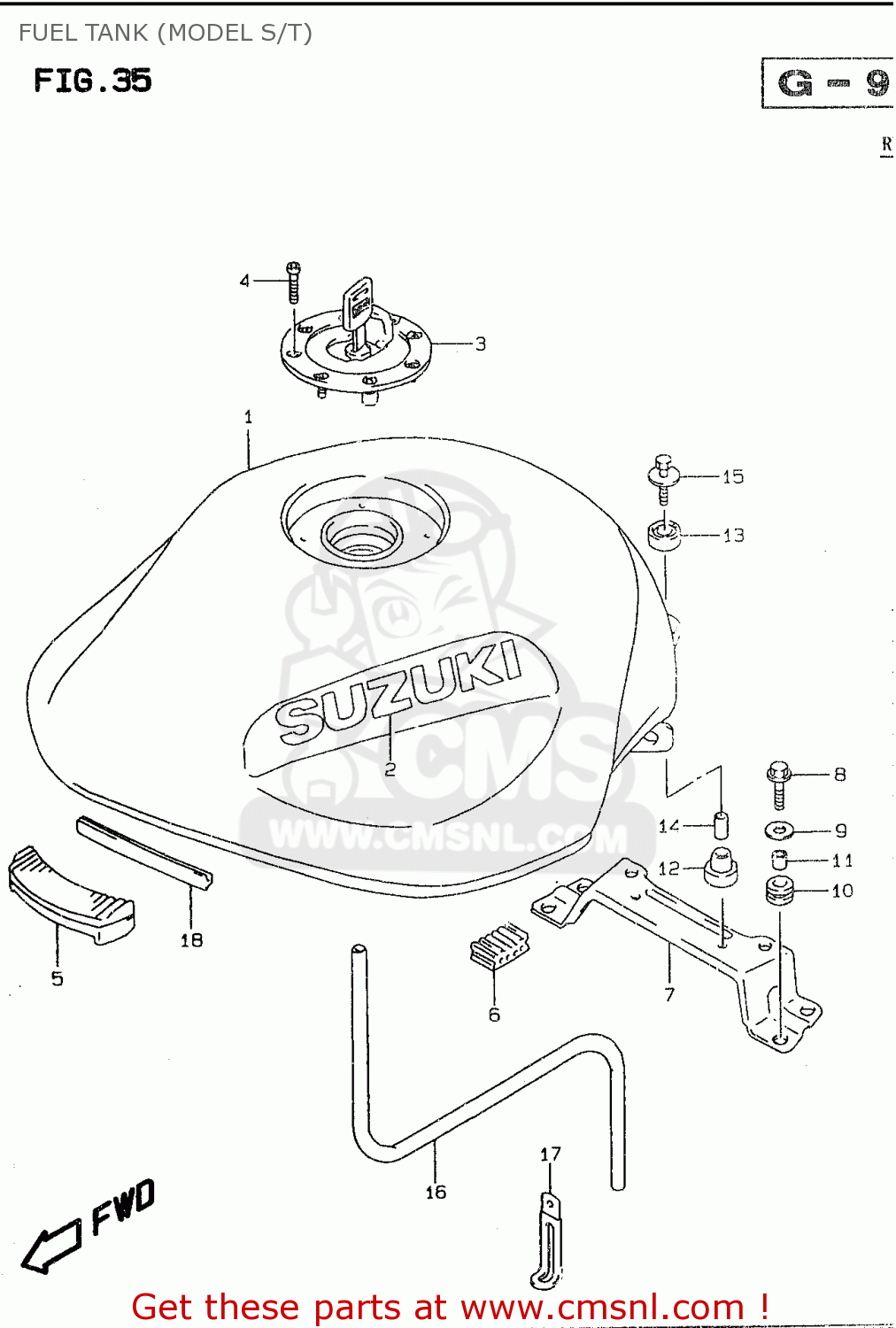

Fuel tank (model s/t) diagram GSF600 1995 (S) (E02 E04 E18 E22 E25 E34)

FUEL TANK (MODEL S/T) GSF600 1995 (S) (E02 E04 E18 E22 E25 E34)

FUEL TANK (MODEL S/T) GSF600 1995 (S) (E02 E04 E18 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

4410026E0028V
ref: 1-1

TANK ASSEMBLY,FUEL

€ 506.50

1-2

4410026E000WP
ref: 1-2

TANK ASSEMBLY,FUEL

€ 524.50

1-3

4410026E001ZV
ref: 1-3
MODEL T

TANK ASSY,FUEL

€ 831.00

2-1

6811147C0029F
ref: 2-1
FOR 28V

EMBLEM,FUEL TANK

€ 16.00

2-2

6811147C0024G
ref: 2-2
FOR 0WP

EMBLEM,FUEL TANK

€ 17.50

2-3

6811147C000FP
ref: 2-3
MODEL T FOR 1ZV

EMBLEM,FUEL TA

€ 9.00

3

4420101832
ref: 3

CAP SET,FUEL TANK

€ 204.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

4451134A00
ref: 5

CUSHION,FUEL TANK FR

€ 15.00

6

4514931300
ref: 6

CUSHION,SEAT(40X20X15)

€ 2.00

7

4453026E00
ref: 7

BRACKET,FUEL TANK RR

€ 35.00

8-1

0155006203
ref: 8-1
MODEL S

BOLT

€ 2.50

8-2

0911606146
ref: 8-2
MODEL T

BOLT(6X25)

€ 2.50

9

0916006056
ref: 9
MODEL S

WASHER(6.5X18X1)

€ 2.00

10-1

0932009036
ref: 10-1
MODEL S

CUSHION

€ 4.00

10-2

0932009009
ref: 10-2
MODEL T

CUSHION

€ 5.00

11-1

0918006257
ref: 11-1
MODEL S

SPACER(6.5X9X6.5)

€ 2.50

11-2

0916906062
ref: 11-2
MODEL T

WASHER

€ 3.00

12

0932010038
ref: 12

CUSHION

€ 4.00

13

0932014017
ref: 13

CUSHION

€ 3.00

14

0918006271
ref: 14

SPACER(6.5X9X18)

€ 2.00

15

0911606172
ref: 15

BOLT(6X30)

€ 2.50

16

093527010300B
ref: 16

HOSE(7X10.2X2000)

€ 17.50

17

0940410417
ref: 17

CLAMP(L:97)

€ 2.50

18

6824140A10
ref: 18

MOLDING,FUEL TANK

€ 23.00
