BATTERY

GSF600U 1997 (V) GERMANY (E22)

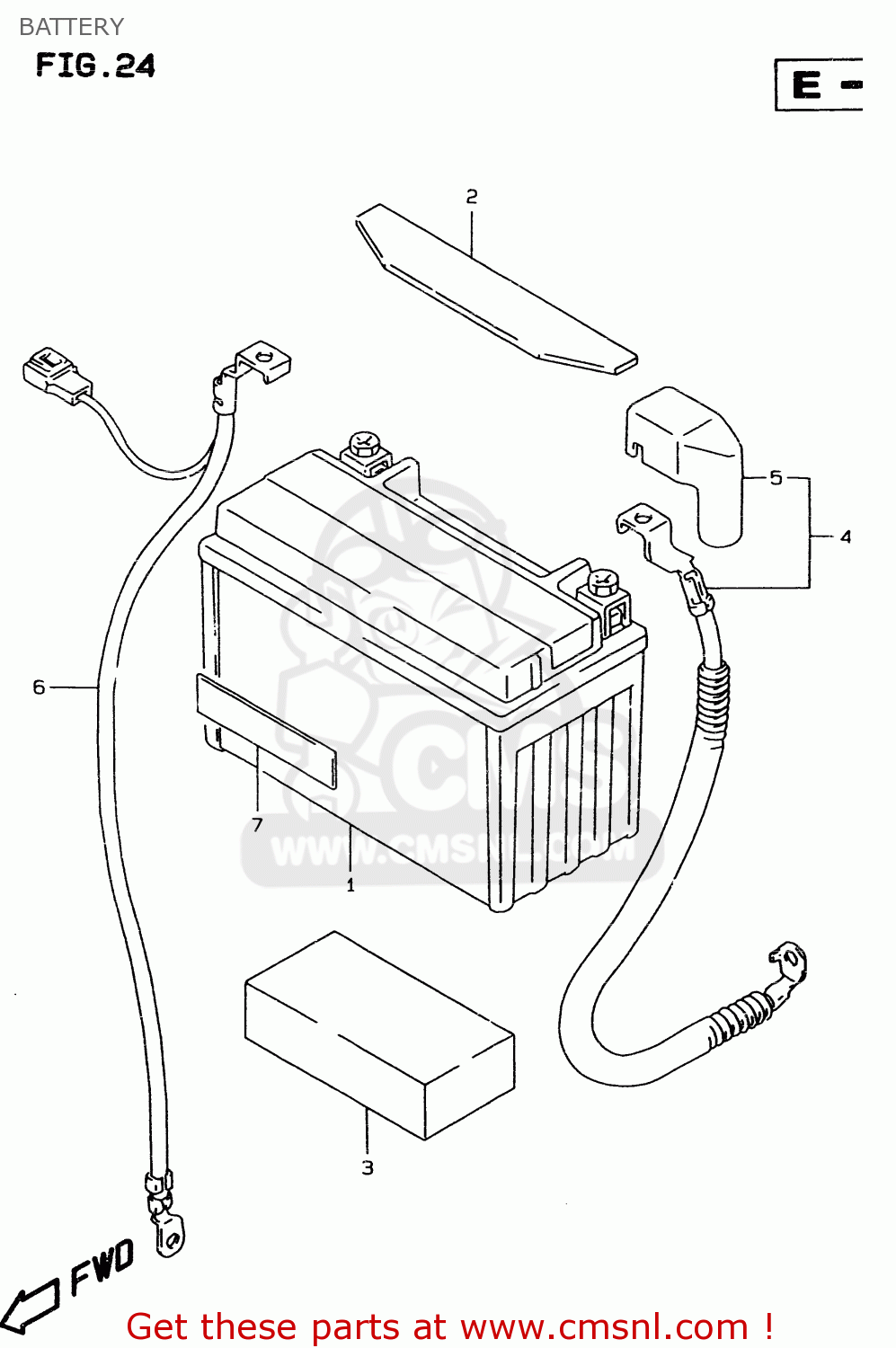

Battery diagram GSF600U 1997 (V) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

3365126400
ref: 2

PROTECTOR,BATTERY

€ 4.00

3-1

3365247D00
ref: 3-1
MODEL S/T

PROTECTOR,BATTERY

€ 7.00

3-2

3365247D01
ref: 3-2
MODEL V/W

CUSHION,BATTERY

€ 7.00

3382026E00
ref: 4

WIRE,BATTERY PLUS LEAD

€ 27.00

3362443500
ref: 5

CAP,BATTERY PLUS TERMINAL

€ 3.50

3386046E00
ref: 6

WIRE,BATTERY MINUS

€ 27.50

3365226E00
ref: 7

PROTECTOR(20X90)X1.0

€ 3.00
