CRANKCASE COVER
GSF600U 1997 (V) GERMANY (E22)

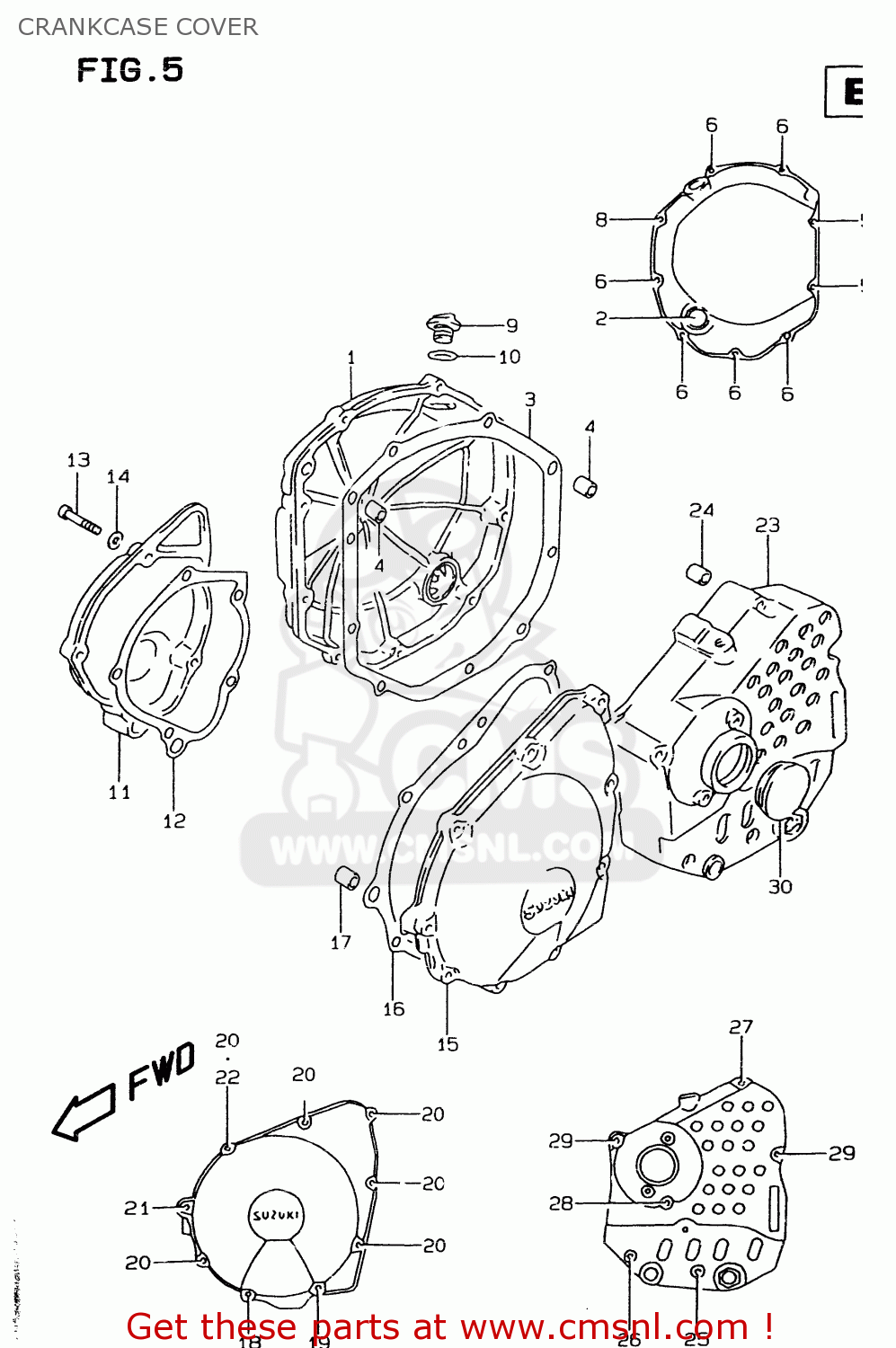

Crankcase cover diagram GSF600U 1997 (V) GERMANY (E22)
CRANKCASE COVER GSF600U 1997 (V) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
1134026E00
ref: 1
COVER,CLUTCH
€ 207.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148227A20
ref: 3
GASKET,CL COVER (NAS)
€ 18.00
4
0421109189
ref: 4
PIN
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
€ 2.00
6
0713006253
ref: 6
BOLT,CL.COVER
€ 3.00
7
0713006303
ref: 7
BOLT
€ 3.00
8
0713006353
ref: 8
BOLT
€ 3.50
9
0925920008
ref: 9
PLUG
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
€ 2.00
11
1138126D10
ref: 11
COVER,SIGNAL GENERATOR
€ 62.00
12
1149127A30
ref: 12
GASKET,SIGNAL GEN COVER (NAS)
€ 8.00
13
0910606082
ref: 13
BOLT(6X22)
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
€ 2.00
15
1135126E00
ref: 15
COVER,STARTER GEAR
€ 156.50
16
1148327A20
ref: 16
GASKET,STARTER GEAR COVER (NAS)
€ 14.50
17
0920611017
ref: 17
PIN(8.4X11X20)
€ 6.50
18
0713006163
ref: 18
BOLT,OIL FILLE
€ 3.00
19
0713006203
ref: 19
BOLT,CRKCASE,R
€ 3.00
20
0713006253
ref: 20
BOLT,CL.COVER
€ 3.00
21
0713006403
ref: 21
BOLT
€ 3.50
22
0916806024
ref: 22
GASKET(5.8X11X1.2) (NAS)
€ 2.00
23-1
1136126E00
ref: 23-1
MODEL S/T
COVER,ENGINE SPROCKET
€ 159.50
23-2
1136126E01
ref: 23-2
MODEL V/W
COVER,ENGINE SPROCKET
€ 159.50
24
0421109129
ref: 24
PIN
€ 2.00
25
0713006403
ref: 25
BOLT
€ 3.50
26
0713006303
ref: 26
BOLT
€ 3.00
27
0713006503
ref: 27
BOLT,CL.COVER
€ 3.00
28
0713006653
ref: 28
BOLT
€ 4.00
29
0713006703
ref: 29
BOLT
€ 4.00
30
0925030003
ref: 30
CAP(OD:36)
€ 4.00
