FRONT WHEEL (MODEL E)

GSX1100ES 1985 (F) (E01 E02 E17 E21 E22 E24 E25 E26 E34 E39)

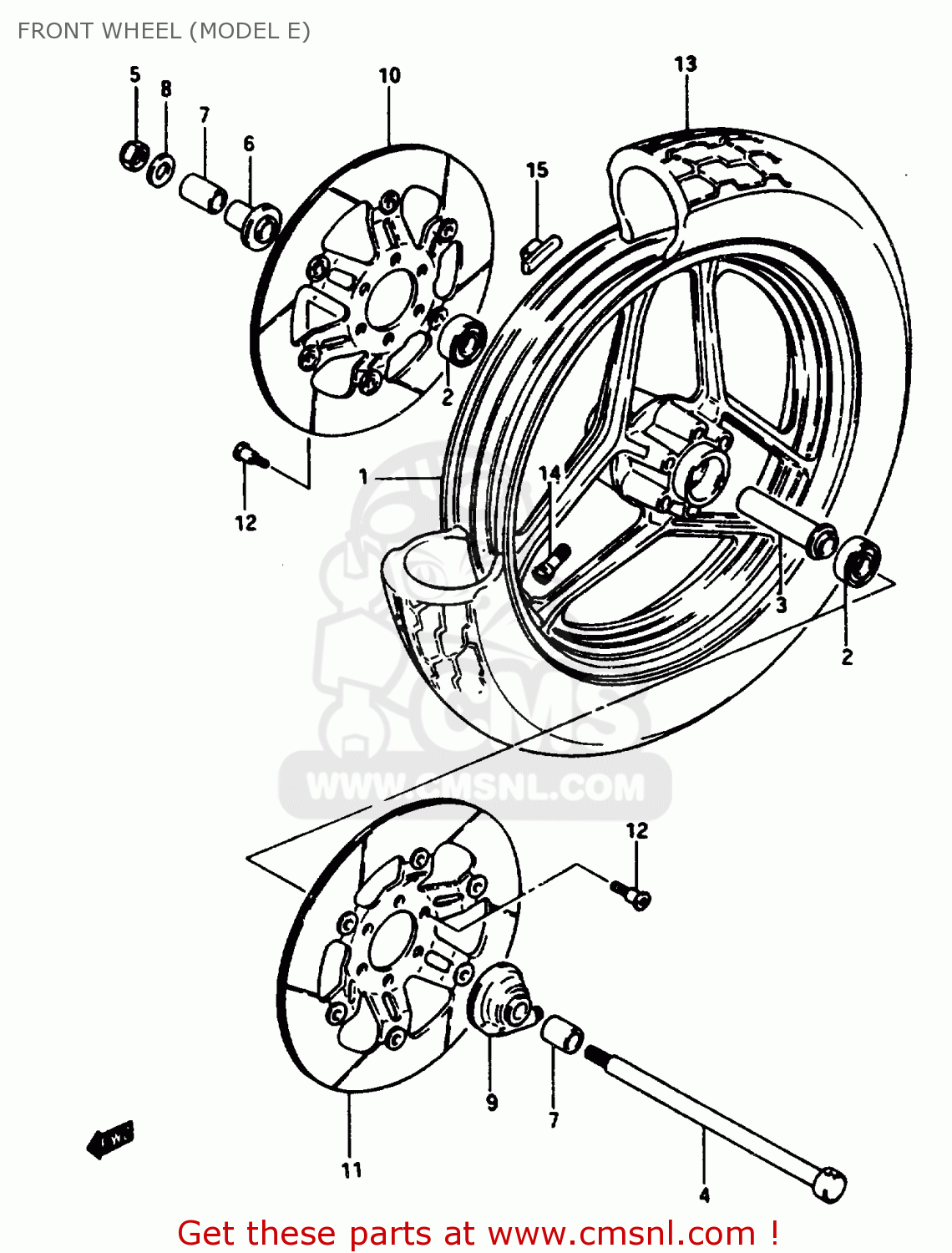

Front wheel (model e) diagram GSX1100ES 1985 (F) (E01 E02 E17 E21 E22 E24 E25 E26 E34 E39)

FRONT WHEEL (MODEL E) GSX1100ES 1985 (F) (E01 E02 E17 E21 E22 E24 E25 E26 E34 E39)

FRONT WHEEL (MODEL E) GSX1100ES 1985 (F) (E01 E02 E17 E21 E22 E24 E25 E26 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

5411100A0019T
ref: 1-1

CASTING WHEEL,

€ 616.00

1-2

5411100A00291
ref: 1-2
E16 -F.NO.100808

CASTING WHEEL,FRONT 2.50

€ 616.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473000A00
ref: 3

SPACER,FRONT HUB BEARING

€ 17.00

4

5471100A00
ref: 4

AXLE,FRONT

€ 34.50

5

0915912011
ref: 5

NUT

€ 8.50

6

5474018402
ref: 6

SPACER,FR AXLE,R

€ 18.50

7

0918015034
ref: 7

SPACER(15X22X30)

€ 7.00

8

0832221128
ref: 8

WASHER

€ 2.00

9

5460000A00
ref: 9

BOX ASSY,SPEEDOMETER GEAR

€ 90.00

10

5921000A00
ref: 10

DISC,BRAKE

€ 259.00

11

5922000A00
ref: 11

DISC,BRAKE

€ 312.00

12

0910608041
ref: 12

BOLT

€ 6.00

13-1

5510000A20
ref: 13-1
GSX1100EE

TIRE, T/L FRONT (110/90V16) BS

€ 0.00

13-2

5510000A25
ref: 13-2
GSX1100ESE/EFE

TIRE, T/L FRONT (110/90V16) BS

€ 0.00

13-3

5510000A70
ref: 13-3
GSX1100ESE/EFE E24

TIRE, T/L FRONT (120/80V16) BS

€ 151.00

14

4313075150
ref: 14

VALVE,TIRE

€ 14.50

15-1

5541100A0019T
ref: 15-1

BALANCER,WHEEL

€ 6.50

15-2

5541200A0019T
ref: 15-2

BALANCER,WHEEL

€ 7.00

15-3

5541300A0019T
ref: 15-3

BALANCER,WHEEL

€ 4.00

15-4

5541100A00291
ref: 15-4
E16 -F.NO.100808

BALANCER,WHEEL

€ 6.50

15-5

5541200A00291
ref: 15-5
E16 -F.NO.100808

BALANCER,WHEEL

€ 7.00

15-6

5541300A00291
ref: 15-6
E16 -F.NO.100808

BALANCER,WHEEL

€ 4.00
