FUEL TANK (GSX1100EFE E2)

GSX1100ES 1985 (F) (E01 E02 E17 E21 E22 E24 E25 E26 E34 E39)

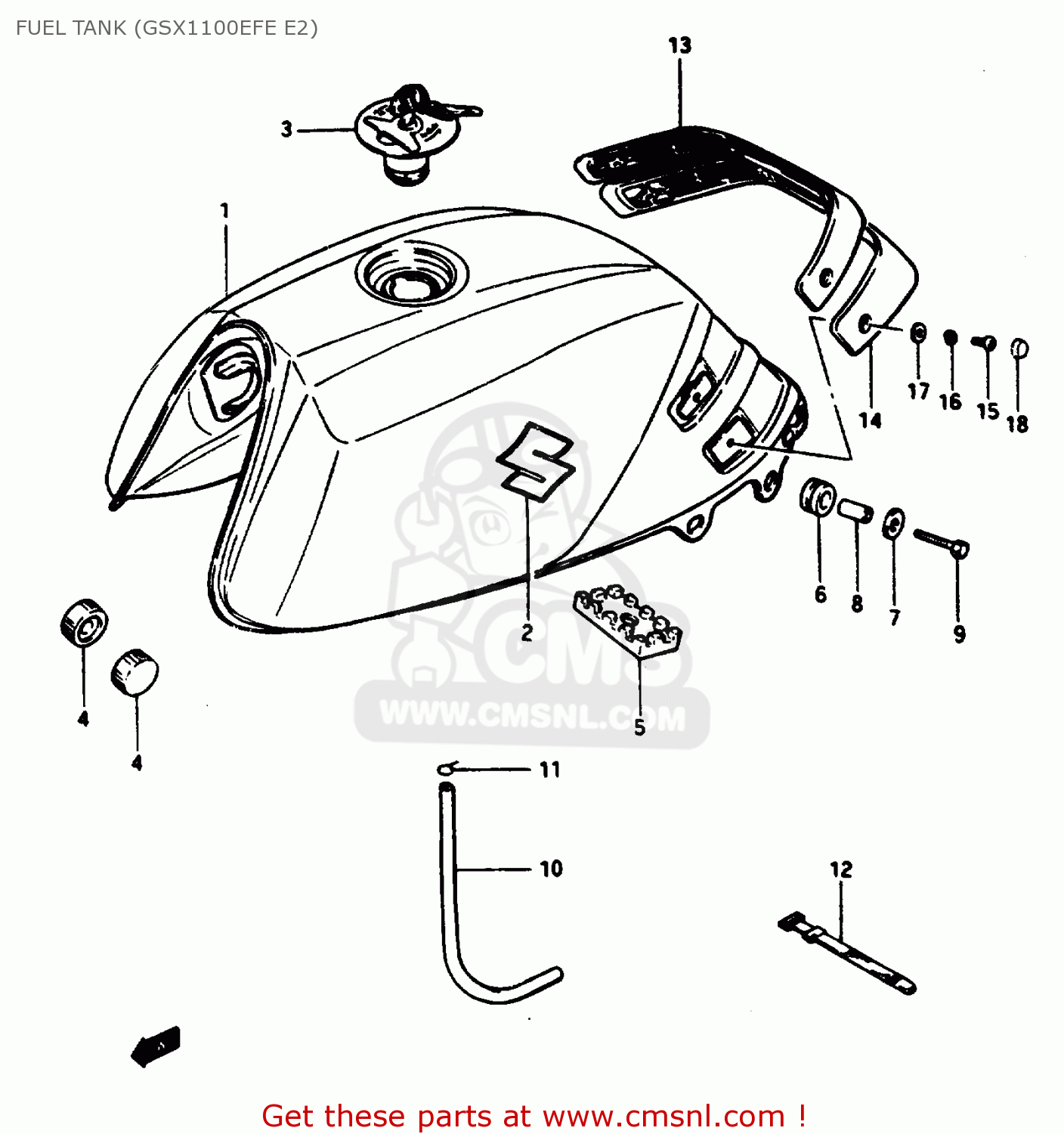

Fuel tank (gsx1100efe e2) diagram GSX1100ES 1985 (F) (E01 E02 E17 E21 E22 E24 E25 E26 E34 E39)

FUEL TANK (GSX1100EFE E2) GSX1100ES 1985 (F) (E01 E02 E17 E21 E22 E24 E25 E26 E34 E39)
FUEL TANK (GSX1100EFE E2) GSX1100ES 1985 (F) (E01 E02 E17 E21 E22 E24 E25 E26 E34 E39)
FUEL TANK (GSX1100EFE E2) GSX1100ES 1985 (F) (E01 E02 E17 E21 E22 E24 E25 E26 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
4410000A5014L
ref: 1
TANK ASSY, FUEL (WHITE)
€ 441.00
2
681664341069L
ref: 2
EMBLEM, "S" MARK
€ 4.50
3
4420043410KEY
ref: 3
CAP ASSY,FUEL TANK
4420043410KEY
€ 125.50
4
0932910016
ref: 4
CUSHION
0932910016
€ 3.00
5
4454134500
ref: 5
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
6
0932009017
ref: 6
CUSHION
0932009017
€ 3.00
7
0916006030
ref: 7
WASHER (6.5X29X1.6)
0916006030
€ 2.50
8
0918006107
ref: 8
SPACER (6.4X9X20)
0918006107
€ 3.00
9
0110706307
ref: 9
BOLT 6X30
€ 2.50
10
0934305165
ref: 10
HOSE,FUEL
0934305165
€ 13.00
11
0940108402
ref: 11
CLIP
0940108402
€ 1.50
12
0940718401
ref: 12
CLAMP(L:187)
0940718401
€ 2.00
13
4425100A0057S
ref: 13
KNEE GRIP,FUEL TANK,UPPER
€ 39.00
14
4425200A0057S
ref: 14
GRIP,FUEL TANK KNEE LWR
4425200A0057S
€ 62.50
15
0211205088
ref: 15
SCREW
0211205088
€ 2.00
16
0832121057
ref: 16
LOCK WASHER
0832121057
€ 2.00
17
0832221057
ref: 17
WASHER
0832221057
€ 2.50
18
4425300A0057S
ref: 18
CAP,KNEE GRIP
4425300A0057S
€ 4.00
