ELECTRICAL

GSX1100ES 1986 (G) (E01 E16 E17 E21 E22 E25 E34)

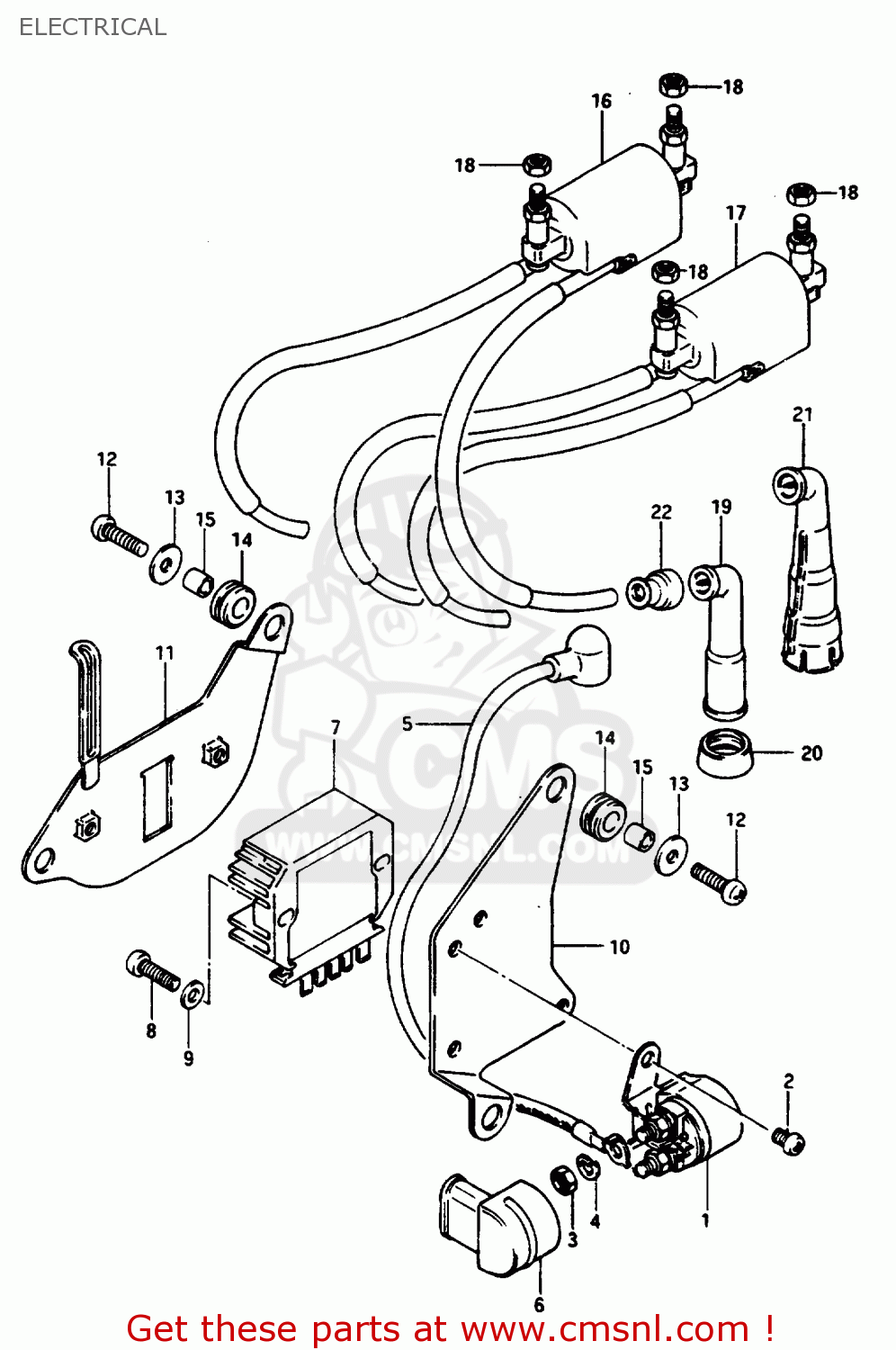

Electrical diagram GSX1100ES 1986 (G) (E01 E16 E17 E21 E22 E25 E34)

ELECTRICAL GSX1100ES 1986 (G) (E01 E16 E17 E21 E22 E25 E34)

ELECTRICAL GSX1100ES 1986 (G) (E01 E16 E17 E21 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

2

0211206106
ref: 2

SCREW

€ 1.50

3

0831011066
ref: 3

NUT

€ 2.00

4

0832121066
ref: 4

WASHER,LOCK

€ 2.00

5

3385000A00
ref: 5

WIRE,STARTER MOTOR LEAD

€ 24.00

6

3362400A00
ref: 6

CAP,STARTER RELAY TERMINAL

€ 3.50

7

3280000A00
ref: 7

RECTIFIER ASSEMBLY

€ 311.00

8

0211206206
ref: 8

SCREW

€ 2.00

9

0832221066
ref: 9

WASHER, LOWER

€ 2.00

10

4741000A00
ref: 10

HOLDER COMP,ELECTRONIC PARTS

€ 0.00

11

4742000A00
ref: 11

PLATE,ELECTRIC PARTS H

€ 7.00

12

0211206168
ref: 12

SCREW

€ 2.50

13

0916006007
ref: 13

WASHER

€ 2.00

14

0932008007
ref: 14

CUSHION

€ 4.00

15

0918006027
ref: 15

SPACER (6.3X9.1X6.7)

€ 3.00

16

3341031310
ref: 16

COIL ASSEMBLY,IGNITION

€ 182.00

17

3342031310
ref: 17

COIL ASSEMBLY,IGNITION NO

€ 182.00

18

0831011066
ref: 18

NUT

€ 2.00

19

3351000A00
ref: 19

CAP,SPARK PLUG

€ 23.00

20

3354124510
ref: 20

SEAL,SPARK PLUG CAP

€ 7.00

21

3351045411
ref: 21
E16

CAP, SPARK PLUG

€ 29.50

22

3354298000
ref: 22

SEAL,SPARK PLU

€ 4.50
