SIGNAL GENERATOR

GSX1100ES 1986 (G) (E01 E16 E17 E21 E22 E25 E34)

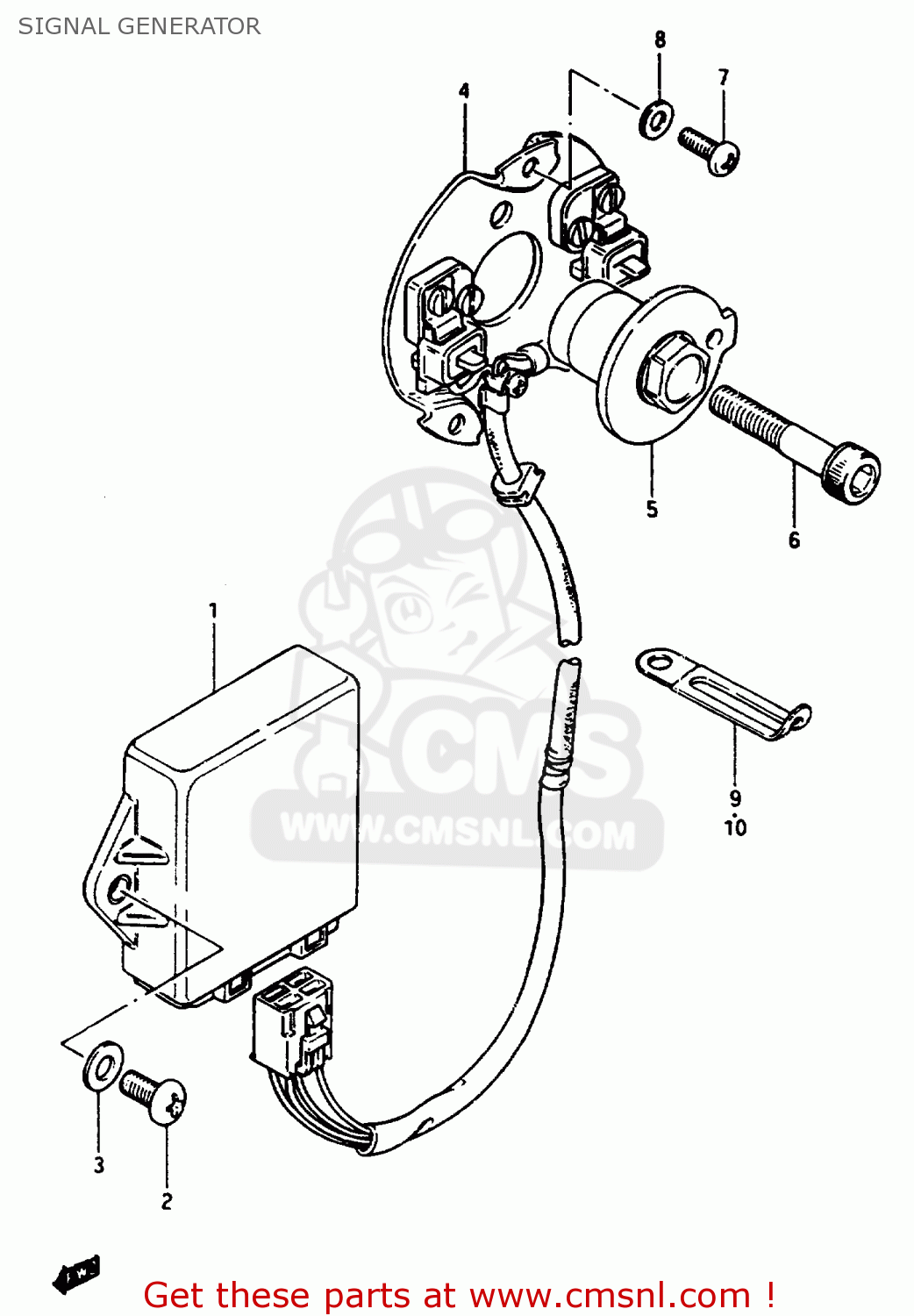

Signal generator diagram GSX1100ES 1986 (G) (E01 E16 E17 E21 E22 E25 E34)

SIGNAL GENERATOR GSX1100ES 1986 (G) (E01 E16 E17 E21 E22 E25 E34)

SIGNAL GENERATOR GSX1100ES 1986 (G) (E01 E16 E17 E21 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3290000A10
ref: 1

IGNITER UNIT ASSEMBLY

€ 613.50

2

0211206166
ref: 2

SCREW

€ 2.00

3

0832221066
ref: 3

WASHER, LOWER

€ 2.00

4

3311049421
ref: 4

STATOR,SIGNAL GENERATOR

€ 360.50

5

3312000A10
ref: 5

ROTOR COMP,SIGNAL

€ 108.00

6

0711008456
ref: 6

BOLT

€ 3.00

7

0912505024
ref: 7

SCREW(5X12)

€ 2.00

8

0916005028
ref: 8

WASHER(5.5X10X0.8)

€ 2.00

9

0940406401
ref: 9

CLAMP L:35

€ 2.50

10

0940408402
ref: 10

CLAMP

€ 3.50
