OIL PAN
GSX1100F 1989 (K) USA (E03)

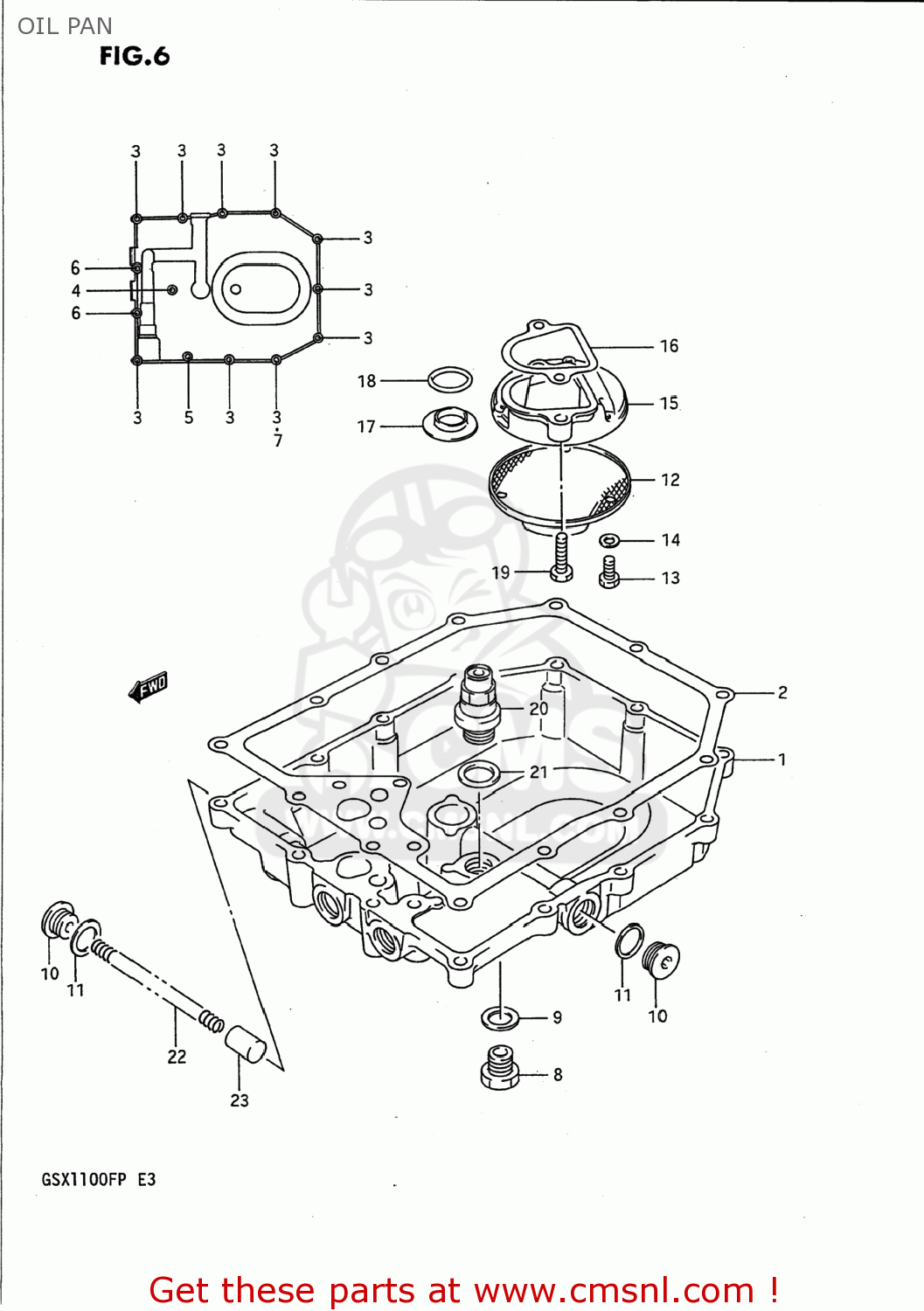

Oil pan diagram GSX1100F 1989 (K) USA (E03)
OIL PAN GSX1100F 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1151148B02
ref: 1-1
11511-19C00
PAN,OIL
€ 133.50
1-2
1151119C00
ref: 1-2
PAN,OIL
€ 133.50
2-1
1148927A00
ref: 2-1
11489-27A21
GASKET,OIL PAN (NAS)
€ 23.00
2-2
1148927A10
ref: 2-2
11489-27A21
GASKET,OIL PAN (NAS)
€ 23.00
2-3
1148927A20
ref: 2-3
11489-27A21
GASKET,OIL PAN (NAS)
€ 23.00
3-1
0711006255
ref: 3-1
07130-0625B
BOLT
€ 3.00
3-2
0711006257
ref: 3-2
07130-06257
BOLT
€ 2.50
4-1
0711006355
ref: 4-1
07130-0635B
BOLT
€ 3.50
4-2
0711006357
ref: 4-2
07130-06357
BOLT
€ 3.50
5-1
0711006405
ref: 5-1
07130-0640B
BOLT
€ 3.50
5-2
0711006408
ref: 5-2
07130-06407
BOLT
€ 2.50
6-1
0711006455
ref: 6-1
07130-0645B
BOLT
€ 2.50
6-2
0711006458
ref: 6-2
07130-0645B
BOLT
€ 2.50
7
0916806024
ref: 7
GASKET(5.8X11X1.2) (NAS)
€ 2.00
8
0924714001
ref: 8
09247-14002
PLUG
€ 5.00
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
€ 2.50
10
0924816010
ref: 10
09248-16012
PLUG
€ 4.50
11
0916816002
ref: 11
GASKET(16X22X2) (NAS)
€ 2.00
12
1652006B01
ref: 12
STRAINER,ENGINE OIL
€ 12.50
13
0110706127
ref: 13
01500-06127
BOLT
€ 2.00
14
0832121067
ref: 14
08321-01067
WASHER,LOCK
€ 2.50
15
1652548B01
ref: 15
PROTECTOR,OIL STRAINER
€ 18.00
16-1
1652827A02
ref: 16-1
16528-27A21
GASKET,OIL STRAINER PROTECTOR (NAS)
€ 9.00
16-2
1652827A10
ref: 16-2
16528-27A21
O-RING
€ 9.00
16-3
1652827A20
ref: 16-3
16528-27A21
GASKET,OIL STRAINER PROTECTOR (NAS)
€ 9.00
17
1652927A01
ref: 17
GASKET,OIL OUTLET (NAS)
€ 2.00
18
0928018009
ref: 18
O RING(D:3.2,ID:17.8)
€ 8.00
19
0151706257
ref: 19
01550-06257
BOLT 6X25
€ 2.50
20
1644048B00
ref: 20
16440-17C10
VALVE ASSEMBLY,OIL RELIEF
€ 68.50
21
0916816002
ref: 21
GASKET(16X22X2) (NAS)
€ 2.00
22
0944009027
ref: 22
SPRING
€ 4.50
23
1644234301
ref: 23
PLUNGER,OIL CONTROLL
€ 16.00
