REAR COMBINATION LAMP
GSX1100F 1989 (K) USA (E03)

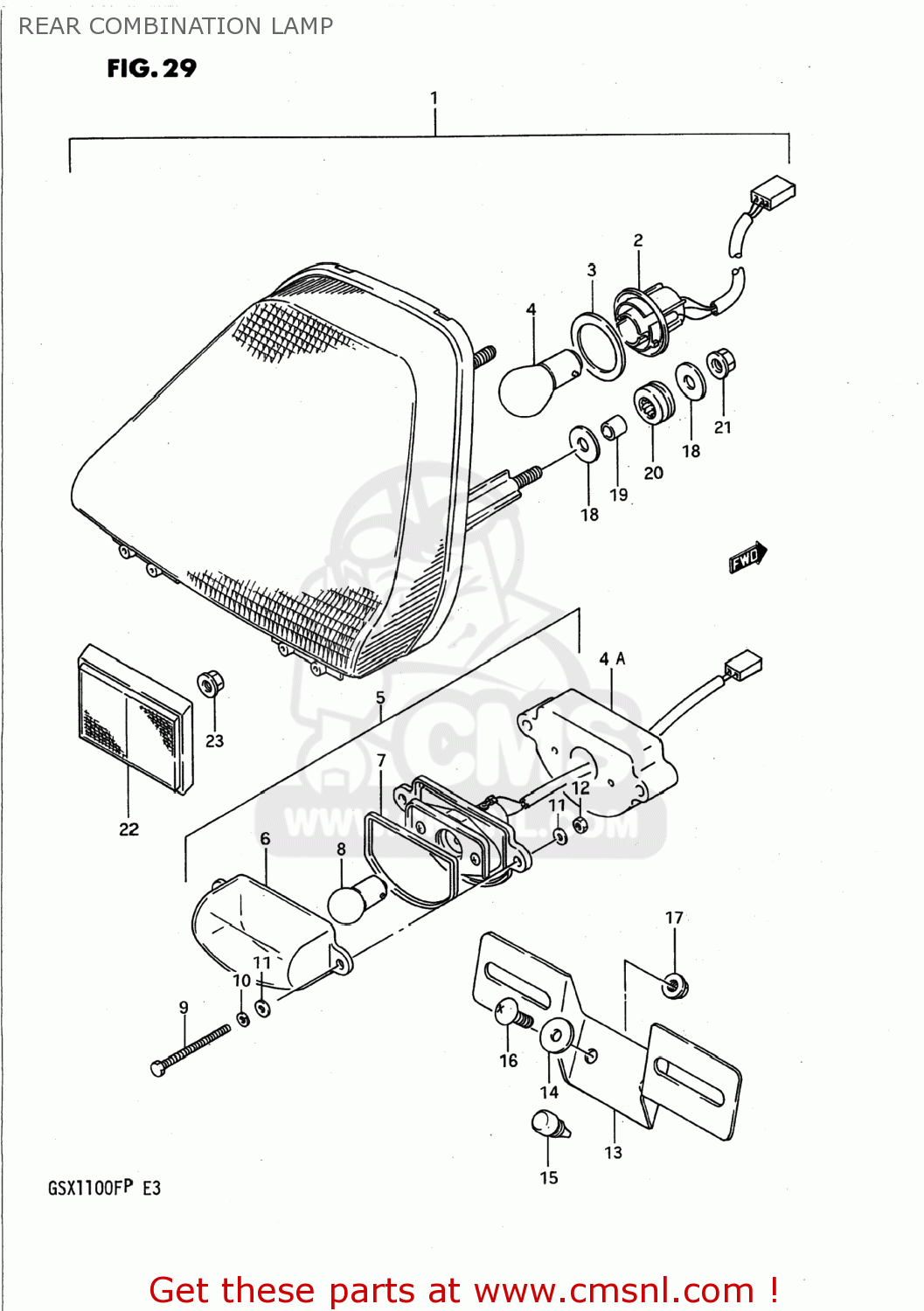

Rear combination lamp diagram GSX1100F 1989 (K) USA (E03)
REAR COMBINATION LAMP GSX1100F 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3571048B31
ref: 1-1
35710-48C30
LAMP ASSEMBLY,REAR COMBINATION
€ 262.50
1-2
3571048C30
ref: 1-2
LAMP ASSY,RR COMBINATION
€ 262.50
2
3571848B20
ref: 2
SOCKET
€ 25.00
3
3576448B20
ref: 3
CUSHION,RUBBER
€ 2.50
4
0947112128
ref: 4
BULB(12V21/5W,BF141-49642A)
€ 6.00
4A
3576648C20
ref: 4A
SPACER,LICENSE LAMP
€ 0.00
5-1
3591048B30
ref: 5-1
LAMP ASSEMBLY,LICENSE
€ 67.50
5-2
3591048C30
ref: 5-2
LAMP ASSY,LICENSE
€ 0.00
6
3591200A21
ref: 6
LENS,LICENSE LAMP
€ 24.00
7
3591304A00
ref: 7
GASKET,LICESE LAMP (NAS)
€ 4.00
8-1
0947112037
ref: 8-1
09471-12141
BULB
€ 7.00
8-2
0947112141
ref: 8-2
BULB(12V8W)
€ 7.00
9-1
0110404256
ref: 9-1
BOLT
€ 1.50
9-2
0110404456
ref: 9-2
BOLT
€ 1.50
10
0832121047
ref: 10
08321-0104A
WASHER,LOCK 4M
€ 2.00
11
0832221047
ref: 11
08322-01047
WASHER 4MM
€ 2.00
12
0831022048
ref: 12
08310-00047
NUT 4MM
€ 2.00
13
3592748B30
ref: 13
BRACKET,LICENSE PLATE
€ 15.00
14
0916006066
ref: 14
WASHER(6.5X20X1.6)
€ 2.00
15
0932106023
ref: 15
CUSHION
€ 2.00
16
0214206164
ref: 16
02142-0616A
SCREW
€ 2.50
17
0831616064
ref: 17
08316-1006B
NUT 6MM
€ 2.50
18
0916006086
ref: 18
09160-06077
WASHER (6.5X20X1)
€ 2.00
19
0918006011
ref: 19
09180-06263
SPACER (6.1X9X9)
€ 2.00
20
0932009009
ref: 20
CUSHION
€ 5.00
21
0831616066
ref: 21
08316-1006B
NUT
€ 2.50
22
3597048B00
ref: 22
REAR ASSEMBLY,REAR
€ 15.50
23
0831616056
ref: 23
08316-1005A
NUT
€ 2.50
