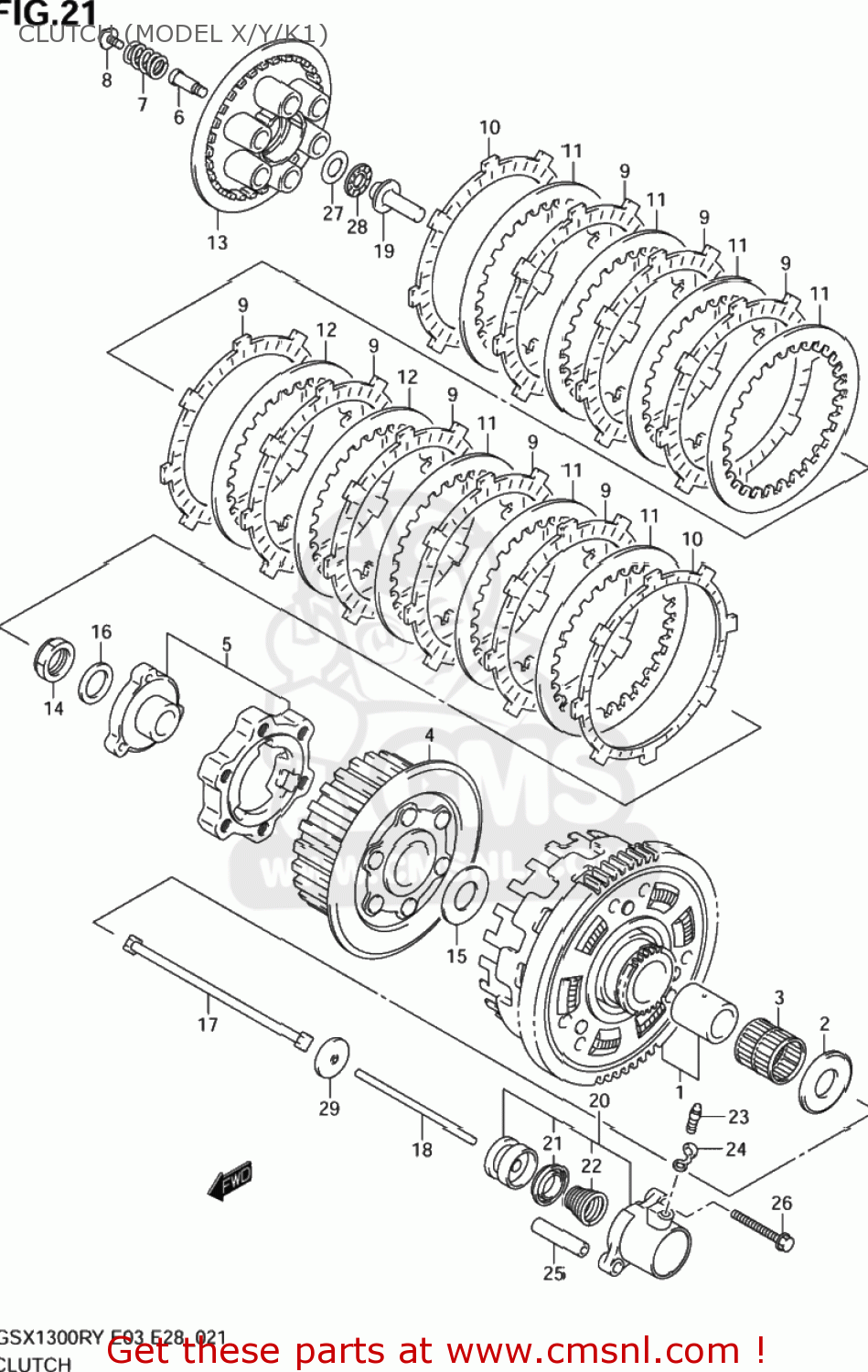

CLUTCH (MODEL X/Y/K1)

ref

part #

description

quantity

1

2120024830
ref: 1

GEAR ASSY,PRI DRIVEN

€ 397.00

2-1

0916025071
ref: 2-1

WASHER(25X54X2.5)

€ 9.00

2-2

0916025037
ref: 2-2

WASHER(25X54X2.5)

€ 9.00

3

0926335013
ref: 3

BEARING(35X40X39.8)

€ 29.00

4

2141024F00
ref: 4

HUB,CLUTCH SLEEVE

€ 122.00

5

2161002F12
ref: 5

CAM SET,CLUTCH

€ 174.00

6-1

2148102F10
ref: 6-1
21481-02F12

BOLT,SPRING SUPPORT

€ 9.50

6-2

2148102F11
ref: 6-2
21481-02F12

BOLT,CLUTCH SPRING SUPPORT

€ 9.50

7-1

2141324F00
ref: 7-1
21413-24F10

SPRING,CLUTCH

€ 6.00

7-2

2141324F10
ref: 7-2

SPRING CLUTCH

€ 6.00

8-1

2148202F10
ref: 8-1
21482-02F12

BOLT,CLUTCH SPRING

€ 3.50

8-2

2148202F11
ref: 8-2
21482-02F12

BOLT,CLUTCH SPRING

€ 3.50

9

2144124F00
ref: 9

PLATE,CLUTCH DRIVE NO.1 (NAS)

€ 21.00

10

2144124F10
ref: 10

PLATE,CLUTCH DRIVE NO.2 (NAS)

€ 18.50

11

2145124F00
ref: 11

PLATE,CLUTCH DRIVEN NO.1(T:2.0 (NAS)

€ 7.50

12

2145124F10
ref: 12

PLATE,CLUTCH DRIVEN NO.2(T:2.3 (NAS)

€ 7.50

13

2146224F00
ref: 13

DISC,CLUTCH PRESSURE

€ 45.50

14

0915924010
ref: 14

NUT

€ 11.00

15

0916025072
ref: 15

WASHER(25X50X2.5)

€ 9.00

16

0916424006
ref: 16

WASHER

€ 4.00

17

2311024F00
ref: 17

ROD,CLUTCH

€ 17.50

18

2311126D00
ref: 18

ROD,CLUTCH PUSH,L

€ 14.00

19

2312131E10
ref: 19
23121-31E00

PIECE,CLUTCH PUSH

€ 18.50

20

2316008A02
ref: 20

CYLINDER,CLUTCH RELEASE

€ 129.00

21

2316305A00
ref: 21

CUP,CLUTCH CYLINDER

€ 7.50

22

2316405A00
ref: 22

SPRING,CLUTCH CYLINDER

€ 3.50

23

5912101A00
ref: 23

BLEEDER

€ 8.50

24

5912201A00
ref: 24

CAP,BLEEDER

€ 4.50

25

0421109129
ref: 25

PIN

€ 2.00

26

0713006253
ref: 26
07130-0625B

BOLT,CL.COVER

€ 3.00

27

0916015045
ref: 27

WASHER(15.5X28X1)

€ 4.00

28

0926315003
ref: 28

BEARING(15X28X2)

€ 7.00

29

0928506015
ref: 29

SEAL,OIL(6X34X5.5)

€ 8.50
