THROTTLE BODY (MODEL K1)

GSX1300R HAYABUSA 2001 (K1) USA (E03)

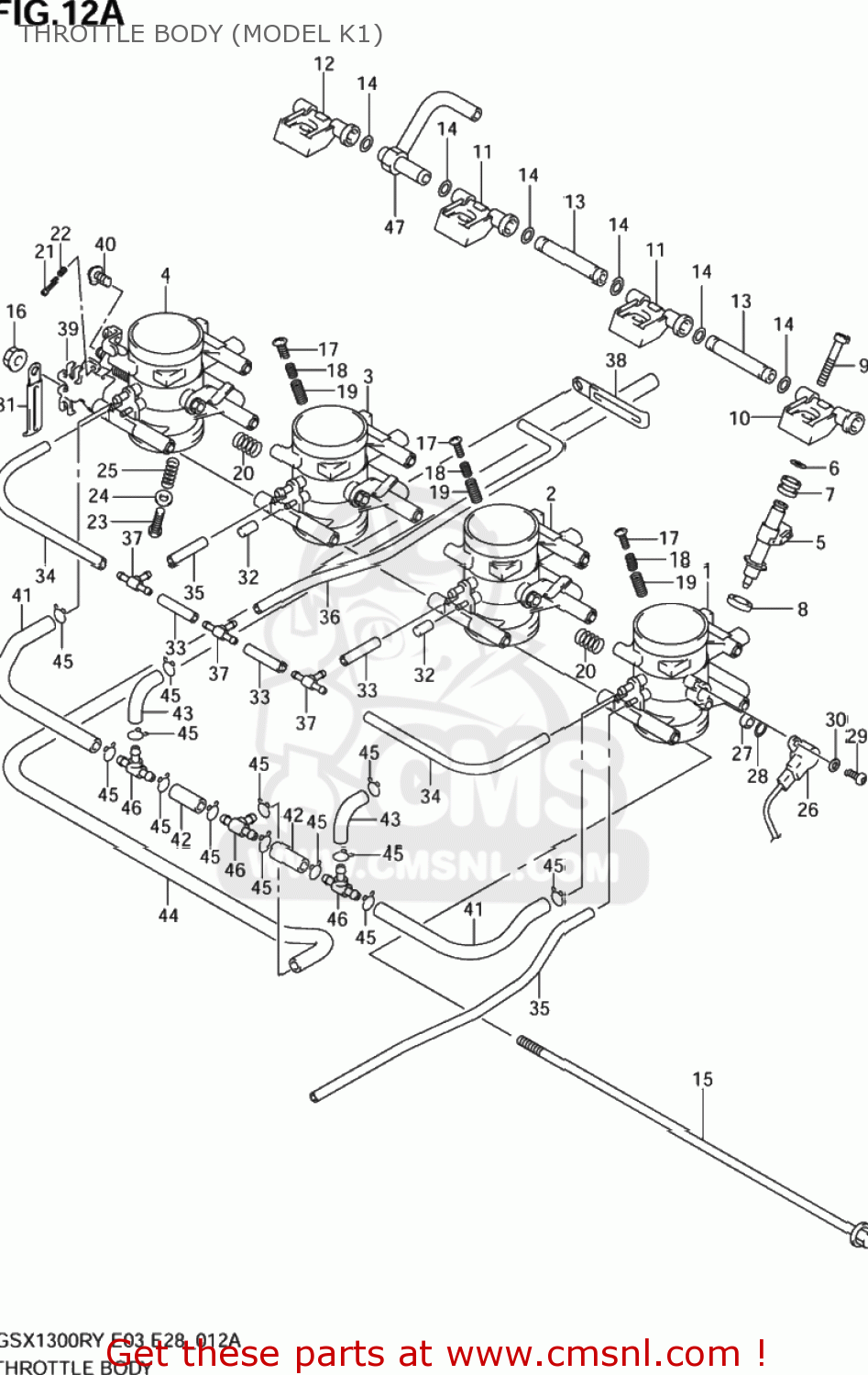

Throttle body (model k1) diagram GSX1300R HAYABUSA 2001 (K1) USA (E03)

THROTTLE BODY (MODEL K1) GSX1300R HAYABUSA 2001 (K1) USA (E03)
THROTTLE BODY (MODEL K1) GSX1300R HAYABUSA 2001 (K1) USA (E03)
THROTTLE BODY (MODEL K1) GSX1300R HAYABUSA 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1340124FA0
ref: 1-1
THROTTLE BODY ASSY,L
€ 343.50
1-2
1340124FB0
ref: 1-2
THROTTLE BODY ASSY,L
€ 0.00
2-1
1340224FA0
ref: 2-1
THROTTLE BODY ASSY ML
€ 343.50
2-2
1340224FB0
ref: 2-2
THROTTLE BODY ASSY ML
€ 0.00
3-1
1340324FA0
ref: 3-1
THROTTLE BODY ASSY MR
€ 343.50
3-2
1340324FB0
ref: 3-2
THROTTLE BODY ASSY MR
€ 0.00
4-1
1340424FA0
ref: 4-1
THROTTLE BODY ASSY,R
€ 343.50
4-2
1340424FB0
ref: 4-2
THROTTLE BODY ASSY,R
€ 0.00
5
1571024F00
ref: 5
INJECTOR ASSY
1571024F00
€ 311.00
6
1572124F00
ref: 6
O RING
1572124F00
€ 7.50
7
1572224F00
ref: 7
RING,CUSHION
1572224F00
€ 13.00
8
1367224F00
ref: 8
RING,SEAL
1367224F00
€ 16.00
9
1360135F00
ref: 9
SCREW
1360135F00
€ 7.00
10
1347135F00
ref: 10
JOINT,NO.1
1347135F00
€ 27.00
11
1347135F10
ref: 11
JOINT,NO.2,3
€ 31.50
12
1347135F20
ref: 12
JOINT,NO.4
1347135F20
€ 29.00
13
1347424F00
ref: 13
JOINT
€ 29.00
14
1572124F00
ref: 14
O RING
1572124F00
€ 7.50
15
1361124F00
ref: 15
BOLT
€ 20.00
16
1360724F00
ref: 16
NUT
€ 2.00
17
1342335F00
ref: 17
SCREW,STOP
1342335F00
€ 7.00
18
1354324F00
ref: 18
SPRING
1354324F00
€ 4.50
19
1326803F50
ref: 19
SPRING
1326803F50
€ 5.00
20
1354324F20
ref: 20
SPRING
€ 3.50
21
1360224F10
ref: 21
SCREW
€ 4.00
22
1354324F30
ref: 22
SPRING
€ 3.50
23
1326735F00
ref: 23
SCREW,STOP
1326735F00
€ 26.00
24
1327324F00
ref: 24
WASHER
1327324F00
€ 3.00
25
1327124F00
ref: 25
SPRING
1327124F00
€ 4.50
26
1358024F00
ref: 26
SENSOR ASSY,THROTTLE
1358024F00
€ 227.50
27
1358224F00
ref: 27
COLLAR
€ 6.50
28
1357524F00
ref: 28
O RING
1357524F00
€ 4.50
29
1361324F00
ref: 29
SCREW
€ 2.00
30
1361524F10
ref: 30
13572-03F00
WASHER
€ 2.50
31-1
1343224F10
ref: 31-1
CLAMP
€ 7.50
31-2
1361924F10
ref: 31-2
CLAMP
€ 0.00
32
1350824F00
ref: 32
CAP,RUBBER
1350824F00
€ 10.50
33
1369724F00
ref: 33
HOSE,RUBBER(L:35)
1369724F00
€ 2.50
34
1369724F20
ref: 34
HOSE,RUBBER(L:100)
1369724F20
€ 3.50
35
1369724F30
ref: 35
HOSE,RUBBER(L:200)
€ 9.00
36
1369724FA0
ref: 36
HOSE,RUBBER(L:230+20)
€ 18.00
37
1347124F30
ref: 37
JOINT
1347124F30
€ 11.50
38
1343224FA0
ref: 38
BAND
€ 7.00
39
1356524F00
ref: 39
PLATE,STAY
€ 73.00
40
1360124F00
ref: 40
SCREW
€ 4.50
41
1369824F00
ref: 41
HOSE,RUBBER(L:80+25)
€ 0.00
42
1369824F10
ref: 42
HOSE,RUBBER(L:35)
€ 0.00
43
1369824F20
ref: 43
HOSE,RUBBER(L:30+30)
€ 0.00
44
1369824F30
ref: 44
HOSE,RUBBER(L:440+30)
€ 0.00
45
1369324F00
ref: 45
CLIP
€ 2.00
46
1368536E50
ref: 46
JOINT
€ 8.00
47
1347335F01
ref: 47
JOINT
1347335F01
€ 82.00
