FRONT FORK DAMPER

GSX1300R HAYABUSA 2003 (K3) USA (E03)

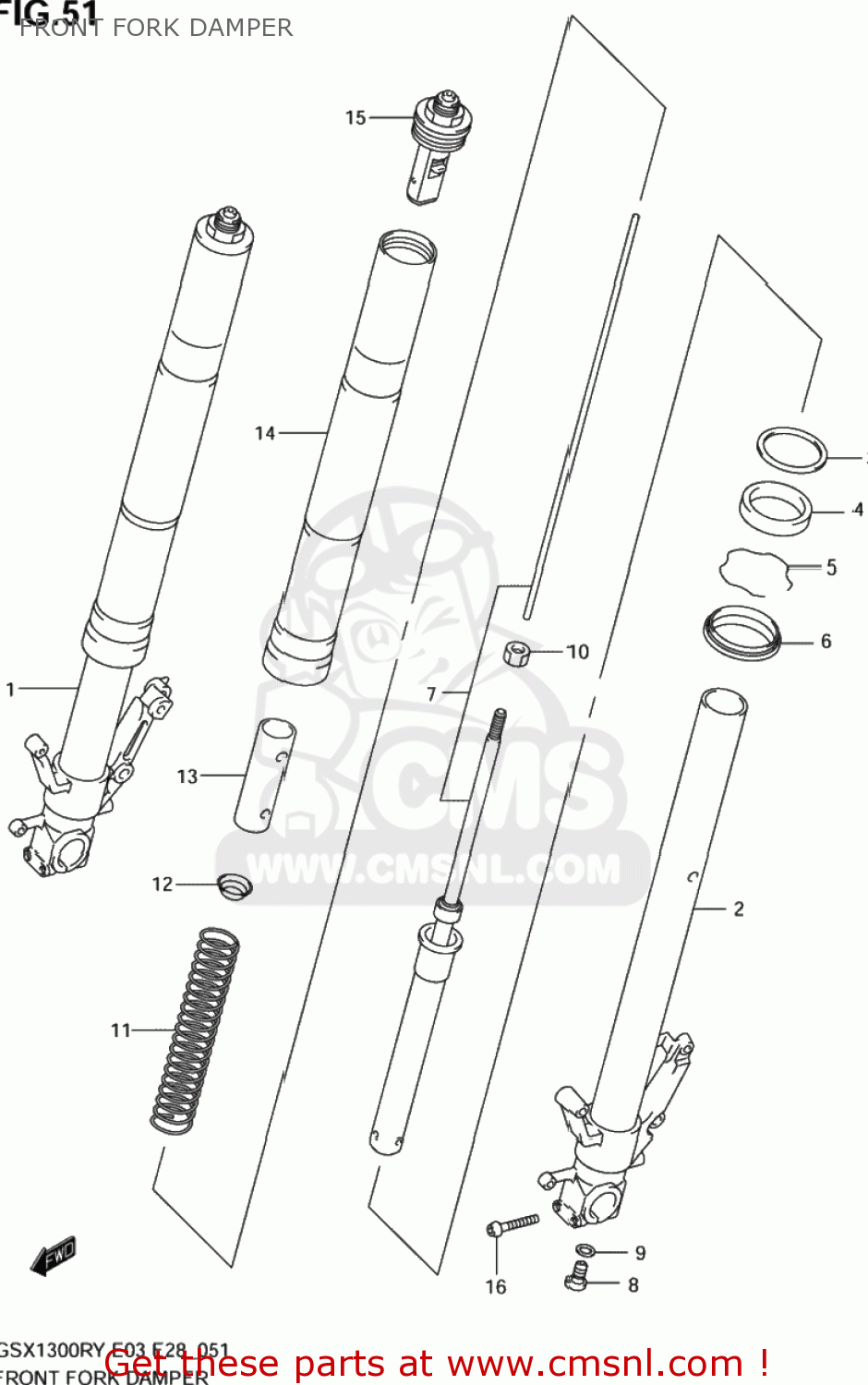

Front fork damper diagram GSX1300R HAYABUSA 2003 (K3) USA (E03)

FRONT FORK DAMPER GSX1300R HAYABUSA 2003 (K3) USA (E03)

FRONT FORK DAMPER GSX1300R HAYABUSA 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110324F00
ref:

DAMPER ASSY,FR FORK,R

€ 1,042.50



5110324F30
ref:

DAMPER ASSY,FR FORK,R

€ 1,618.50



5110424F00
ref:

DAMPER ASSY,FR FORK,L

€ 1,042.50



5110424F30
ref:

DAMPER ASSY,FR FORK,L

€ 1,653.50

1-1

5111024F00
ref: 1-1

TUBE,INNER,R(SILVER)

€ 616.00

1-2

5111024F30
ref: 1-2

TUBE,INNER,R(BLACK)

€ 963.00

2-1

5112024F00
ref: 2-1

TUBE,INNER,L(SILVER)

€ 616.00

2-2

5112024F30
ref: 2-2

TUBE,INNER,L(BLACK)

€ 963.00

3

5115814200
ref: 3

WASHER

€ 4.00

4

5115302FA0
ref: 4

SEAL,OIL

€ 16.50

5

5115614200
ref: 5

RING,STOPPER

€ 4.50

6

5117302FA0
ref: 6

SEAL,DUST

€ 21.00

7

5114624F00
ref: 7

CYLINDER

€ 458.00

8

5114740C00
ref: 8

BOLT,OIL LOCK PIECE,12X22

€ 24.50

9

5114840300
ref: 9

GASKET,CYLINDER (NAS)

€ 2.50

10

5112924F00
ref: 10

NUT

€ 8.50

11

5117124F00
ref: 11

SPRING,FR

€ 142.00

12

5115824F00
ref: 12

GUIDE,SPRING

€ 9.50

13

5117624F00
ref: 13

SPACER,SPRING

€ 27.50

14-1

5113024F00
ref: 14-1

TUBE,OUTER

€ 529.00

14-2

5113024F30
ref: 14-2
51130-24F20

TUBE

€ 767.50

15

5135124F00
ref: 15

CAP,FR FORK

€ 161.50

16-1

5116624F00
ref: 16-1
51166-24F30

BOLT 8X45

€ 10.50

16-2

5116624F30
ref: 16-2

BOLT(8X45)

€ 10.50
