REAR CUSHION LEVER

GSX1300R HAYABUSA 2003 (K3) USA (E03)

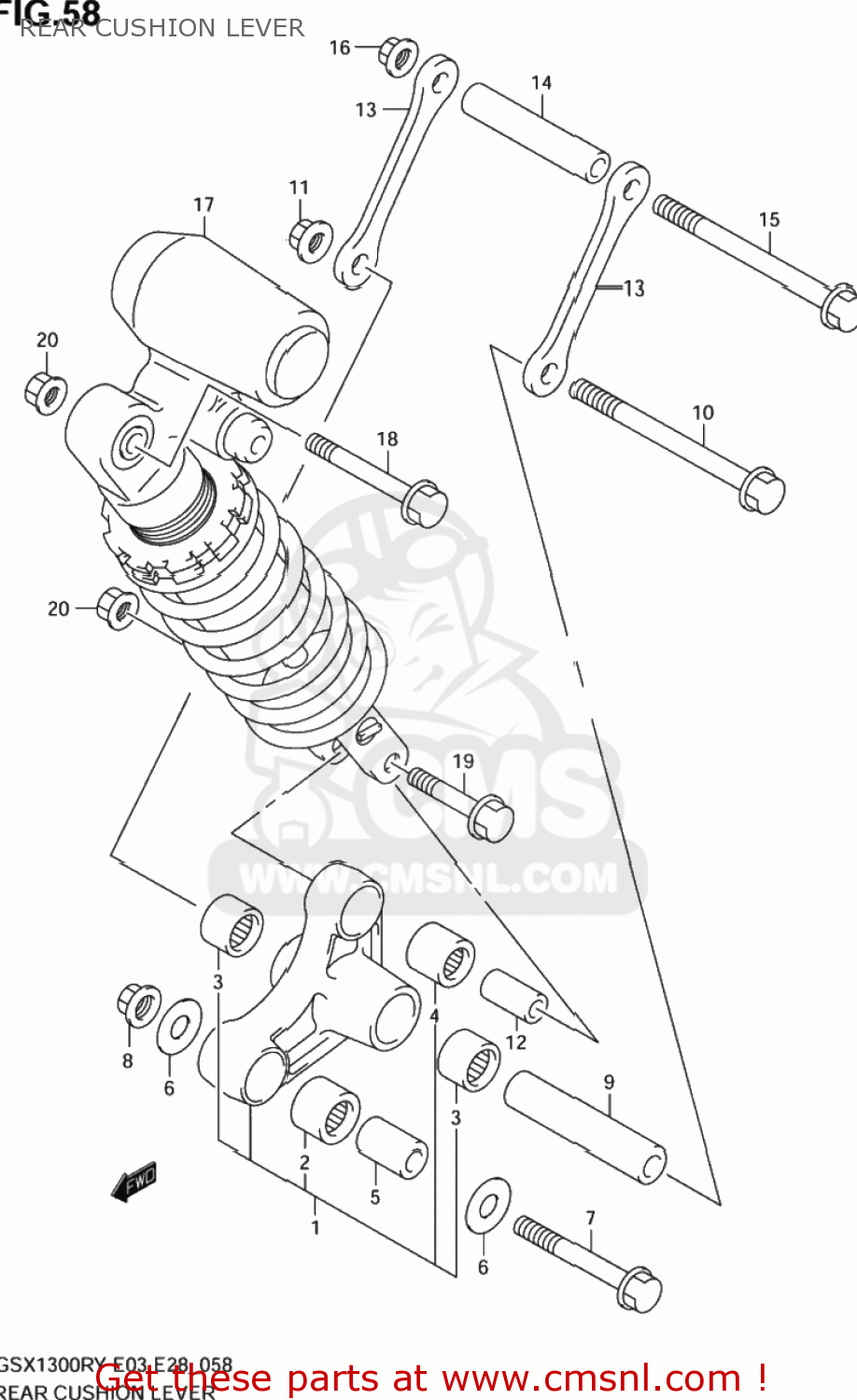

Rear cushion lever diagram GSX1300R HAYABUSA 2003 (K3) USA (E03)

REAR CUSHION LEVER GSX1300R HAYABUSA 2003 (K3) USA (E03)
REAR CUSHION LEVER GSX1300R HAYABUSA 2003 (K3) USA (E03)
REAR CUSHION LEVER GSX1300R HAYABUSA 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6260024810
ref: 1
LEVER SET,RR CUSHION
€ 285.00
2
0926320073
ref: 2
BEARING(20X27X30)
0926320073
€ 24.50
3
0926320071
ref: 3
BEARING(20X27X23.5)
0926320071
€ 21.50
4
0926317034
ref: 4
BEARING(17X24X26)
0926317034
€ 21.50
5
6268412C00
ref: 5
SPACER,RR CUSHION LEVER FR
6268412C00
€ 12.50
6
0821112301
ref: 6
WASHER
0821112301
€ 2.00
7
6265819F00
ref: 7
BOLT,RR CUSHION LEVER FR
6265819F00
€ 8.00
8
0831931128
ref: 8
08319-3112A
NUT 12MM
0831931128
€ 4.00
9
6262624F00
ref: 9
SPACER,RR CUSHION LEVER CTR
6262624F00
€ 31.00
10
6262133D00
ref: 10
BOLT,RR CUSHION LEVER CTR
6262133D00
€ 10.00
11
0831931128
ref: 11
08319-3112A
NUT 12MM
0831931128
€ 4.00
12
6268440A10
ref: 12
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
13
6264124F00
ref: 13
ROD,RR CUSHION
6264124F00
€ 36.50
14
6262624F00
ref: 14
SPACER,RR CUSHION LEVER CTR
6262624F00
€ 31.00
15
6262133D00
ref: 15
BOLT,RR CUSHION LEVER CTR
6262133D00
€ 10.00
16
0831931128
ref: 16
08319-3112A
NUT 12MM
0831931128
€ 4.00
17-1
6210024F00
ref: 17-1
62100-24F01
ABSORBER ASSEMBLY,REAR SHOCK
6210024F00
€ 1,174.00
17-2
6210024F20
ref: 17-2
ABSORBER ASSY,RR SHOCK
€ 0.00
17-3
6210024F01
ref: 17-3
ABSORBER ASSY,RR SHOCK
6210024F01
€ 1,174.00
17-4
6210024F40
ref: 17-4
ABSORBER ASSY,RR SHOCK
€ 0.00
17-5
6210024F30
ref: 17-5
ABSORBER ASSY,RR SHOCK
€ 1,148.50
18
0910310033
ref: 18
BOLT(10X70)
0910310033
€ 5.00
19
0910310027
ref: 19
BOLT(10X58)
0910310027
€ 3.00
20
0831931107
ref: 20
NUT
0831931107
€ 3.00
