HEADLAMP (E2)
GSX250S 1982 (Z) GENERAL EXPORT (E01)

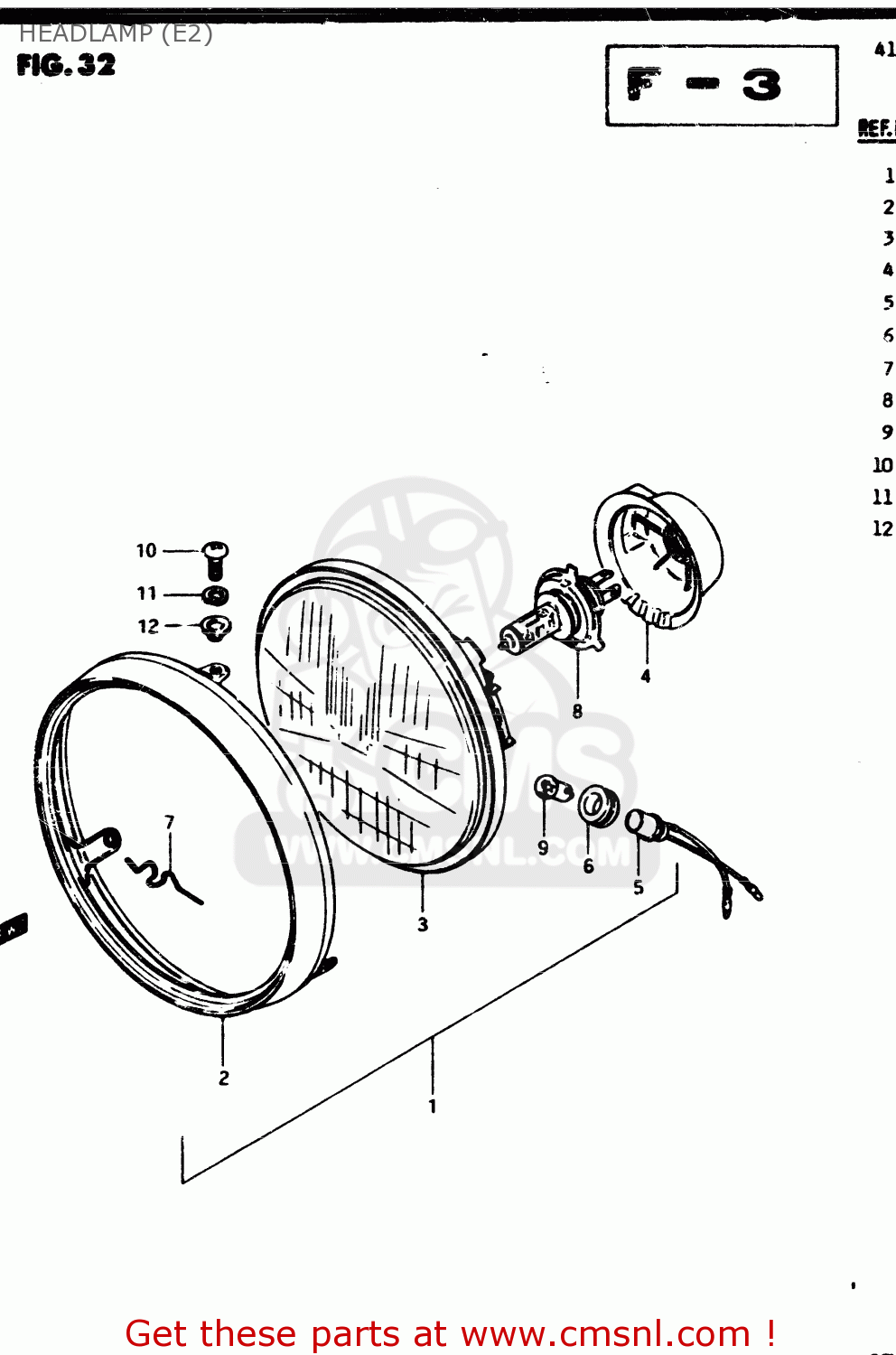

Headlamp (e2) diagram GSX250S 1982 (Z) GENERAL EXPORT (E01)
HEADLAMP (E2) GSX250S 1982 (Z) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
3510033200999
ref: 1
HEADLAMP ASSY
€ 234.00
2
3511130520
ref: 2
RIM
€ 48.50
3
3512133200
ref: 3
LAMP UNIT
€ 88.50
4
3517345200
ref: 4
COVER,SOCKET
€ 14.00
5
3611830691
ref: 5
SOCKET
€ 12.00
6
3611622630
ref: 6
JOINT,RUBBER
€ 5.00
7
3512827221
ref: 7
SPRING
€ 2.50
8
0947112060
ref: 8
EXECUTED LOCALLY
BULB(12V60/55W,H4)
€ 8.00
9
0947112001
ref: 9
EXECUTED LOCALLY
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
10
0912505022
ref: 10
SCREW
€ 3.50
11
0916205003
ref: 11
WASHER,LOCK
€ 2.00
12
0916906021
ref: 12
WASHER
€ 2.50
