SPEEDOMETER - TACHOMETER (MODEL D)

GSX250S 1982 (Z) GENERAL EXPORT (E01)

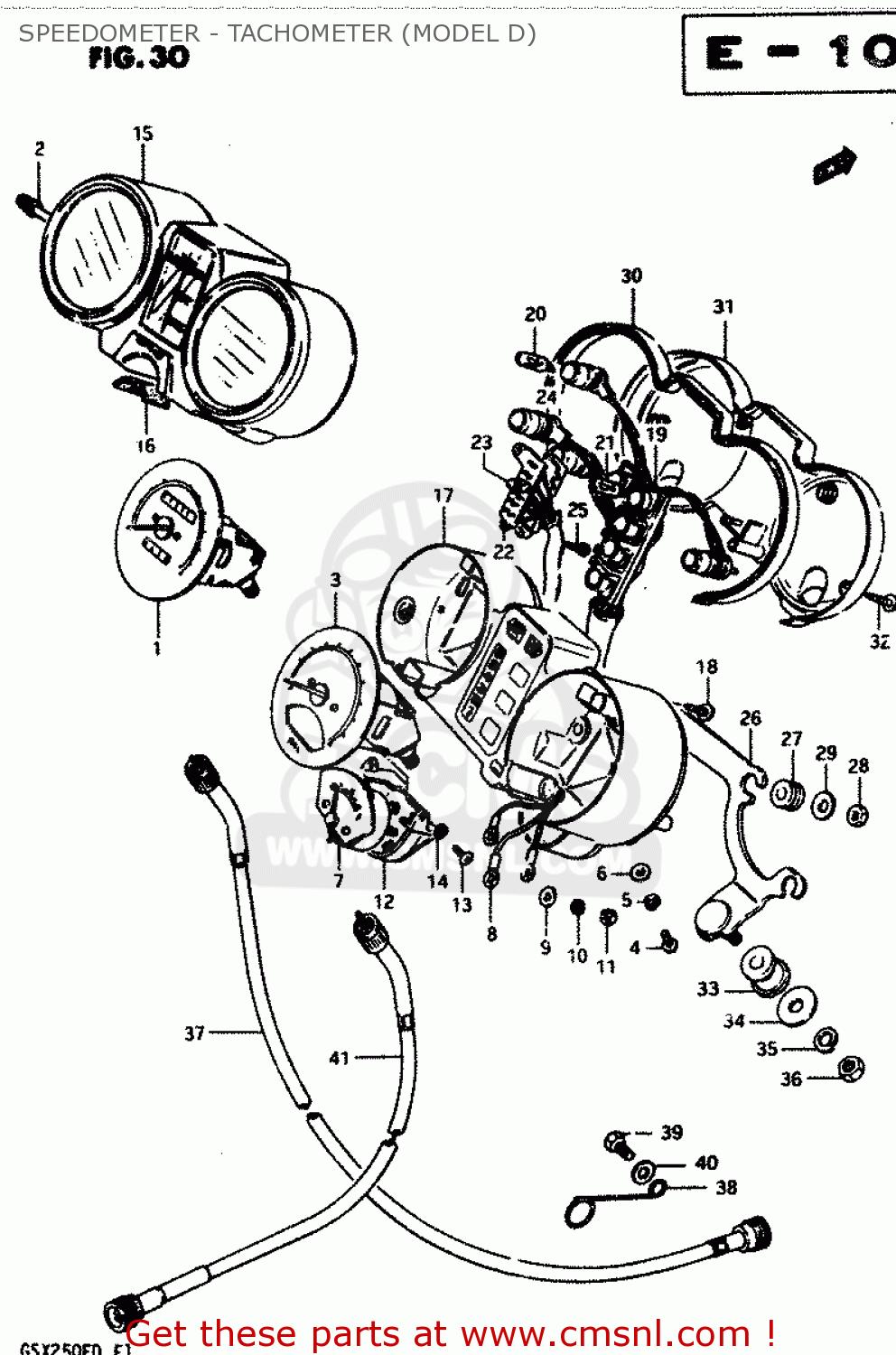

Speedometer - tachometer (model d) diagram GSX250S 1982 (Z) GENERAL EXPORT (E01)

SPEEDOMETER - TACHOMETER (MODEL D) GSX250S 1982 (Z) GENERAL EXPORT (E01)
SPEEDOMETER - TACHOMETER (MODEL D) GSX250S 1982 (Z) GENERAL EXPORT (E01)
SPEEDOMETER - TACHOMETER (MODEL D) GSX250S 1982 (Z) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1-1
3412044910
ref: 1-1
SPEEDOMETER (KILO)
3412044910
€ 314.00
1-2
3412044720
ref: 1-2
SPEEDOMETER (MILE/KILO)
€ 147.00
2
3498045020
ref: 2
KNOB
3498045020
€ 4.50
3
3422011960
ref: 3
TACHMETER
3422011960
€ 214.50
4
0211204108
ref: 4
SCREW 4X10
€ 2.00
5
0832221048
ref: 5
WASHER
0832221048
€ 2.00
6
0832121048
ref: 6
LOCK WASHER
0832121048
€ 2.00
7
3432044910
ref: 7
METER,FUEL
€ 86.50
8
3437844910
ref: 8
WIRE,FUEL METER LEAD
€ 14.50
9
3438433220
ref: 9
WASHER,FUEL METER
3438433220
€ 2.00
10
0832121038
ref: 10
LOCK WASHER
€ 1.50
11
0831011038
ref: 11
NUT 3MM
0831011038
€ 2.00
12
3435044910
ref: 12
BRACKET,FUEL METER
€ 7.50
13
0211203108
ref: 13
SCREW
0211203108
€ 1.50
14
0832121038
ref: 14
LOCK WASHER
€ 1.50
15
3415044910
ref: 15
HOOD,METER
3415044910
€ 80.00
16
3499347000
ref: 16
SEAL,IGNITION SWITCH
3499347000
€ 3.00
17
3411144910
ref: 17
CASE,METER,INNER
3411144910
€ 75.00
18
0214204127
ref: 18
SCREW
0214204127
€ 2.00
19
3632144910
ref: 19
SOCKET
€ 71.50
20
0947112028
ref: 20
BULB(12V3.4W,T10)
0947112028
€ 3.50
21
0947112077
ref: 21
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
22
3645344910
ref: 22
SOCKET,GEAR INDICATOR
€ 122.00
23
0947112078
ref: 23
BULB(14V1.12W,BQ041-32503B)
0947112078
€ 6.50
24
3645444910
ref: 24
COVER,INDICATOR,LOWER
€ 4.50
25
0321103168
ref: 25
SCREW
€ 1.50
26
3495044910
ref: 26
BRACKET,COMBINATION METER
3495044910
€ 30.00
27
3418944910
ref: 27
CUSHION,METER
€ 5.00
28
0831011058
ref: 28
NUT
0831011058
€ 2.50
29
0916005017
ref: 29
WASHER (5.5X16X1.2)
0916005017
€ 2.50
30
3496144910
ref: 30
COVER,METER,UNDER
3496144910
€ 59.00
31
3419344910
ref: 31
COVER,LWR
3419344910
€ 40.00
32
0214204127
ref: 32
SCREW
0214204127
€ 2.00
33
3495631001
ref: 33
CUSHION,METER BRACKET
3495631001
€ 4.50
34
0916008057
ref: 34
WASHER (8.5X20X1.6)
0916008057
€ 2.00
35
0832121088
ref: 35
LOCK WASHER
0832121088
€ 2.00
36
0831012088
ref: 36
NUT
0831012088
€ 2.00
37
3491044400
ref: 37
CABLE ASSY,SPEEDOMETER
3491044400
€ 27.50
38
3493845100
ref: 38
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
39
0110706168
ref: 39
BOLT, UPPER
€ 3.00
40
0832221068
ref: 40
WASHER
0832221068
€ 2.00
41
3494033211
ref: 41
CABLE ASSEMBLY,TACHOMETER
€ 40.00
