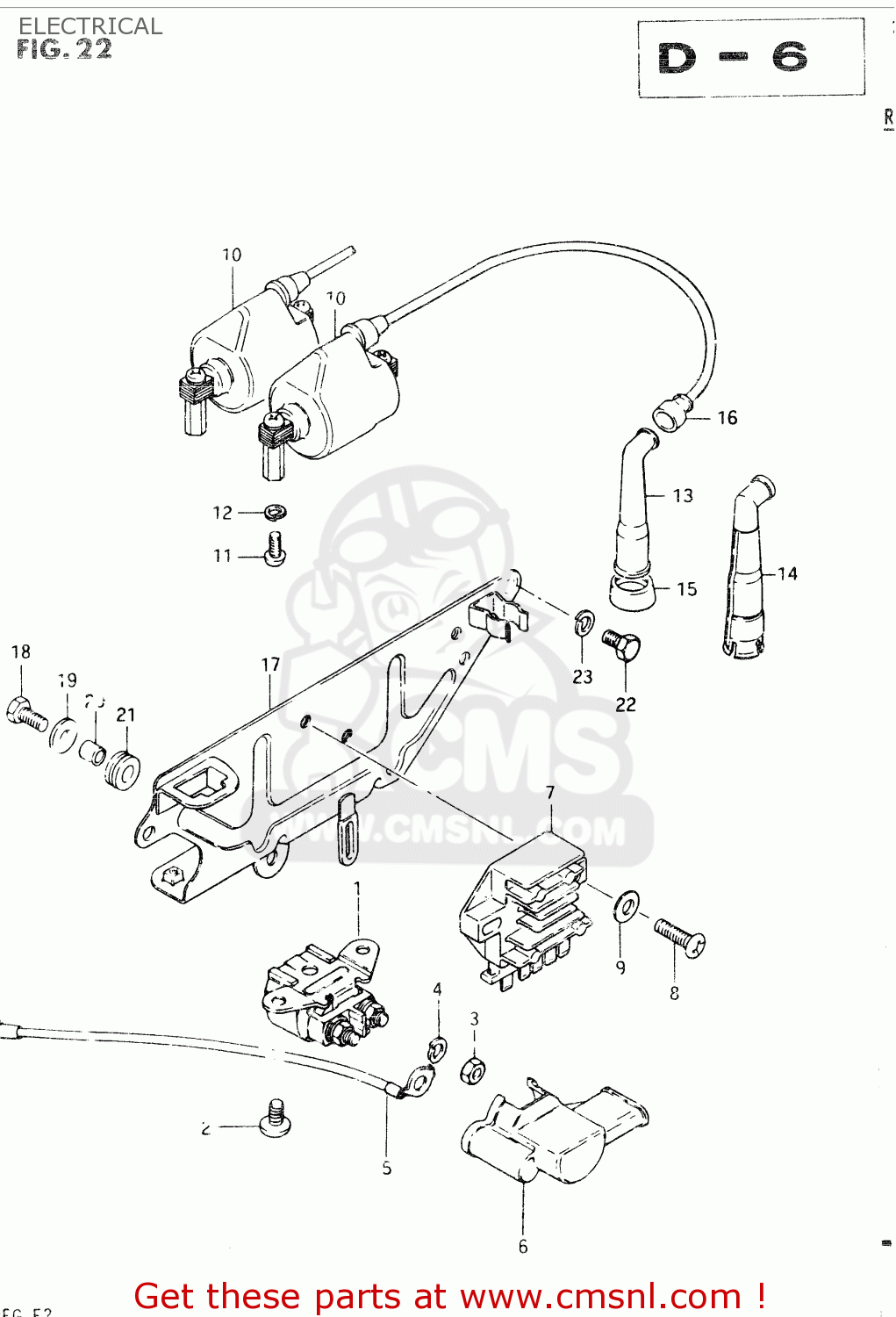

ELECTRICAL

ref

part #

description

quantity

1

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

2

0211206106
ref: 2

SCREW

€ 1.50

3

0831011066
ref: 3

NUT

€ 2.00

4

0832121066
ref: 4

WASHER,LOCK

€ 2.00

5

3385044520
ref: 5

WIRE,STARTER MOTOR LEAD

€ 30.00

6

3186144500
ref: 6

CAP,STARTER RELAY

€ 6.50

7

3280044130
ref: 7

RECTIFIER ASSEMBLY

€ 235.00

8

0211206208
ref: 8

SCREW

€ 2.00

9

0832221067
ref: 9

WASHER

€ 2.00

10

3341044510
ref: 10
FROM 33410-44410

COIL ASSEMBLY,IGNITION

€ 146.50

11

0211205108
ref: 11

SCREW

€ 2.00

12

0832121057
ref: 12

LOCK WASHER

€ 2.00

13

3351045010
ref: 13

CAP ASSY,SPARK PLUG

€ 23.00

14

3351045411
ref: 14
E16

CAP, SPARK PLUG

€ 29.50

15

3354124510
ref: 15
FROM 33541-38210

SEAL,SPARK PLUG CAP

€ 7.00

16

3354298000
ref: 16

SEAL,SPARK PLU

€ 4.50

17

4741044401
ref: 17

HOLDER COMP,ELECTRONIC PARTS

€ 9.00

18

0110706206
ref: 18

BOLT,M6X1X20

€ 2.00

19

0916006057
ref: 19

WASHER

€ 2.00

20

0918006044
ref: 20

SPACER (6.1X8X9.5)

€ 2.50

21

0932008001
ref: 21

CUSHION

€ 3.50

22

0110706108
ref: 22

BOLT

€ 2.00

23

0832121067
ref: 23

WASHER,LOCK

€ 2.50
