COVER HEADLAMP-FRONT FENDER (GSX550EF/EUF/EG/EUG/EUH)

GSX550EF 1987 (H) (E02 E06 E17 E21 E22 E24 E53)

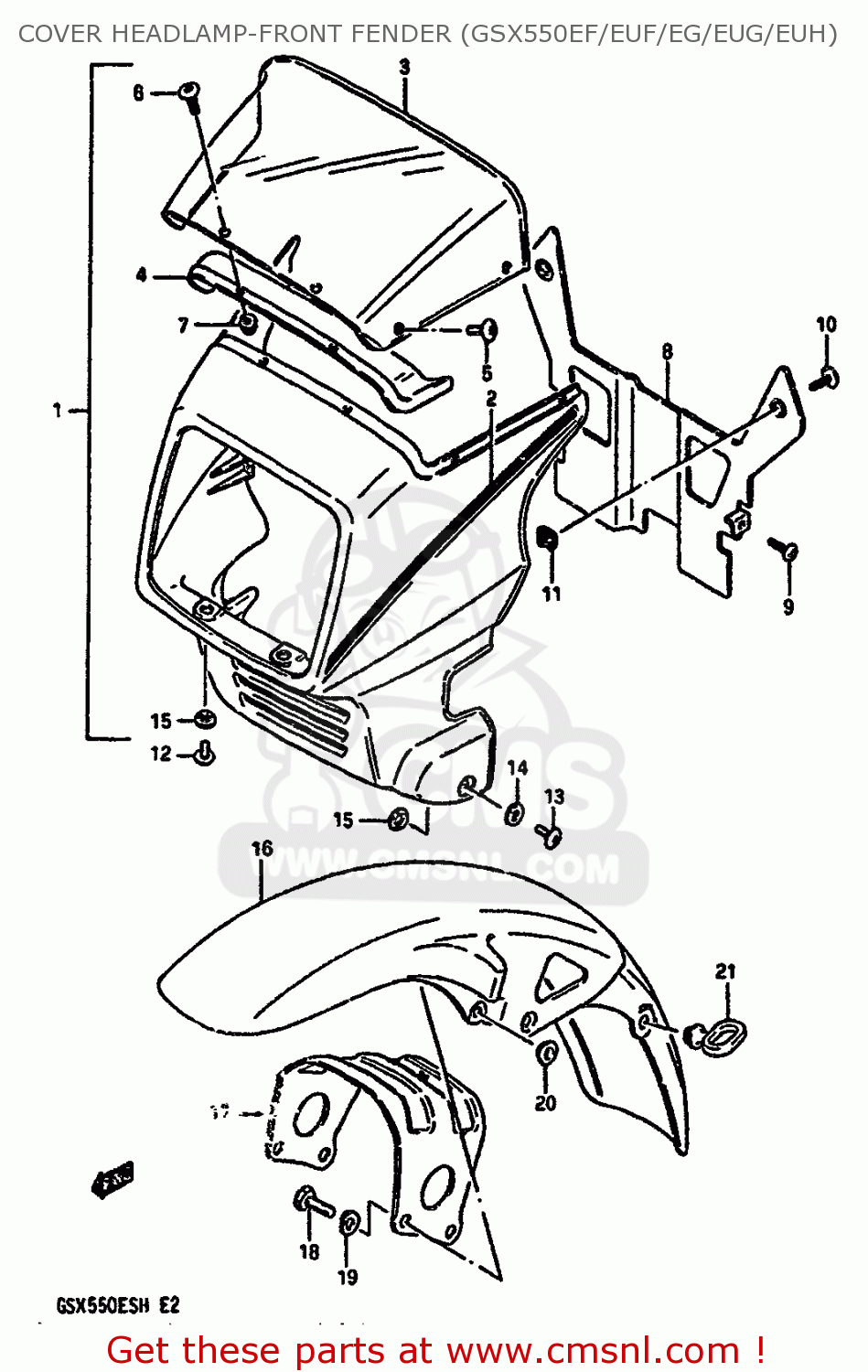

Cover headlamp-front fender (gsx550ef/euf/eg/eug/euh) diagram GSX550EF 1987 (H) (E02 E06 E17 E21 E22 E24 E53)

COVER HEADLAMP-FRONT FENDER (GSX550EF/EUF/EG/EUG/EUH) GSX550EF 1987 (H) (E02 E06 E17 E21 E22 E24 E53)
COVER HEADLAMP-FRONT FENDER (GSX550EF/EUF/EG/EUG/EUH) GSX550EF 1987 (H) (E02 E06 E17 E21 E22 E24 E53)
COVER HEADLAMP-FRONT FENDER (GSX550EF/EUF/EG/EUG/EUH) GSX550EF 1987 (H) (E02 E06 E17 E21 E22 E24 E53)
prices are in EUR
ref
part #
description
quantity
1-1
51800434507JH
ref: 1-1
MODEL F,WHITE/BLUE
COVER ASSEMBLY,HEADLAMP (
€ 146.00
1-2
51800434507JJ
ref: 1-2
MODEL F,WHITE/RED
COVER ASSEMBLY,HEADLAMP (
€ 146.00
1-3
51800434807JH
ref: 1-3
MODEL G,WHITE/BLUE
COVER ASSY,HEADLAMP
€ 0.00
1-4
51800434807JK
ref: 1-4
MODEL G,BLACK/RED
COVER ASSY,HEADLAMP
51800434807JK
€ 189.50
1-5
518004348022R
ref: 1-5
MODEL H,WHITE
COVER ASSY,HEADLAMP
€ 0.00
2-1
68250434407JF
ref: 2-1
MODEL F,FOR 7JH
TAPE SET,HEADLAMP
€ 0.00
2-2
68250434407JG
ref: 2-2
MODEL F,FOR 7JJ
TAPE SET,HEADLAMP
€ 0.00
3
5184543400
ref: 3
WINDOW,COVER HEADLAMP
5184543400
€ 195.50
4
5184343400
ref: 4
COVER,HEADLAMP,UPPER
€ 11.50
5
0913905021
ref: 5
SCREW(5X12)
0913905021
€ 2.00
6
0913905022
ref: 6
SCREW
0913905022
€ 2.50
7
0831931055
ref: 7
NUT
€ 3.00
8
5187143400
ref: 8
PLATE,HEADLAMP COVER
€ 11.50
9
0321205125
ref: 9
SCREW
€ 2.00
10
0214204105
ref: 10
SCREW
0214204105
€ 1.50
11
0914804015
ref: 11
NUT
0914804015
€ 3.00
12
0214206125
ref: 12
SCREW 6X12
0214206125
€ 2.00
13
0214206125
ref: 13
SCREW 6X12
0214206125
€ 2.00
14
0916006039
ref: 14
WASHER (6.5X18X1.6)
0916006039
€ 2.00
15
0916906034
ref: 15
WASHER
0916906034
€ 2.50
16-1
531114340022R
ref: 16-1
FENDER,FRONT
€ 209.00
16-2
5311143400019
ref: 16-2
MODEL G
FENDER,FRONT
€ 209.00
17
5311443400
ref: 17
BRACE,FRONT FENDER
€ 18.00
18
0110708167
ref: 18
BOLT,8X16
0110708167
€ 2.00
19
0832121088
ref: 19
LOCK WASHER
0832121088
€ 2.00
20
0916908034
ref: 20
WASHER
0916908034
€ 2.00
21
5862121203A
ref: 21
GUIDE,CABLE
€ 7.50
