SIGNAL GENERATOR

GSX550EF 1987 (H) (E02 E06 E17 E21 E22 E24 E53)

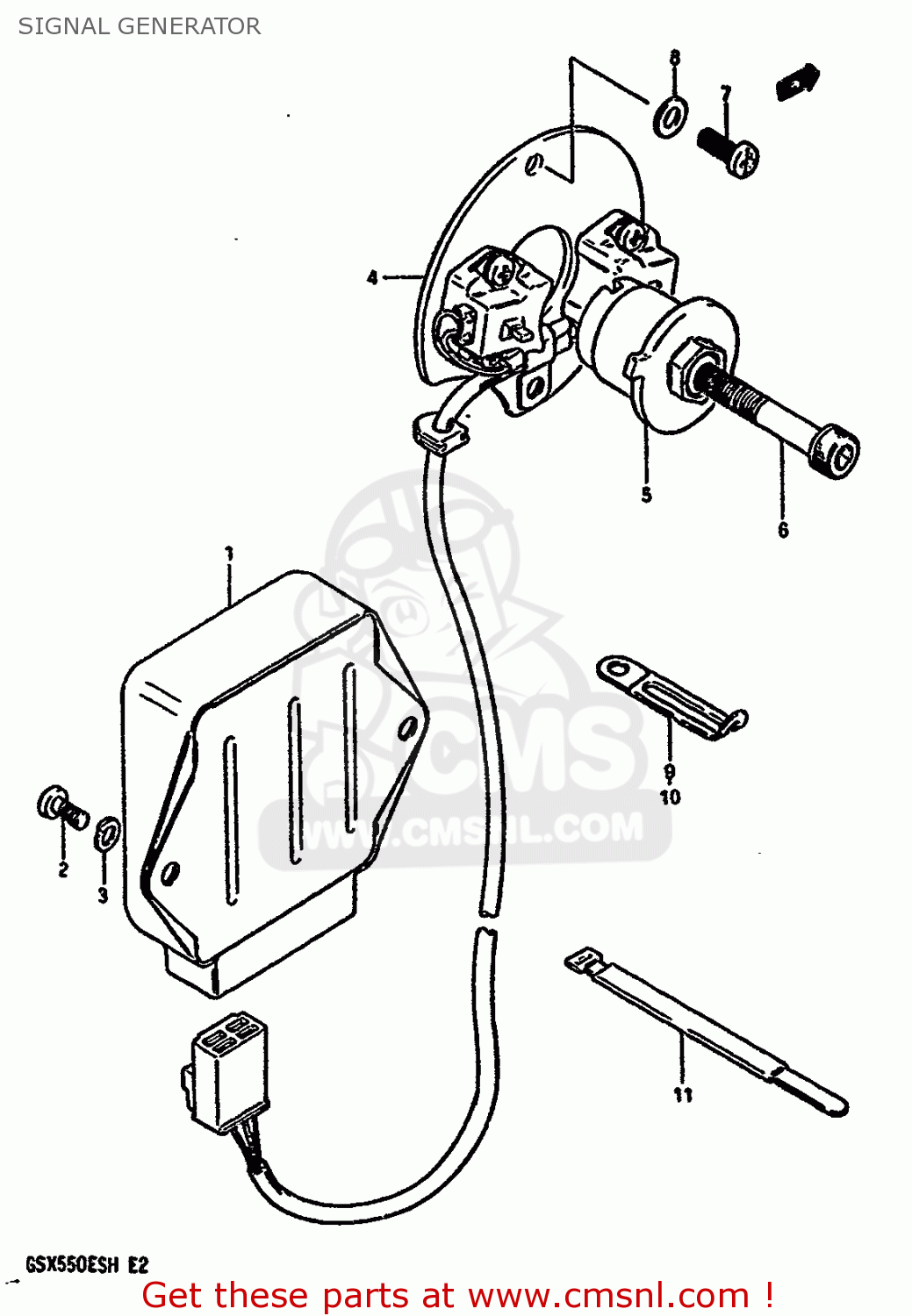

Signal generator diagram GSX550EF 1987 (H) (E02 E06 E17 E21 E22 E24 E53)

prices are in EUR

ref

part #

description

quantity

3290043400
ref: 1

IGNITER UNIT ASSEMBLY

€ 531.00

0211206128
ref: 2

SCREW 6X12

€ 2.00

0832121067
ref: 3

WASHER,LOCK

€ 2.50

3311043400
ref: 4

GENERATOR ASSY,SIGNAL

€ 263.50

3312043420
ref: 5

ROTOR,SIGNAL

€ 67.00

0711008456
ref: 6

BOLT

€ 3.00

0912505024
ref: 7

SCREW(5X12)

€ 2.00

0916005028
ref: 8

WASHER(5.5X10X0.8)

€ 2.00

0940406401
ref: 9

CLAMP L:35

€ 2.50

0940408402
ref: 10

CLAMP

€ 3.50

0940718301
ref: 11

CLAMP

€ 6.00
