BATTERY (MODEL T)

GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

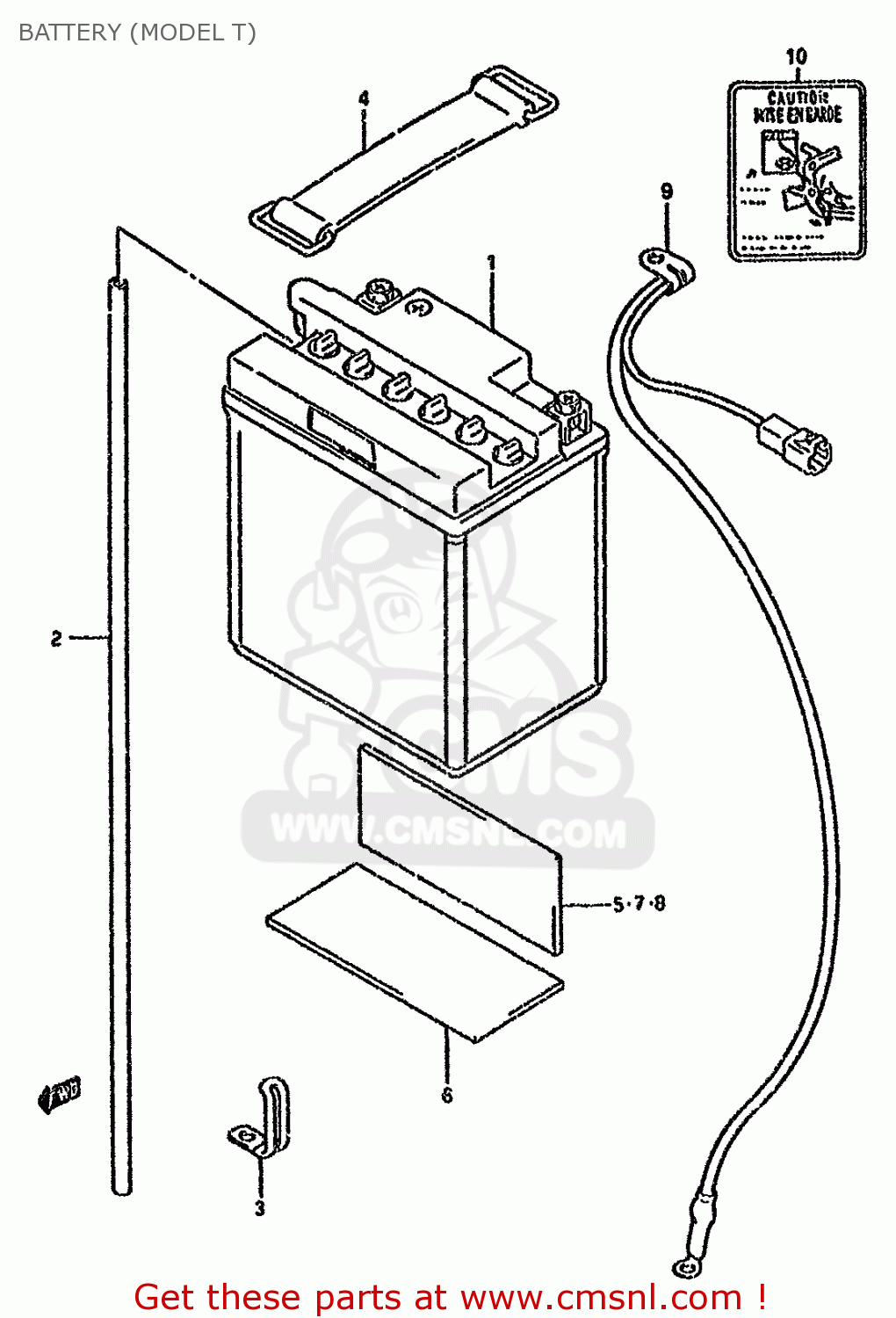

Battery (model t) diagram GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

BATTERY (MODEL T) GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
BATTERY (MODEL T) GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
BATTERY (MODEL T) GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
3361004A20
ref: 1
BATTERY(YB10L-B2,12V11.6AH)
3361004A20
€ 78.50
2
3368016A10
ref: 2
MODEL R/S
HOSE,BATTERY EXHAUST(L:780)
3368016A10
€ 4.50
3
0940406206
ref: 3
CLAMP(L:45)
€ 2.50
4
0946200043
ref: 4
BAND
0946200043
€ 4.50
5
3365137000
ref: 5
CUT REQUIRED PROFILE
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
6
3365220C00
ref: 6
PROTECTOR(50X50X5)
3365220C00
€ 2.50
7
3365137000
ref: 7
CUT REQUIRED PROFILE
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
8
3365137000
ref: 8
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
9
3386044B01
ref: 9
WIRE,BATTERY MINUS LEAD
3386044B01
€ 17.50
10
3369019C10
ref: 10
PLATE,BATTERY CAUTION
€ 3.00
10
3369019C10
ref: 10
PLATE,BATTERY CAUTION
€ 3.00
