SIGNAL GENERATOR (MODEL T)

GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

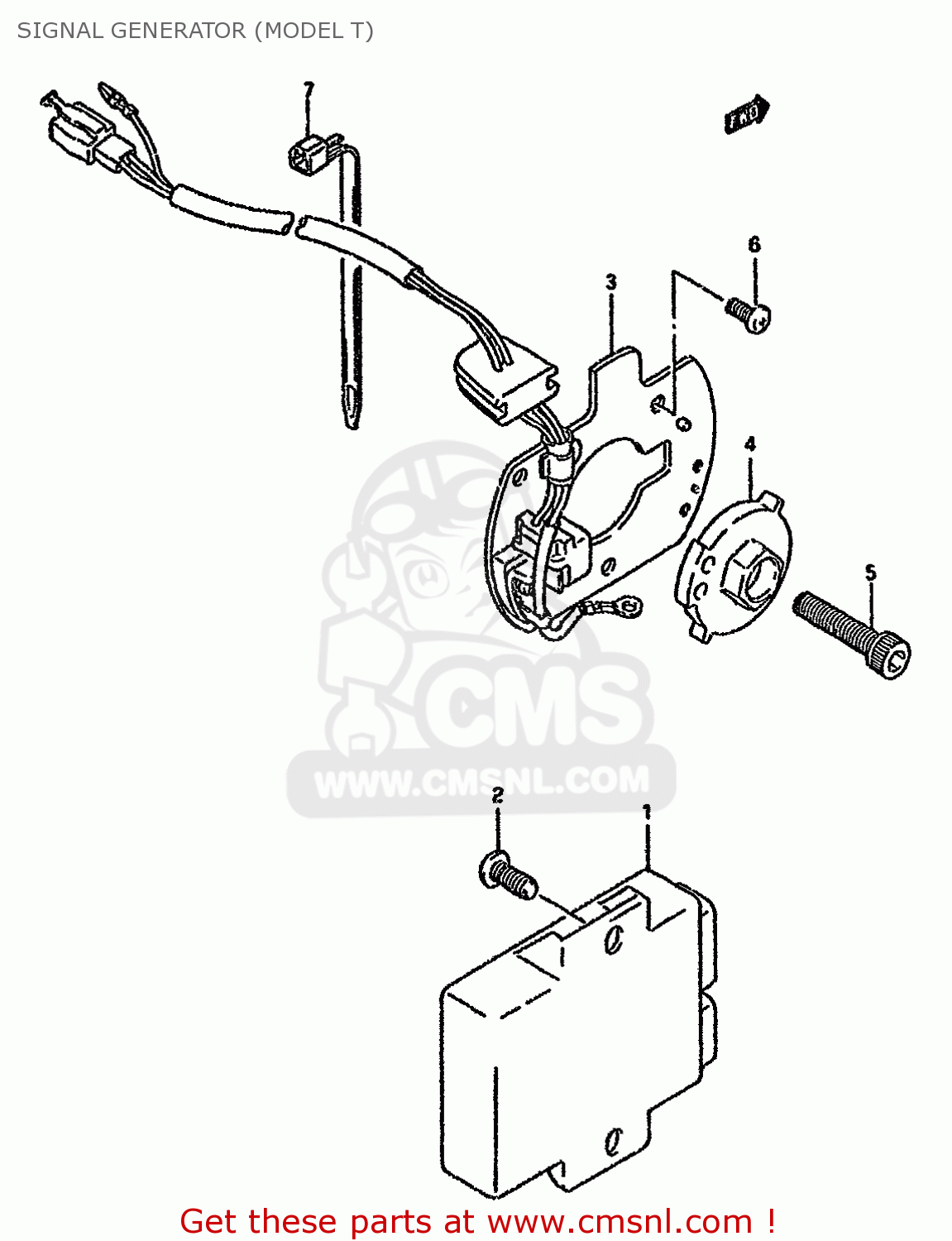

Signal generator (model t) diagram GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

SIGNAL GENERATOR (MODEL T) GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
SIGNAL GENERATOR (MODEL T) GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
SIGNAL GENERATOR (MODEL T) GSX600F 1989 (K) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3290019C40
ref: 1-1
E17
IGNITOR ASSY
€ 0.00
1-2
3290019C60
ref: 1-2
E2,E22,E25,E34
IGNITOR ASSY
3290019C60
€ 511.00
2
0214206123
ref: 2
SCREW 6X12
0214206123
€ 2.00
3
3311017C00
ref: 3
GENERATOR ASSY,SIGNAL
3311017C00
€ 324.00
4
3312019C20
ref: 4
ROTOR,SIGNAL GENERATOR
3312019C20
€ 182.00
5
0713008303
ref: 5
BOLT
0713008303
€ 3.00
6
0211205103
ref: 6
SCREW
0211205103
€ 2.00
7
0940711401
ref: 7
CLAMP(L:95)
0940711401
€ 2.50
6-1
0211205107
ref: 6-1
MODEL J/K/L/M/N/P
SCREW
0211205107
€ 2.00
6-2
0211205103
ref: 6-2
MODEL R/S
SCREW
0211205103
€ 2.00
7-1
0940714403
ref: 7-1
MODEL J
CLAMP(L:125)
0940714403
€ 2.50
7-2
0940714403
ref: 7-2
MODEL L/M/N/P/R/S
CLAMP(L:125)
0940714403
€ 2.50
8
0940408403
ref: 8
MODEL K
CLAMP
€ 3.50
