CRANKCASE

GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)

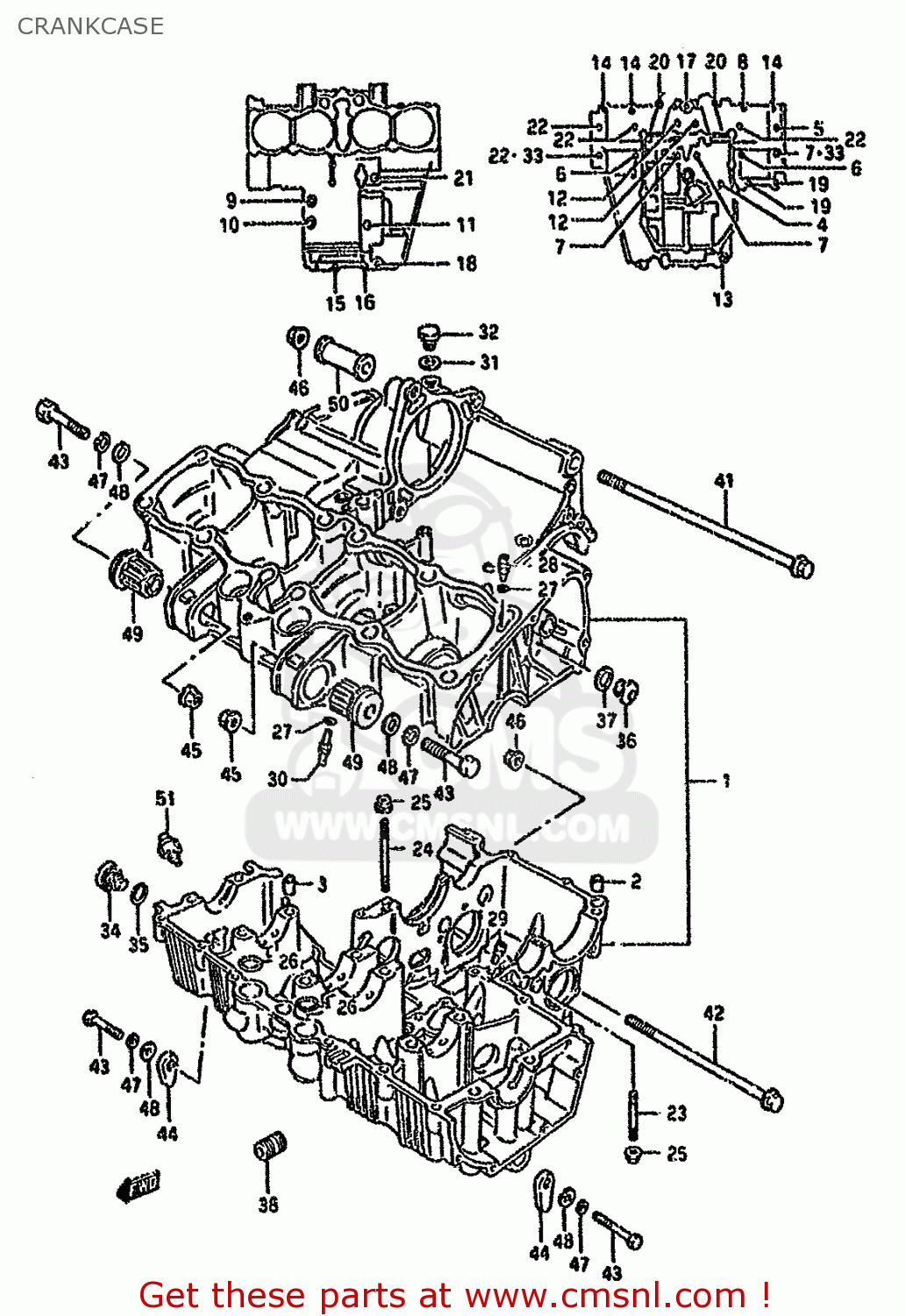

Crankcase diagram GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)

CRANKCASE GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)
CRANKCASE GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)
CRANKCASE GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
1130019864
ref: 1-1
MODEL J-11300-19863
CRANKCASE SET
€ 1,555.00
1-2
1130043852
ref: 1-2
MODEL K/L/M/N/P-1130
CRANKCASE SET
€ 1,549.50
1-3
1130043853
ref: 1-3
MODEL R/S/T
CRANKCASE SET
€ 1,549.50
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3-1
0920611005
ref: 3-1
MODEL J/K/L/M/N/P/R/
PIN (11X20)(SUS)
€ 6.50
3-2
0920611017
ref: 3-2
MODEL T
PIN(8.4X11X20)
0920611017
€ 6.50
4-1
0910306067
ref: 4-1
MODEL J/K/L/M/N/P
BOLT(6X105)
0910306067
€ 3.50
4-2
0910306163
ref: 4-2
MODEL R/S/T
BOLT(6X105)
0910306163
€ 4.00
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
0910308182
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
0910308098
€ 3.00
8-1
0151706354
ref: 8-1
MODEL J/K/L/M/N/P
BOLT 6X35
€ 2.50
8-2
0155006353
ref: 8-2
MODEL R/S/T
BOLT
0155006353
€ 2.50
9-1
0711006405
ref: 9-1
MODEL J/K/L/M/N/P
BOLT
0711006405
€ 3.50
9-2
0713006403
ref: 9-2
MODEL R/S/T
BOLT
0713006403
€ 3.50
10-1
0711006505
ref: 10-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
10-2
0713006503
ref: 10-2
MODEL R/S/T
BOLT,CL.COVER
0713006503
€ 3.00
11-1
0711006655
ref: 11-1
MODEL J/K/L/M/N
BOLT
€ 4.00
11-2
0713006658
ref: 11-2
MODEL P
BOLT
€ 4.00
11-3
0713006653
ref: 11-3
MODEL R/S/T
BOLT
0713006653
€ 4.00
12-1
0711008655
ref: 12-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
12-2
0713008653
ref: 12-2
MODEL R/S/T
BOLT
€ 3.50
13-1
0151708605
ref: 13-1
MODEL J/K/L/M/N/P
BOLT 8X60
€ 3.50
13-2
0155008603
ref: 13-2
MODEL R/S/T
BOLT
€ 3.50
14-1
0151706354
ref: 14-1
MODEL J/K/L/M/N/P
BOLT 6X35
€ 2.50
14-2
0155006353
ref: 14-2
MODEL R/S/T
BOLT
0155006353
€ 2.50
15-1
0151706404
ref: 15-1
MODEL J/K/L/M/N/P
BOLT
0151706404
€ 2.00
15-2
0155006403
ref: 15-2
MODEL R/S/T
BOLT
0155006403
€ 2.00
16
0155006407
ref: 16
BOLT
0155006407
€ 2.50
17-1
0151706505
ref: 17-1
MODEL J/K/L/M/N/P
BOLT 6X50
0151706505
€ 2.00
17-2
0155006503
ref: 17-2
MODEL R/S/T
BOLT
0155006503
€ 2.00
18-1
0151706605
ref: 18-1
MODEL J/K/L/M/N/P
BOLT ,6X60
€ 2.50
18-2
0155006603
ref: 18-2
MODEL R/S/T
BOLT
0155006603
€ 2.50
19-1
0151706557
ref: 19-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
19-2
0155006553
ref: 19-2
MODEL R/S/T
BOLT, HYDRAULIC UNIT NO.2
0155006553
€ 2.00
20-1
0151706705
ref: 20-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
20-2
0155006703
ref: 20-2
MODEL R/S/T
BOLT
€ 2.50
21-1
0151706805
ref: 21-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
21-2
0155006803
ref: 21-2
MODEL R/S/T
BOLT
€ 2.50
22
0910308105
ref: 22
BOLT(8X95)
0910308105
€ 3.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0142106608
ref: 24
STUD BOLT
€ 2.50
25-1
0915906017
ref: 25-1
MODEL J/K/L/M/N/P
NUT
0915906017
€ 2.50
25-2
0831610063
ref: 25-2
MODEL R/S/T
NUT
0831610063
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
0928021008
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
0928004004
€ 2.00
28
0949314002
ref: 28
JET,AIR
0949314002
€ 8.00
29
0949324010
ref: 29
JET
0949324010
€ 12.00
30
0949380008
ref: 30
JET,OIL GALLERY
0949380008
€ 8.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
0924712103
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
34
0924816003
ref: 34
PLUG
0924816003
€ 16.50
35
0928017002
ref: 35
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
36
0924814005
ref: 36
PLUG,14X12
0924814005
€ 5.00
37
0916814002
ref: 37
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
38
1659106B00
ref: 38
UNION,OIL STAND
1659106B00
€ 6.00
39
1222819C00
ref: 39
SEE ILLUSTRATION ON
PLATE,CRANK THRUST
1222819C00
€ 9.50
40-1
1222843411
ref: 40-1
SEE ILLUSTRATION ON
PLATE,CRANK THRUST
1222843411
€ 8.50
40-2
1222843412
ref: 40-2
PLATE,CRANK THRUST
1222843412
€ 8.50
40-3
1222843413
ref: 40-3
PLATE,CRANK THRUST
1222843413
€ 8.00
40-4
1222843414
ref: 40-4
PLATE,CRANK THRUST
1222843414
€ 9.50
40-5
1222843415
ref: 40-5
BEARING,THRUST
1222843415
€ 8.50
40-6
1222843416
ref: 40-6
PLATE,CRANK THRUST
1222843416
€ 9.50
41
0910310151
ref: 41
BOLT(10X175)
0910310151
€ 14.50
42-1
0910310237
ref: 42-1
MODEL J/K/L/M/N/P
BOLT(10X130)
0910310237
€ 5.50
42-2
0910310122
ref: 42-2
MODEL R/S/T
BOLT(10X130)
0910310122
€ 9.50
43-1
0110710555
ref: 43-1
MODEL J/K/L/M/N/P
BOLT 10X55
€ 3.50
43-2
0158010553
ref: 43-2
MODEL R/S/T
BOLT
€ 3.00
44
0915910020
ref: 44
NUT
0915910020
€ 7.50
45-1
0831616105
ref: 45-1
MODEL J/K/L/M/N/P
NUT
€ 2.00
45-2
0831610103
ref: 45-2
MODEL R/S/T
NUT
0831610103
€ 2.00
46-1
0915910044
ref: 46-1
MODEL J/K/L/M/N/P
NUT (10MM)
€ 4.00
46-2
0915910058
ref: 46-2
MODEL R/S/T
NUT
0915910058
€ 4.00
47
0832121104
ref: 47
MODEL J/K/L/M/N/P
WASHER,LOCK
0832121104
€ 3.00
48
0832221105
ref: 48
MODEL J/K/L/M/N/P
WASHER 10MM
€ 2.50
49
1168106B00
ref: 49
BUSH,ENGINE MOUNTING
1168106B00
€ 26.00
50-1
1161106B01
ref: 50-1
MODEL J/K
SPACER,ENGINE MOUNT
€ 10.00
50-2
1161020C00
ref: 50-2
MODEL L/M/N/P/R/S/T
SPACER,ENGINE MOUNT(L27)
1161020C00
€ 10.00
51
3782033D00
ref: 51
-37820-33200
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
