SPEEDOMETER (MODEL T)

GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)

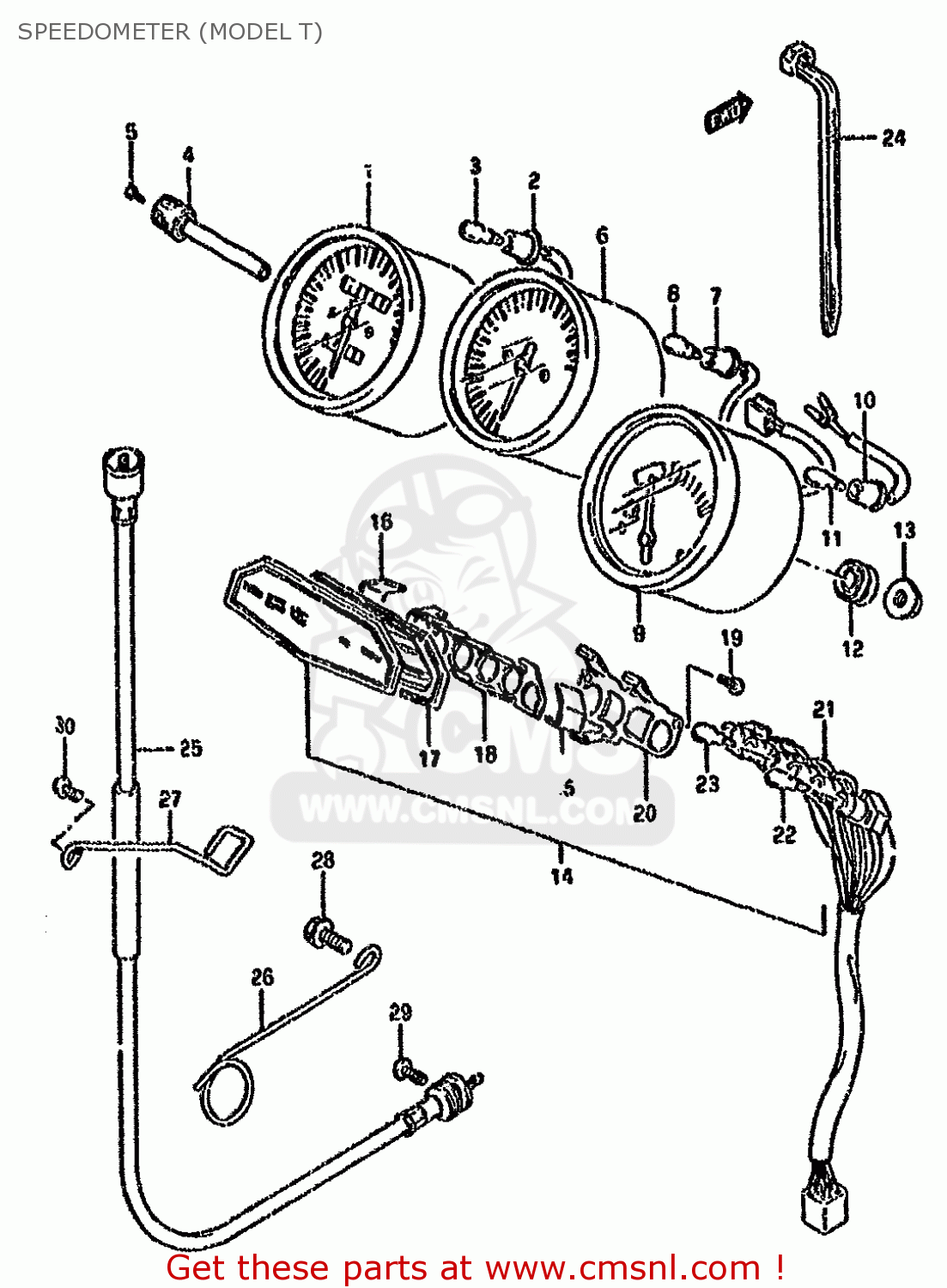

Speedometer (model t) diagram GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)

SPEEDOMETER (MODEL T) GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)
SPEEDOMETER (MODEL T) GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)
SPEEDOMETER (MODEL T) GSX600F 1994 (R) (E02 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
3410019C30
ref: 1-1
SPEEDOMETER ASSY
3410019C30
€ 406.50
1-2
3410019C20
ref: 1-2
SPEEDOMETER ASSY
3410019C20
€ 351.50
2
3417119C00
ref: 2
SOCKET
€ 30.00
3
0947112085
ref: 3
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
4
3412419C00
ref: 4
KNOB,TRIP
3412419C00
€ 11.00
5
3418412D00
ref: 5
SCREW,TRIP KNOB
3418412D00
€ 2.00
6
3420019C11
ref: 6
TACHOMETER ASSY
€ 512.50
7
3417119C10
ref: 7
SOCKET
€ 22.00
8
0947112085
ref: 8
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
9
3430019C10
ref: 9
METER ASSEMBLY,FUEL
€ 150.50
10
3417119C10
ref: 10
SOCKET
€ 22.00
11
0947112085
ref: 11
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
12
3418930921
ref: 12
CUSHION
3418930921
€ 3.00
13
0915906076
ref: 13
NUT
0915906076
€ 3.00
14-1
3638019C00
ref: 14-1
BOX ASSEMBLY,PILOT LAMP
€ 133.00
14-2
3638019C10
ref: 14-2
E17,E22,E25,E34
BOX ASSY
3638019C10
€ 133.00
15
3638327A00
ref: 15
PLATE,TURN,R
3638327A00
€ 14.50
16
3638427A00
ref: 16
PLATE,TURN,L
3638427A00
€ 9.50
17
3419619C00
ref: 17
CUSHION
3419619C00
€ 19.00
18
3638227A00
ref: 18
PLATE,PILOT LAMP
3638227A00
€ 18.50
19
3645745100
ref: 19
SCREW
3645745100
€ 2.00
20
3419719C00
ref: 20
LOCK PLATE
€ 13.00
21
3417119C20
ref: 21
SOCKET
€ 85.00
22
0947112100
ref: 22
BULB(12V1.7W,WB372,T7)
0947112100
€ 2.00
23
0947112085
ref: 23
BULB(12V3W,WB371,T7)
0947112085
€ 3.00
24
0940714403
ref: 24
CLAMP(L:125)
0940714403
€ 2.50
25
3491019C01
ref: 25
CABLE ASSY,SPEEDOMETER
3491019C01
€ 27.50
26
3493845100
ref: 26
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
27
3493834C01
ref: 27
CLAMP,SPEEDOMETER CABLE
€ 4.50
28
0155006163
ref: 28
BOLT
0155006163
€ 2.50
29
0211205163
ref: 29
SCREW
0211205163
€ 2.00
30
0214205123
ref: 30
SCREW 5X12
0214205123
€ 1.50
27
3493834C01
ref: 27
CLAMP,SPEEDOMETER CABLE
€ 4.50
28-1
0155006167
ref: 28-1
MODEL K/L/M/N/P
BOLT
0155006167
€ 1.50
28-2
0155006163
ref: 28-2
MODEL R/S
BOLT
0155006163
€ 2.50
29-1
0211205164
ref: 29-1
MODEL K/L/M/N/P
SCREW
0211205164
€ 2.00
29-2
0211205163
ref: 29-2
MODEL R/S
SCREW
0211205163
€ 2.00
30-1
0214205124
ref: 30-1
MODEL K/L/M/N/P
SCREW, FRONT & REAR
€ 1.50
30-2
0214205123
ref: 30-2
MODEL R/S
SCREW 5X12
0214205123
€ 1.50
