FRONT FENDER

GSX600F 1998 (W) (E02 E04 E17 E22 E25 E34)

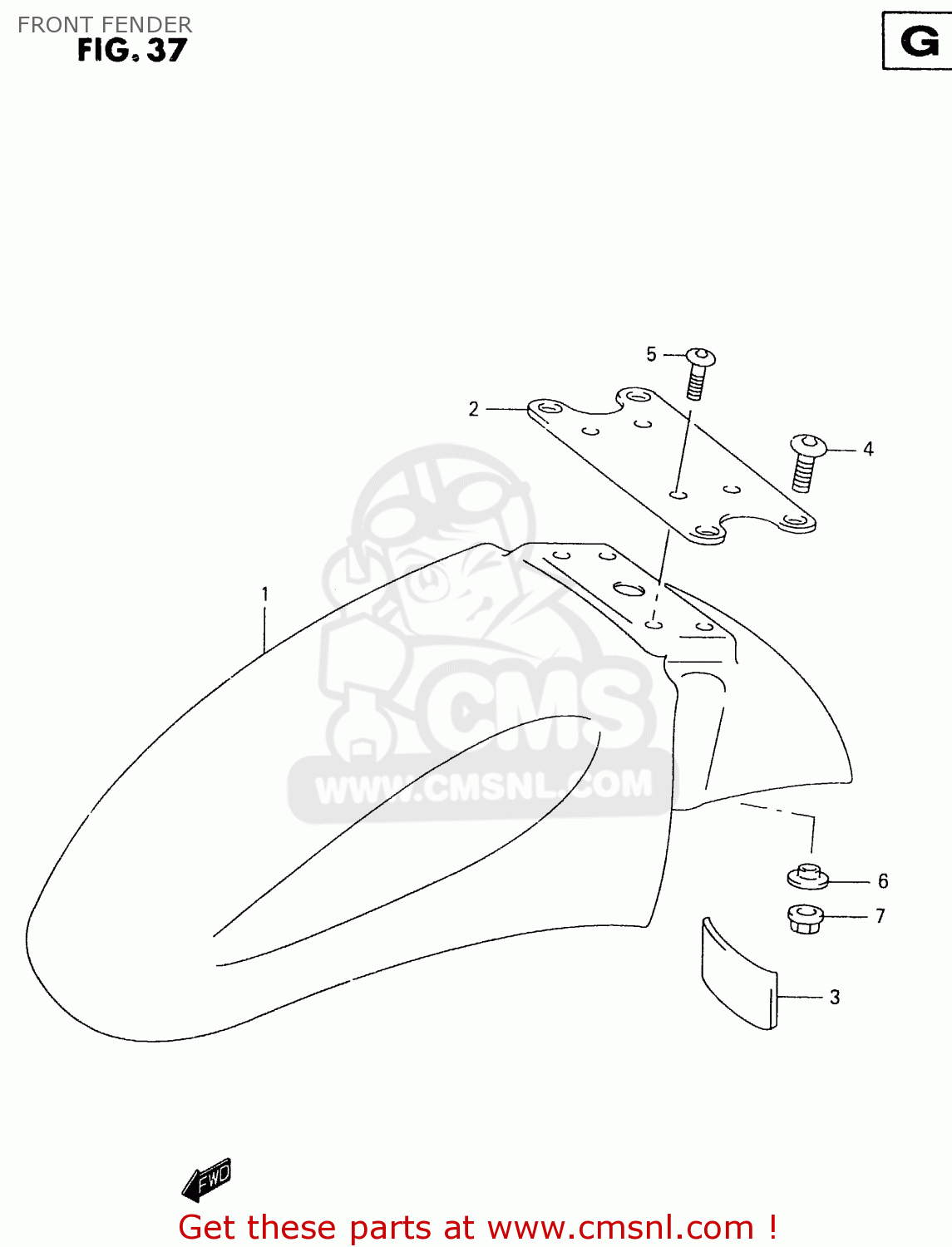

Front fender diagram GSX600F 1998 (W) (E02 E04 E17 E22 E25 E34)

FRONT FENDER GSX600F 1998 (W) (E02 E04 E17 E22 E25 E34)

FRONT FENDER GSX600F 1998 (W) (E02 E04 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

5311108F0028V
ref: 1-1

FENDER,FR

€ 142.50

1-2

5311108F00Y3G
ref: 1-2

FENDER,FR

€ 61.00

1-3

5311108F00Y4E
ref: 1-3

FENDER,FR

€ 144.00

2

5311426D00
ref: 2

BRACE,FR FENDER

€ 26.50

3

5314620C00
ref: 3

CUSHION

€ 4.50

4

0913906027
ref: 4

SCREW(6X12)

€ 3.00

5

0913905042
ref: 5

SCREW(5X16)

€ 2.50

6

0916905010
ref: 6

WASHER

€ 3.00

7

0915905026
ref: 7

NUT

€ 2.50
