HANDLE SWITCH

GSX600F 1998 (W) (E02 E04 E17 E22 E25 E34)

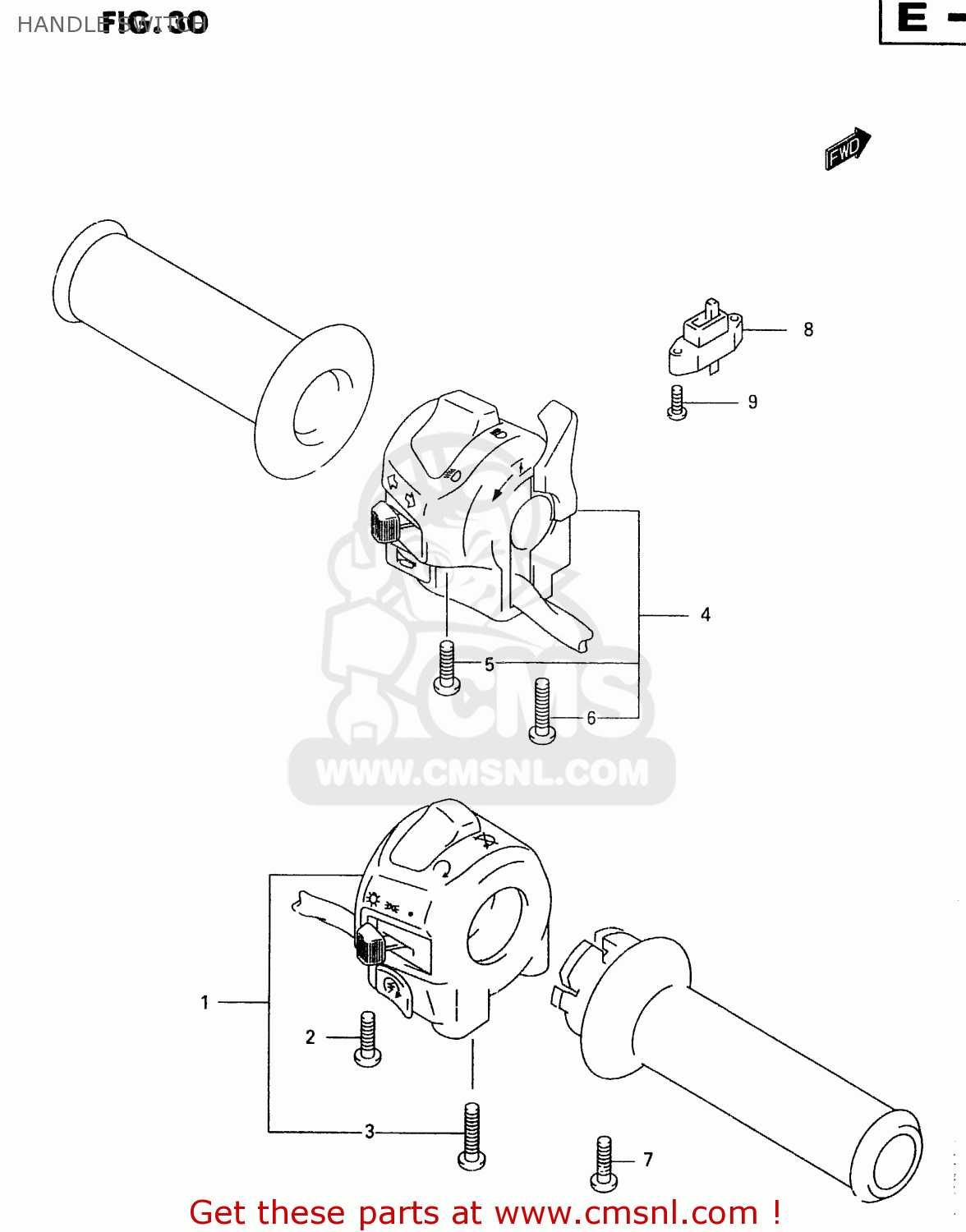

Handle switch diagram GSX600F 1998 (W) (E02 E04 E17 E22 E25 E34)

HANDLE SWITCH GSX600F 1998 (W) (E02 E04 E17 E22 E25 E34)

HANDLE SWITCH GSX600F 1998 (W) (E02 E04 E17 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3720033E11
ref: 1

SWITCH,HANDLE,

€ 174.50

2

0211205305
ref: 2

SCREW

€ 1.50

3

0211205505
ref: 3

SCREW

€ 2.00

4

3740026E10
ref: 4

SWITCH,HANDLE,

€ 230.00

5

0211205253
ref: 5

SCREW

€ 1.50

6

0211205453
ref: 6

SCREW

€ 4.00

7

0211205103
ref: 7

SCREW

€ 2.00

8

3756038A00
ref: 8

SWITCH ASSY,CLUTCH

€ 20.00

9

3756426E00
ref: 9

SCREW

€ 3.00
