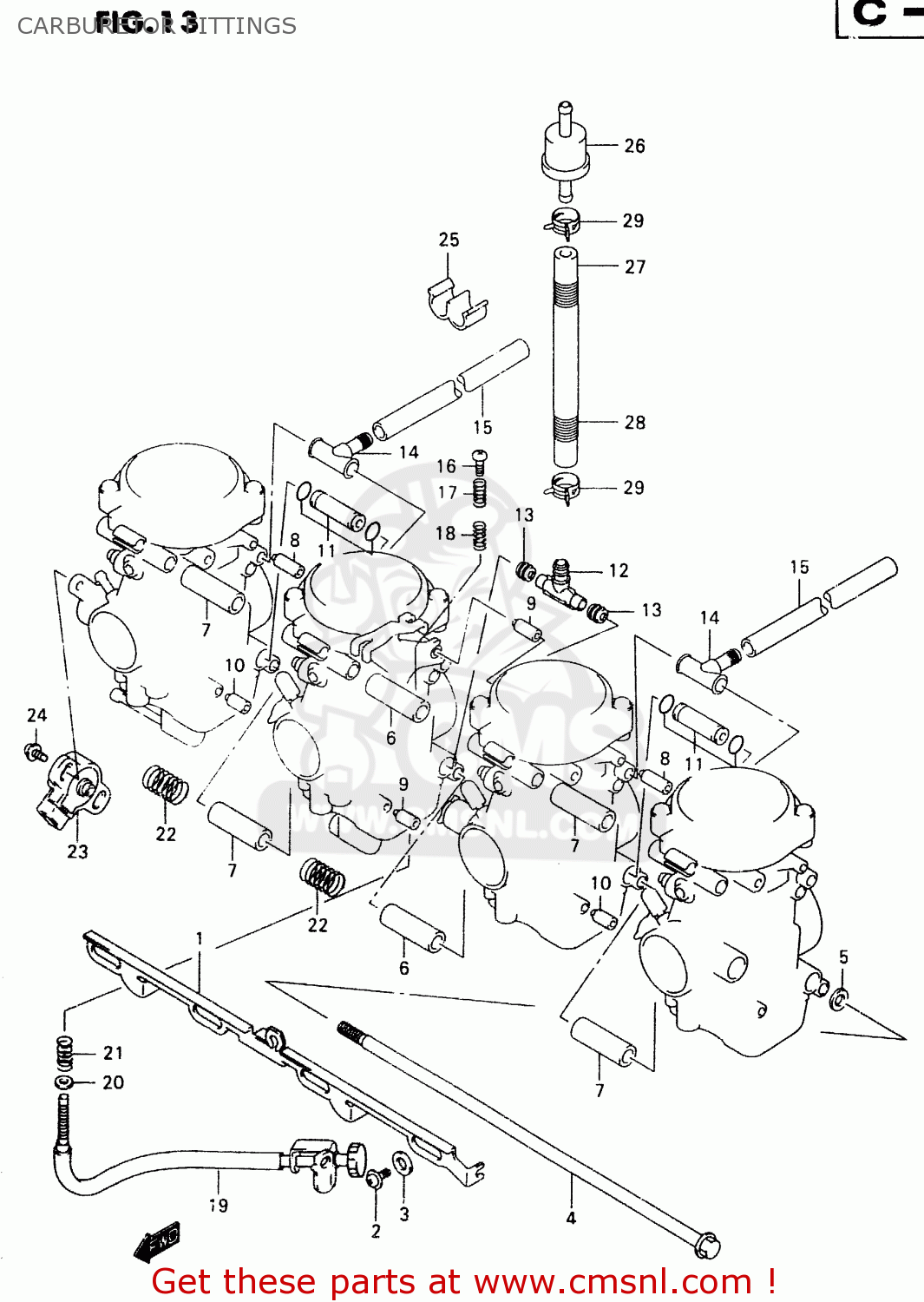

CARBURETOR FITTINGS

ref

part #

description

quantity

1

1341319E00
ref: 1

LEVER

€ 41.00

2

0214204083
ref: 2

SCREW

€ 1.50

3

1355733E00
ref: 3

PACKING

€ 3.00

4

1361233E00
ref: 4

BOLT

€ 18.00

5

0832201063
ref: 5

WASHER

€ 2.00

6

1368519E20
ref: 6

PIPE

€ 11.00

7

1368534E00
ref: 7

PIPE

€ 9.00

8

1368519E00
ref: 8

ROD

€ 8.00

9

1368519E10
ref: 9

ROD

€ 7.00

10

1368519E30
ref: 10

ROD

€ 7.00

11

1368531310
ref: 11

NIPPLE,CARBURETOR

€ 18.00

12

1368516E00
ref: 12

NIPPLE

€ 13.00

13

1367344B00
ref: 13

SEAL

€ 6.00

14

1368301DB0
ref: 14

HOSE

€ 15.00

15

1368319E00
ref: 15

HOSE

€ 22.00

16

1326744B00
ref: 16

SCREW

€ 3.50

17

1327144B00
ref: 17

SPRING

€ 4.00

18

1326896110
ref: 18

SPRING,THROTTLE SCREW

€ 4.50

19

1326719E00
ref: 19

SCREW,ADJUST

€ 82.50

20

1361543010
ref: 20

WASHER,STARTER SHAFT

€ 2.50

21

1327119E00
ref: 21

SPRING

€ 4.00

22

1357306C10
ref: 22

SPRING

€ 7.00

23

1355013D60
ref: 23

SENSOR ASSY,THROTTLE

€ 129.50

24

1360255A00
ref: 24

SCREW, SENSOR

€ 3.00

25

0940800100
ref: 25

CLIP

€ 2.00

26

1541019E00
ref: 26

STRAINER COMP,FUEL

€ 13.50

27

0935570125600
ref: 27
L:600->140

HOSE(7X12X600)

€ 26.00

28

0944014030
ref: 28

SPRING

€ 25.00

29

0940111407
ref: 29

CLIP

€ 2.50
