UNDER COWLING

GSX600F 2000 (Y)

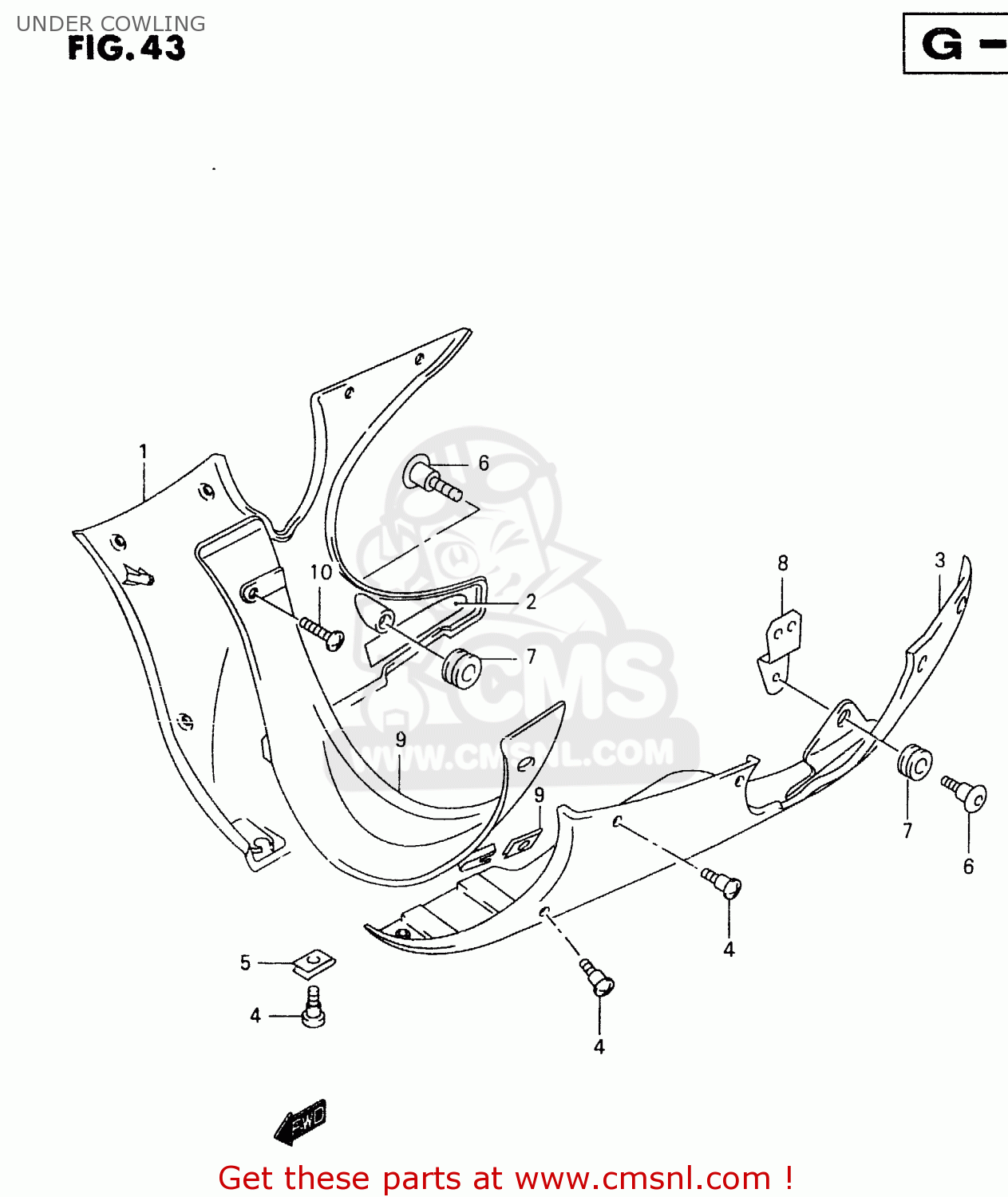

Under cowling diagram GSX600F 2000 (Y)

UNDER COWLING GSX600F 2000 (Y)

UNDER COWLING GSX600F 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

9447008F00Y4P
ref: 1

COWLING,UNDER,R(GRAY)

€ 737.50

2

9447208F00
ref: 2

SHIELD,COWLING UNDER,R NO.1

€ 9.00

3

9448108F00Y4P
ref: 3

COWLING,UNDER,L

€ 168.50

4

09139C5054
ref: 4

SCREW

€ 0.00

5

9448432B00
ref: 5

NUT,HEADLAMP HOUSING,UPPER

€ 4.00

6

0913906087
ref: 6

SCREW(6X20)

€ 4.00

7

0932009016
ref: 7

CUSHION

€ 2.50

8

9457008F00
ref: 8

BRACKET,UNDER COWL,L & FRAME

€ 7.00

9

9447508F00
ref: 9

COWLING,UNDER CTR

€ 54.00

10

0354105123
ref: 10

SCREW

€ 2.00
