REAR CALIPER (MODEL P/R/S/T)

GSX600F KATANA 1991 (M) USA (E03)

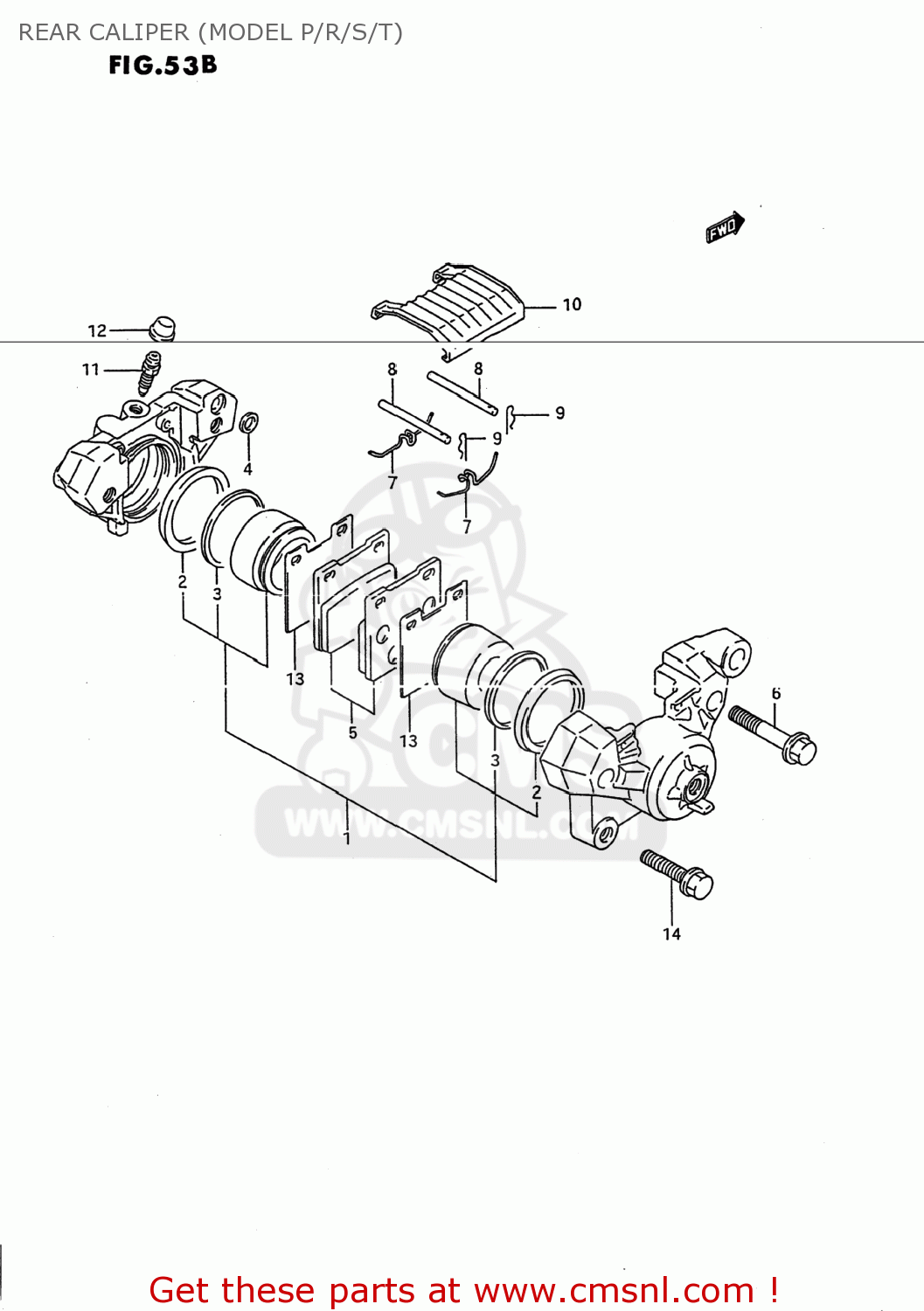

Rear caliper (model p/r/s/t) diagram GSX600F KATANA 1991 (M) USA (E03)

REAR CALIPER (MODEL P/R/S/T) GSX600F KATANA 1991 (M) USA (E03)

REAR CALIPER (MODEL P/R/S/T) GSX600F KATANA 1991 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity



6910034C03
ref:
69100-34C04

CALIPER ASSEMBLY,REAR

€ 548.00

1

6910032810
ref: 1
69100-05851

PISTON SET

€ 122.50

2

5910718410
ref: 2
69107-05CF0

SEAL,PISTON

€ 17.00

3

6910832B00
ref: 3

SEAL,WIPER

€ 26.50

4

6910734200
ref: 4

SEAL,JOINT

€ 12.00

5

6910034860
ref: 5

PAD SET (NAS)

€ 43.00

6-1

5914517C00
ref: 6-1

BOLT

€ 7.00

6-2

5914516700
ref: 6-2

BOLT,HOUSING

€ 8.00

7

5914316700
ref: 7

SPRING

€ 7.50

8

6914145000
ref: 8

PIN,PAD

€ 6.50

9

6914245000
ref: 9

CLIP,PAD PIN

€ 4.50

10

5915116701
ref: 10

COVER

€ 13.50

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5515666310
ref: 12

CAP,BLEEDER PLUG

€ 6.00

13

5937133410
ref: 13

SHIM,PAD

€ 15.00

14-1

0151708304
ref: 14-1
01550-0830A

BOLT

€ 3.00

14-2

0155008303
ref: 14-2
01550-0830A

BOLT

€ 3.00
