REAR CUSHION LEVER (MODEL J)

GSX600F KATANA 1991 (M) USA (E03)

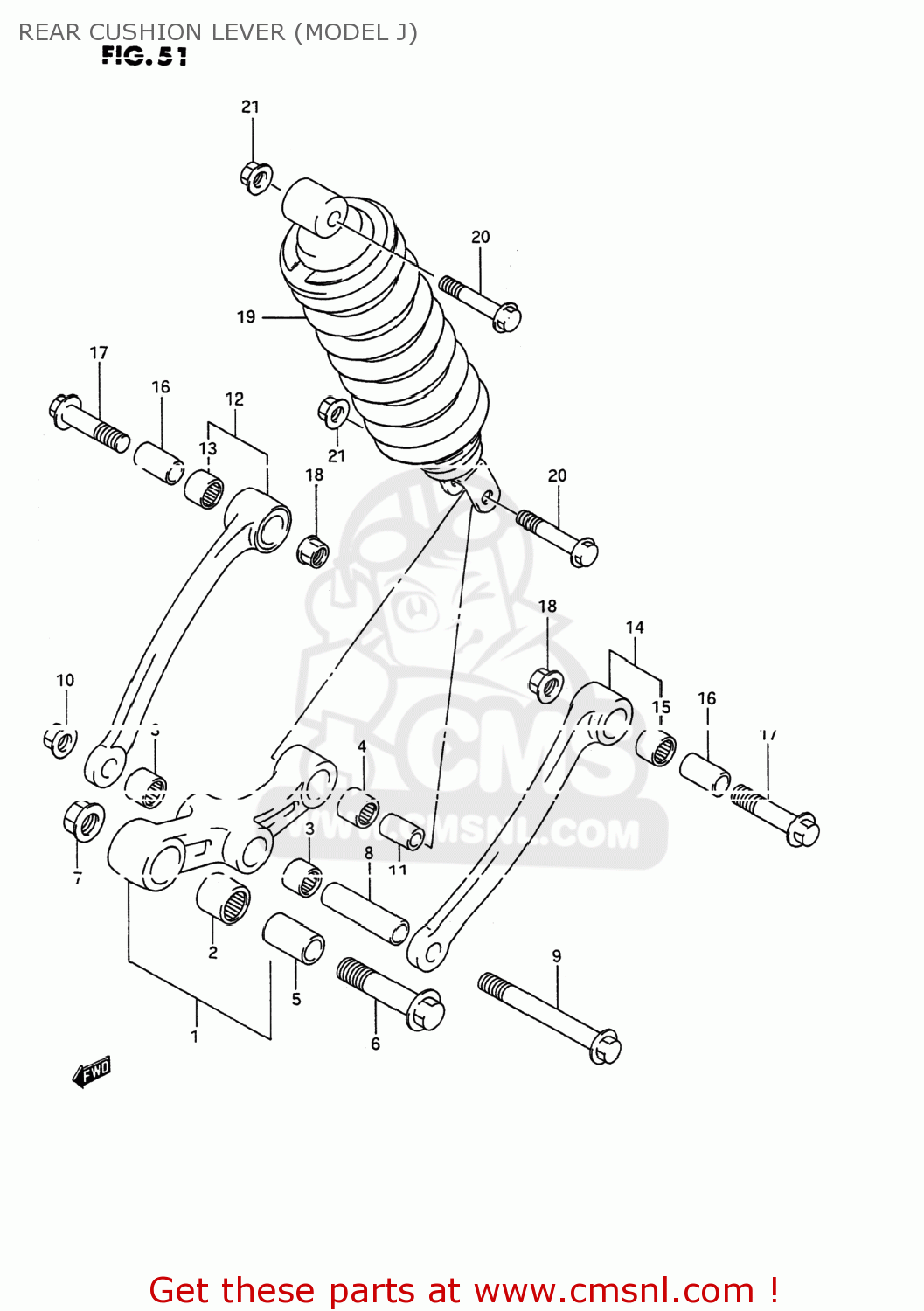

Rear cushion lever (model j) diagram GSX600F KATANA 1991 (M) USA (E03)

REAR CUSHION LEVER (MODEL J) GSX600F KATANA 1991 (M) USA (E03)

REAR CUSHION LEVER (MODEL J) GSX600F KATANA 1991 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6260019830
ref: 1

LEVER SET,RR CUSHION

€ 575.50

2

0926320070
ref: 2

BEARING(20X27X30)

€ 21.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

0918014014
ref: 5

SPACER(14X20X34)

€ 11.50

6

0910314012
ref: 6

BOLT(14X62)

€ 6.00

7

0831931145
ref: 7
08319-3114B

NUT 14MM

€ 9.00

8

0918012121
ref: 8

SPACER(12X17X60)

€ 12.00

9

0910312034
ref: 9

BOLT(12X96)

€ 6.00

10

0831931125
ref: 10
08319-3112B

NUT 12MM

€ 3.00

11

6268440A10
ref: 11

SPACER,RR CUSHION LEVER

€ 11.50

12

6260019840
ref: 12

ROD SET,RR CUSHION,R

€ 203.00

13

0926317034
ref: 13

BEARING(17X24X26)

€ 21.50

14

6260019850
ref: 14

ROD SET,RR CUSHION,L

€ 198.50

15

0926317034
ref: 15

BEARING(17X24X26)

€ 21.50

16

0918012120
ref: 16

SPACER(12X17X29)

€ 10.00

17

0910312035
ref: 17
09103-12035-XC0

BOLT L:52

€ 7.00

18

0831931125
ref: 18
08319-3112B

NUT 12MM

€ 3.00

19

6210019C00
ref: 19
62100-19C10

ABSORBER ASSEMBLY,REAR SHOCK

€ 600.00

20

0910310197
ref: 20

BOLT(10X52)

€ 5.00

21

0831931105
ref: 21
08319-3110A

NUT 10MM

€ 3.00
