FOOTREST
GSX600F KATANA 1993 (P) USA (E03)

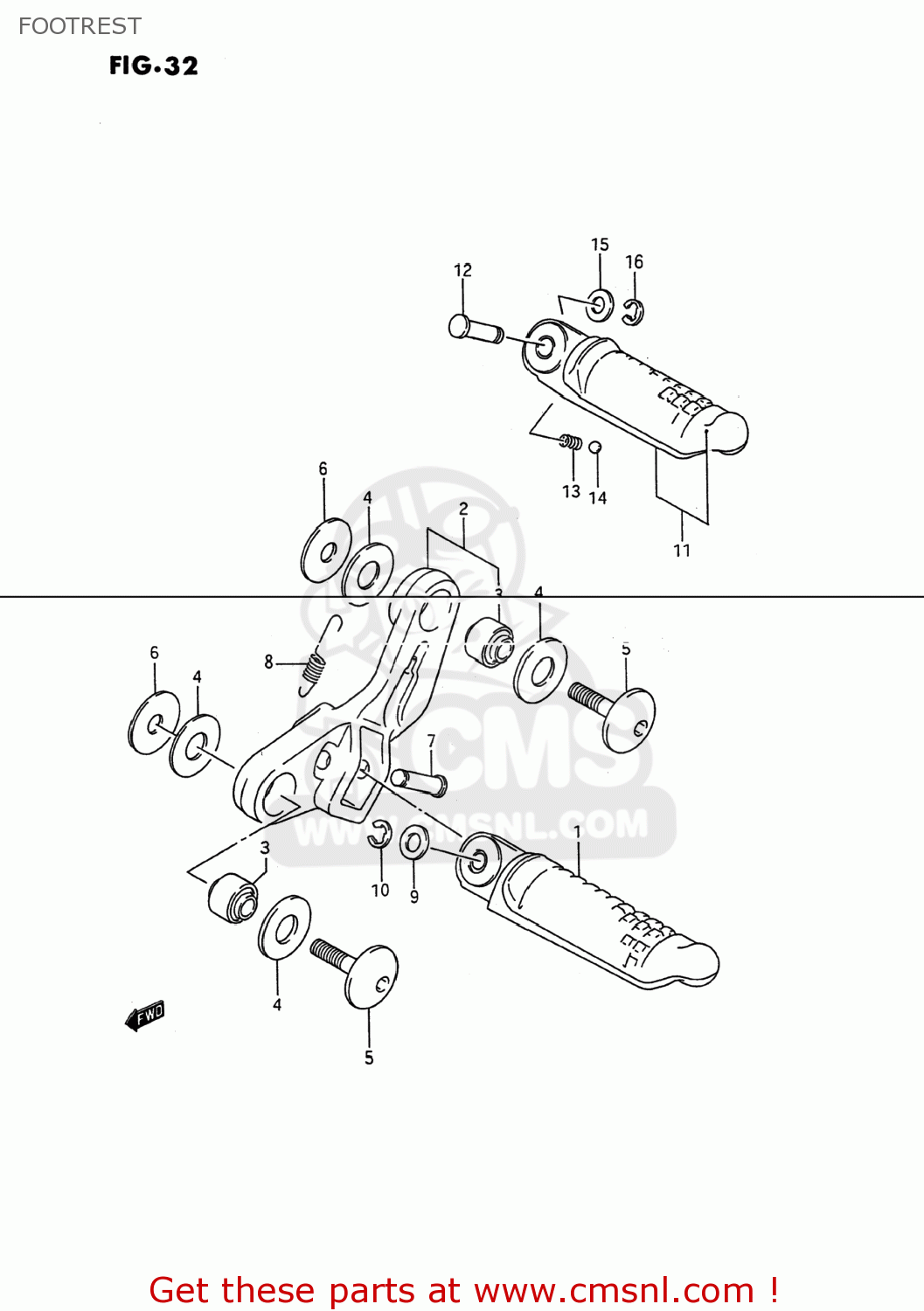

Footrest diagram GSX600F KATANA 1993 (P) USA (E03)
FOOTREST GSX600F KATANA 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351019C00
ref: 1-1
43510-19C02
BAR,FRONT FOOTREST
€ 64.50
1-2
4351019C01
ref: 1-2
43510-19C02
BAR,FRONT FOOTREST,RIGHT
€ 64.50
1-3
4352019C00
ref: 1-3
43520-19C02
BAR,FRONT FOOTREST,LEFT
€ 72.50
1-4
4352019C01
ref: 1-4
43520-19C02
BAR,FRONT FOOTREST,LEFT
€ 72.50
2-1
4353119C00
ref: 2-1
HOLDER,FR FOOTREST,R
€ 43.50
2-2
4354119C00
ref: 2-2
HOLDER,FR FOOTREST,L
€ 64.00
3
0931908033
ref: 3
BUSH(8.4X20X18)
€ 7.00
4
0916112006
ref: 4
WASHER(12.5X30X2)
€ 6.50
5
0910608079
ref: 5
BOLT(8X31)
€ 9.50
6-1
0916008104
ref: 6-1
09160-08503
WASHER (8.5X30X2.3)
€ 2.00
6-2
0916008503
ref: 6-2
WASHER(8.5X30X2.3)
€ 2.00
7
0920808010
ref: 7
PIN(8X33.2)
€ 3.00
8
0944308049
ref: 8
SPRING
€ 5.50
9-1
0832211084
ref: 9-1
08322-0108A
WASHER
€ 1.50
9-2
0832201083
ref: 9-2
08322-0108A
WASHER
€ 1.50
10-1
0833211066
ref: 10-1
08332-1106A
E RING
€ 2.00
10-2
0833211063
ref: 10-2
08332-1106A
E.RING
€ 2.00
11-1
4361019C00
ref: 11-1
BAR,PILLION FOOTREST,R
€ 65.50
11-2
4371019C00
ref: 11-2
BAR,PILLION FOOTREST,L
€ 58.00
11-3
4371020C00
ref: 11-3
43710-20C01
BAR,PILLION FOOTREST,LEFT
€ 52.50
12
0920808011
ref: 12
PIN
€ 3.00
13
0944005005
ref: 13
SPRING
€ 1.50
14
0611107004
ref: 14
BALL
€ 1.50
15-1
0832211084
ref: 15-1
08322-0108A
WASHER
€ 1.50
15-2
0832201083
ref: 15-2
08322-0108A
WASHER
€ 1.50
16-1
0833211069
ref: 16-1
E RING 6MM
€ 2.00
16-2
0833211063
ref: 16-2
08332-1106A
E.RING
€ 2.00
