MUFFLER
GSX600F KATANA 1993 (P) USA (E03)

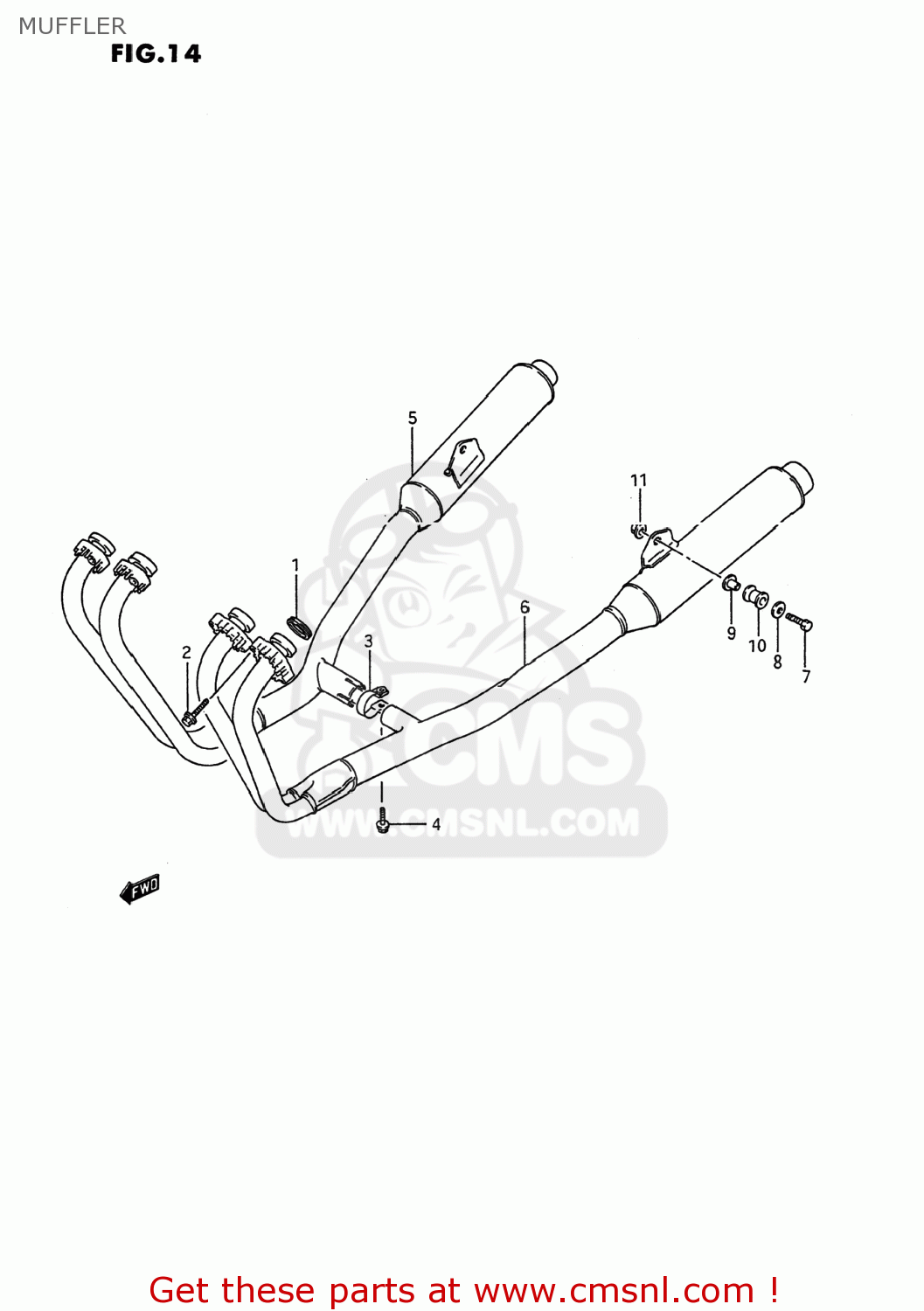

Muffler diagram GSX600F KATANA 1993 (P) USA (E03)
MUFFLER GSX600F KATANA 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1418105020
ref: 1-1
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
1-2
1418118C00
ref: 1-2
GASKET,EXHAUST (NAS)
€ 6.50
2-1
0712008355
ref: 2-1
07120-0835B
BOLT
€ 4.00
2-2
0712008353
ref: 2-2
07120-0835B
BOLT
€ 4.00
3
1477219C00
ref: 3
CLAMP,MUFFLER CONNECTOR
€ 6.50
4-1
0151706254
ref: 4-1
01550-0625A
BOLT
€ 2.50
4-2
0155006253
ref: 4-2
01550-0625A
BOLT
€ 2.50
5-1
1430519C00H01
ref: 5-1
14305-19C21-H01
MUFFLER ASSEMBLY
€ 636.50
5-2
1430543C00H01
ref: 5-2
14305-43C01-H01
MUFFLER ASSEMBLY
€ 543.00
5-3
1430544C00
ref: 5-3
MUFFLER ASSY,RH
€ 382.50
5-4
1430544C32
ref: 5-4
MUFFLER R.
€ 382.50
5-5
1430544C33
ref: 5-5
MUFFLER R.
€ 382.50
5-6
1430544C34H01
ref: 5-6
14305-44C35-H01
MUFFLER ASSEMBLY,RIGHT
€ 382.50
6-1
1430619C00H01
ref: 6-1
14306-19C21-H01
MUFFLER COMP,LEFT (2 IN 1)
€ 271.50
6-2
1430643C00H01
ref: 6-2
14306-43C22-H01
MUFFLER ASSEMBLY
€ 456.00
6-3
1430644C00
ref: 6-3
MUFFLER ASSY,LH
€ 368.00
6-4
1430644C32
ref: 6-4
MUFFLER,L
€ 368.00
6-5
1430644C33
ref: 6-5
MUFFLER ASSEMBLY,LEFT
€ 368.00
6-6
1430644C34H01
ref: 6-6
14306-44C35-H01
MUFFLER ASSEMBLY,LEFT
€ 368.00
7-1
0910308225
ref: 7-1
09103-08256
BOLT
€ 6.00
7-2
0910308256
ref: 7-2
BOLT(8X40)
€ 6.00
8-1
0916008057
ref: 8-1
09160-08135
WASHER (8.5X20X1.6)
€ 2.00
8-2
0916008106
ref: 8-2
09160-08146
WASHER (8.1X33X1.6)
€ 3.00
9
0918008152
ref: 9
SPACER(8.6X12X24.2)
€ 6.00
10
0932012048
ref: 10
CUSHION
€ 5.00
11-1
0831626085
ref: 11-1
08316-2008A
NUT M8
€ 1.50
11-2
0831620083
ref: 11-2
08316-2008A
NUT
€ 1.50
