REAR CALIPER

GSX600F KATANA 1998 (W) USA (E03)

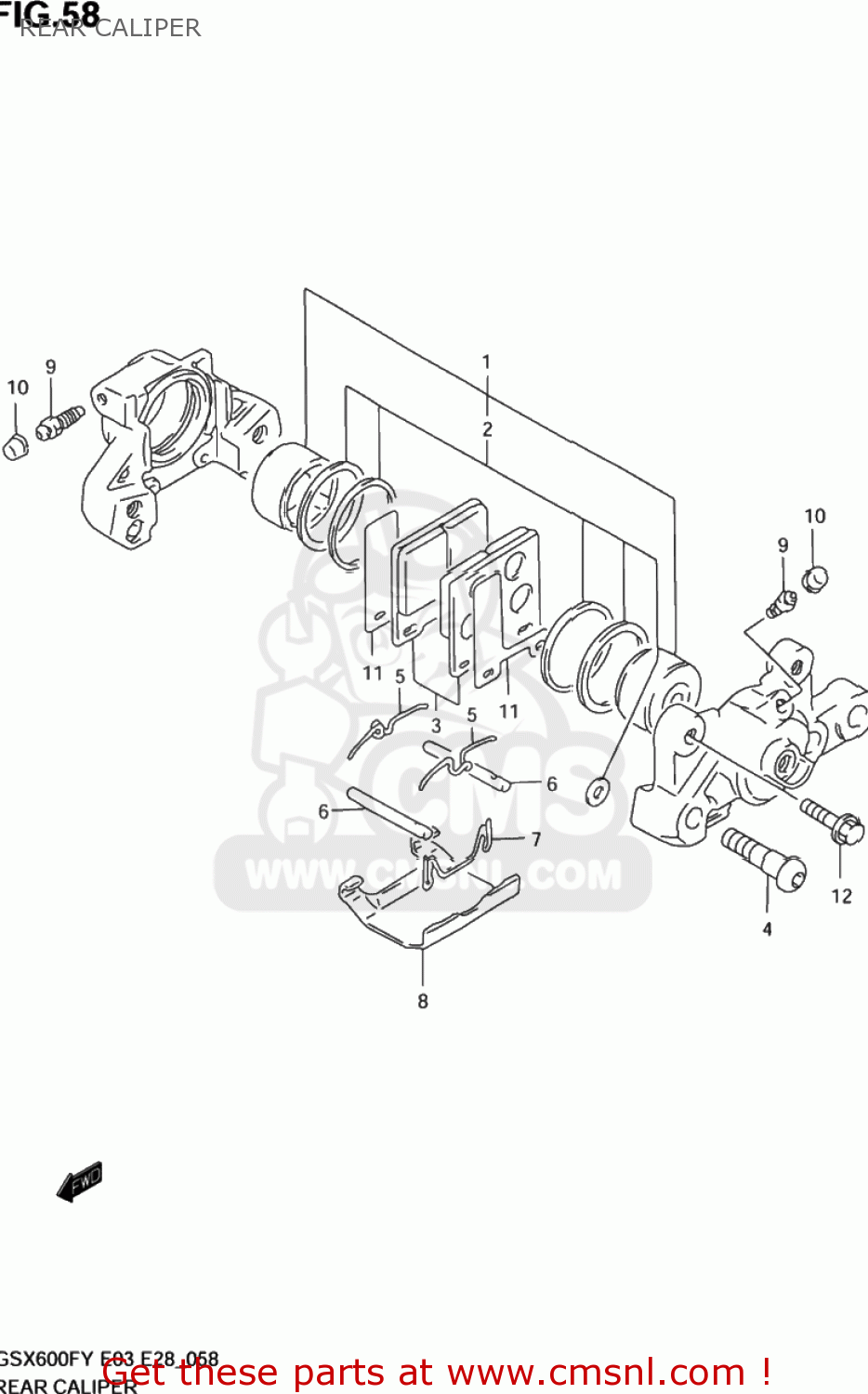

Rear caliper diagram GSX600F KATANA 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

6910005C90
ref:
69100-05CG0-999

CALIPER ASSEMBLY,REAR

€ 770.50

6910005850
ref: 1
69100-05851

PISTON SET

€ 122.50

6910032820
ref: 2
69101-05840

SEAL SET,PISTON

€ 26.00

6910005870
ref: 3
69102-05820

PAD SET (NAS)

€ 64.00

5914505C50
ref: 4

BOLT,HOUSING

€ 9.50

5914316700
ref: 5

SPRING

€ 7.50

6914146E01
ref: 6

PIN,PAD

€ 9.00

6914246E01
ref: 7

CLIP,PAD PIN

€ 14.00

5915116701
ref: 8

COVER

€ 13.50

5912118410
ref: 9

BLEEDER

€ 8.00

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

5937133420
ref: 11

SHIM

€ 14.00

0155008303
ref: 12
01550-0830A

BOLT

€ 3.00
